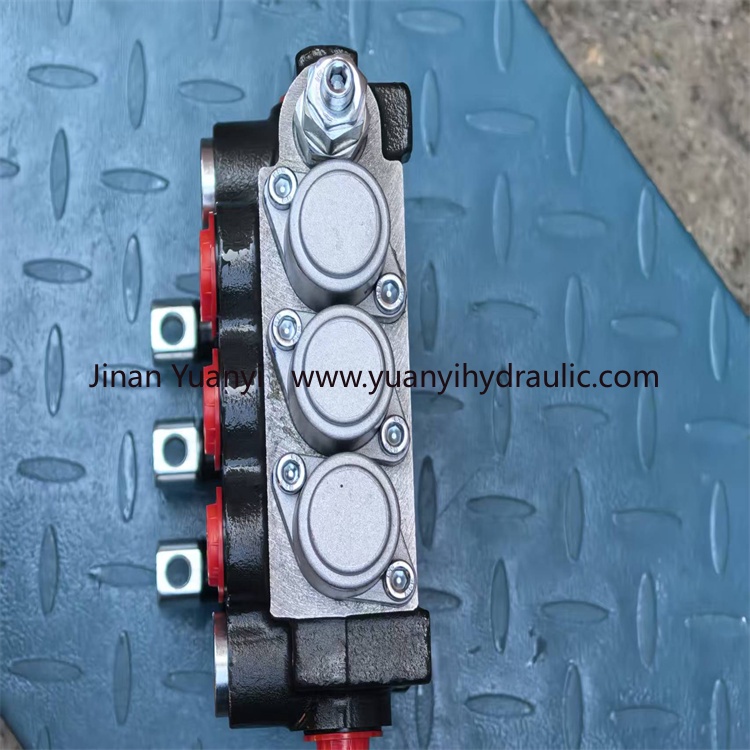

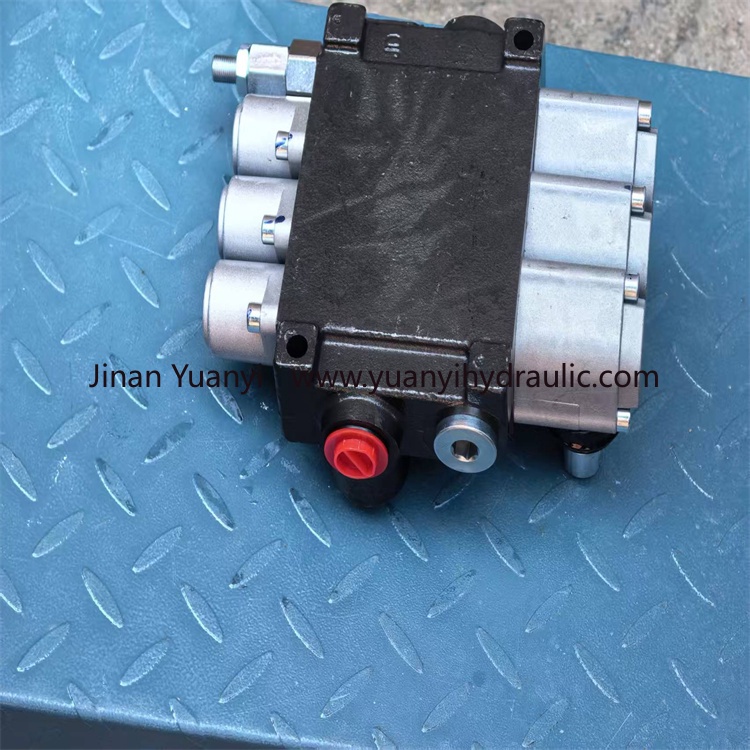

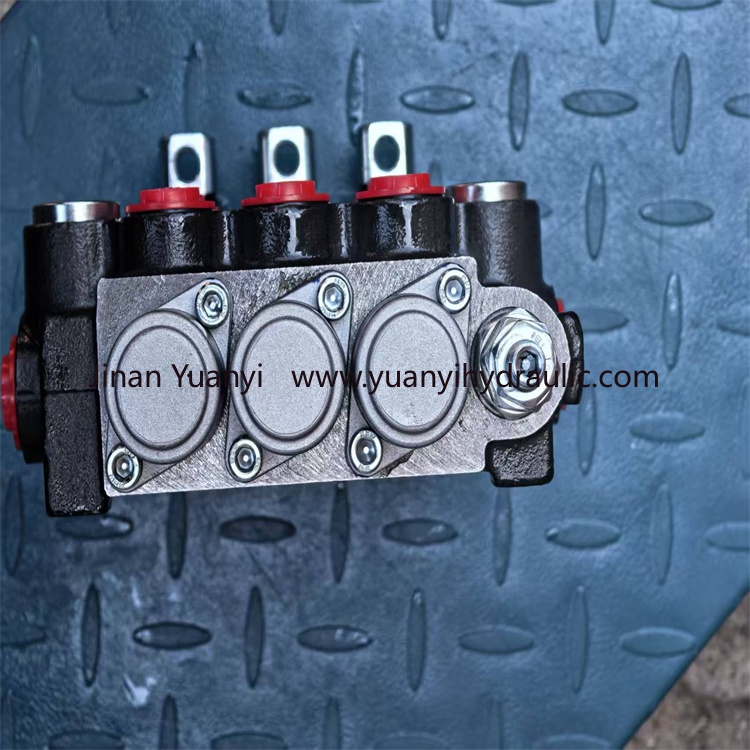

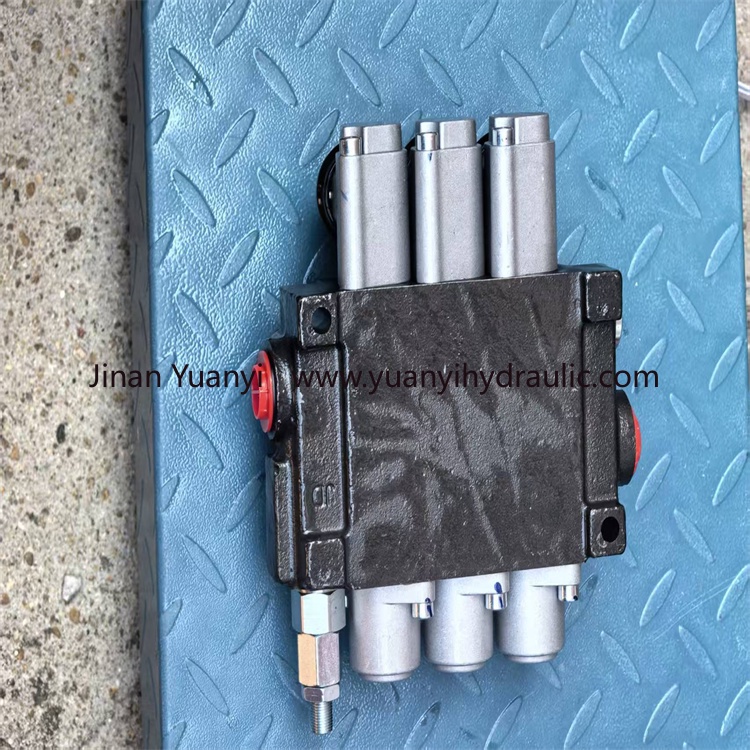

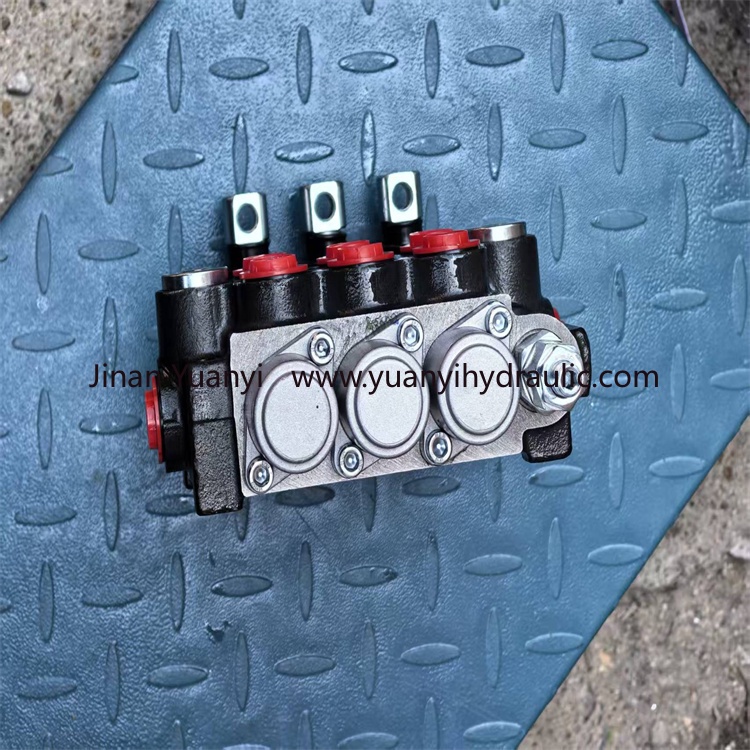

MPC70.4 Hydraulic Control Valve,MPC70.4 Distributor,МРС70.4/1.РМ.111, МРС70.4/1.РМ.113, 1 Valve

MPC70.4 Hydraulic Distributor

Distributor type Sectional, open center

Nominal passage: 12 mm

Consumption of working fluid, l/min: Rated 70   Maximum 90

Relief valve type: Indirect action

Working pressure, MPa: Rated 20  Max 25

Number of spools: Dependent on the number of sections from 1 to 10

Spool positions Raise, Neutral, Lower, Float

Spool control Mechanical (lever)

Weight, kg 4.1+N x 3.3

Application

The hydraulic directional control valve is widely used for hydraulic systems of agriculture machinery, forklifts, sanitation trucks,

transport machinery, lifting & handing equipment, construction machinery, etc.

Designed for pumping working fluid (mineral oil) in hydraulic systems of tractors, combines, cars,loaders, graders, pavers,

as well as in any other agricultural(Crawler agricultural tractors, Forestry tractors), road building(Powerful crawler dozers,

pipelayers, wheel loaders, wheel dozers, Crawler loaders and backhoe loaders), logging and any other machinery where

hydraulics are used.

Application

The hydraulic directional control valve is widely used in hydraulic systems of agriculture machinery, forklifts, sanitation trucks,

transport machinery, lifting & handing equipment, construction machinery, etc.

MPC designed to change the direction of the flow of the working fluid and protect against overloads in the hydraulic systems

 of tractors, agricultural, construction, municipal, road machines and other mobile equipment.
