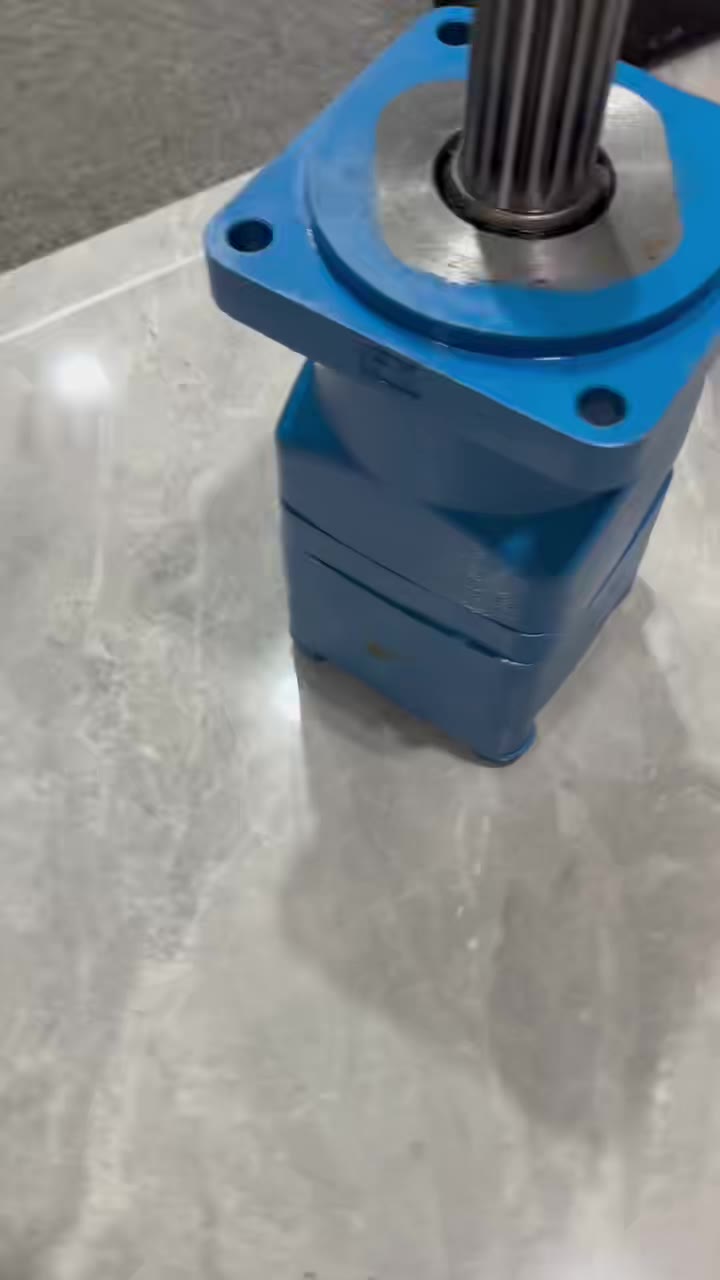

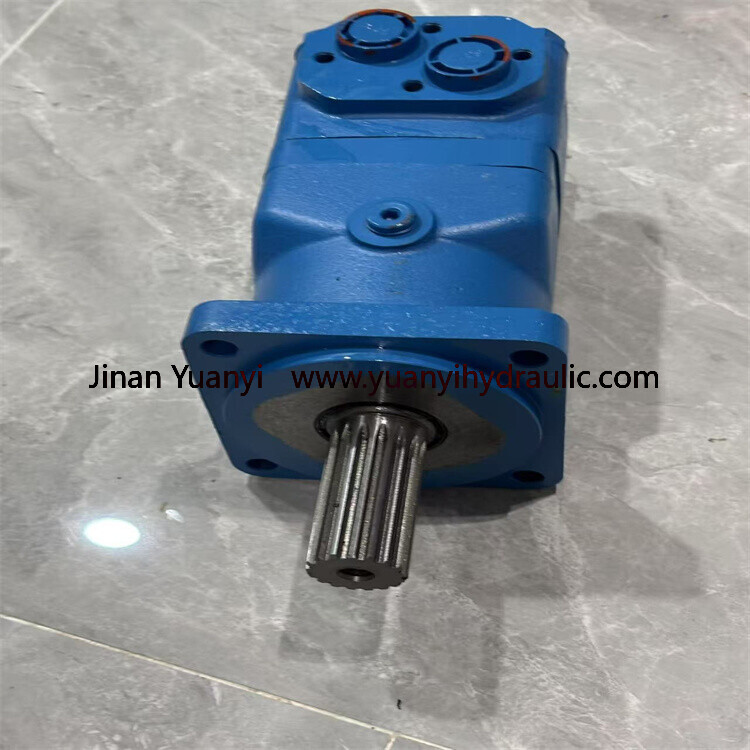

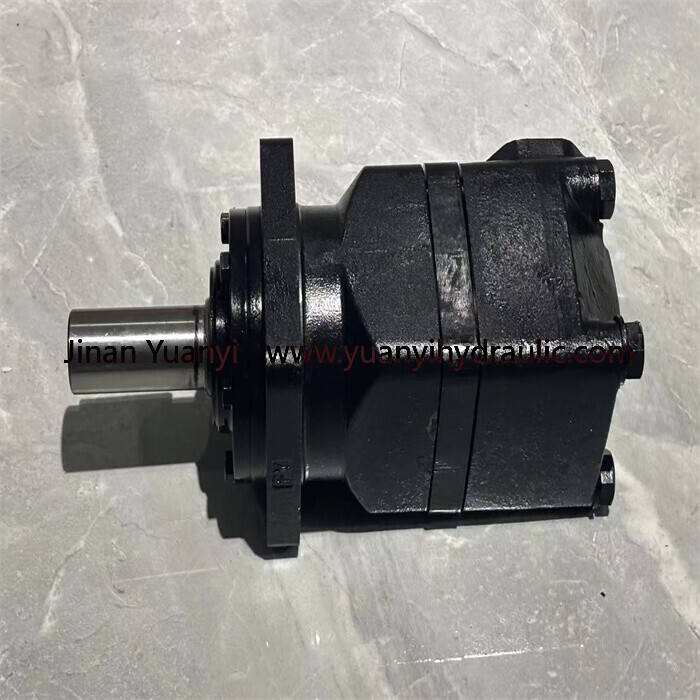

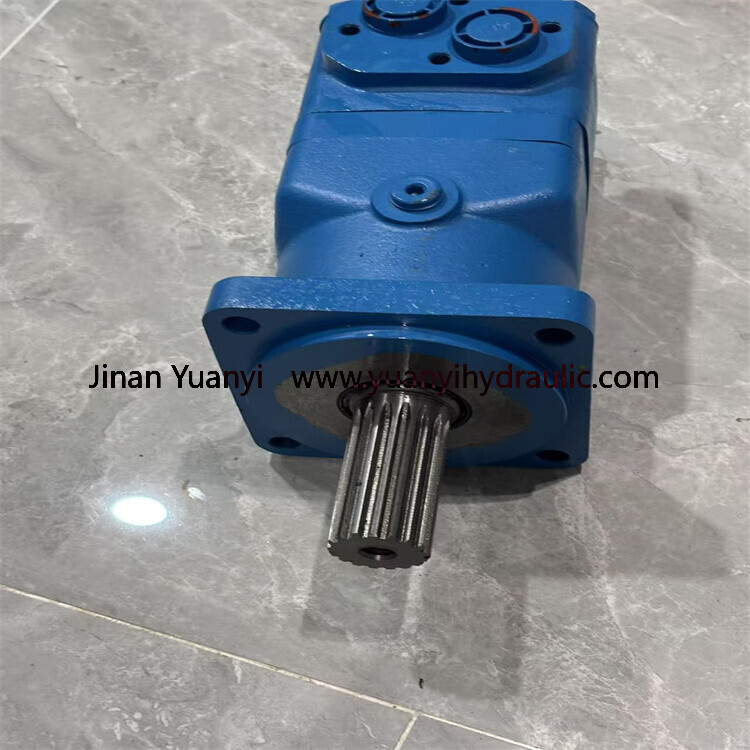

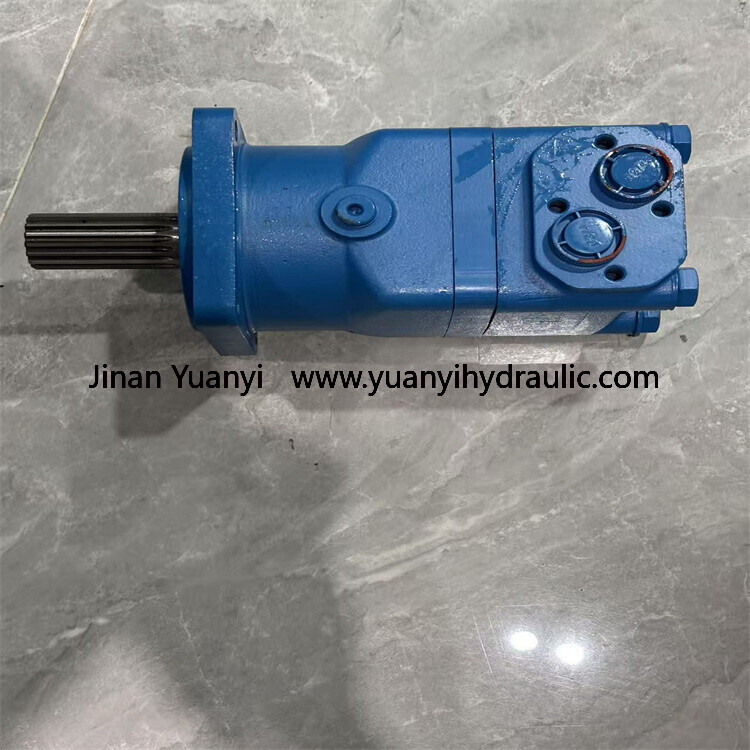

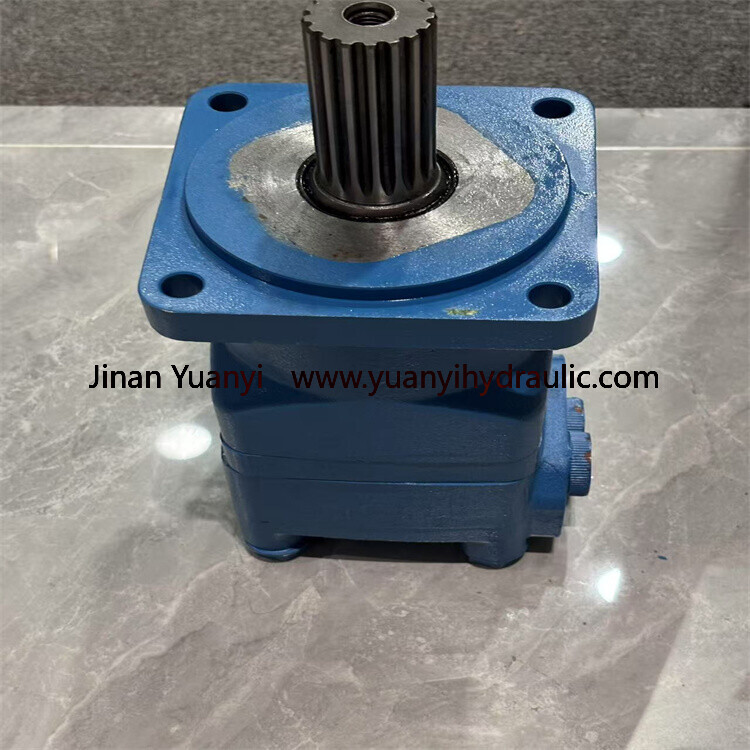

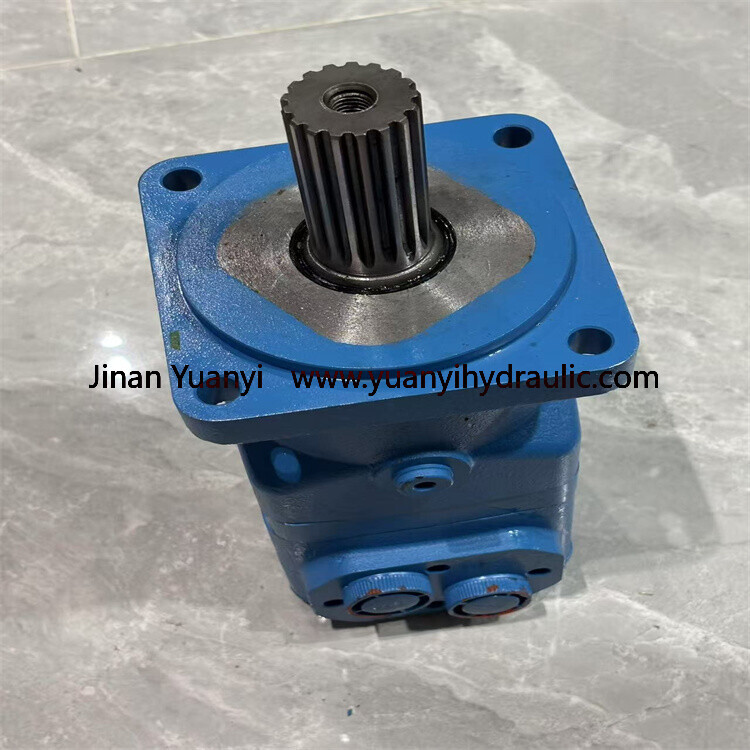

BMT Series Orbital Hydraulic Motor,BMT160 BMT200 BMT230 BMT250 BMT315 BMT400 BMT500 BMT630 BMT800 Orbital Motor,BMT series orbital hydraulic motor is an advanced hydraulic motor with end-face flow distribution structure

motors use a column-mounted rotating stator pair, which has the characteristics of high working pressure, high working efficiency,

good efficiency retention of the whole machine and long working life. On the basis of standard structure, multi-functional

 variant design can be carried out according to user requirements. Its characteristics:

• The use of advanced stator parameter design, low starting pressure, high efficiency and good retention.

• High working pressure and large output torque. Tapered roller bearing structure, bearing shaft, radial load capacity is strong,

so that the motor can directly drive the working mechanism, the scope of use is expanded.

• Advanced end face flow distribution structure, so that the motor with high precision, wear after the automatic

compensation function is strong, to ensure high volumetric efficiency, motor long life, to ensure that the motor

speed is stable, smooth load speed characteristics.
