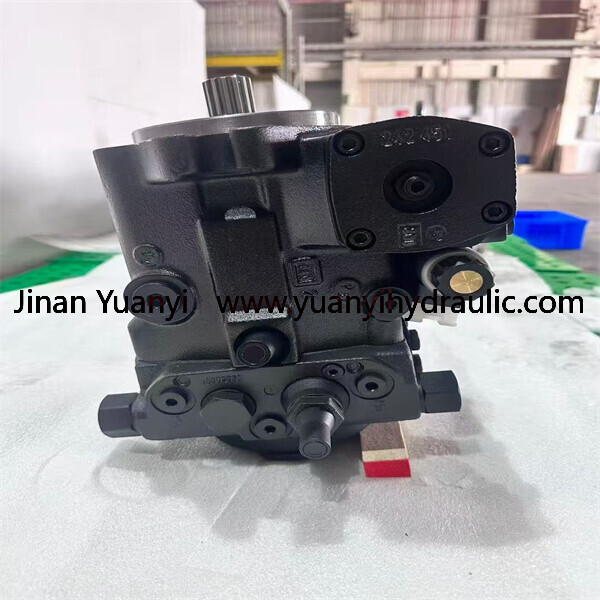

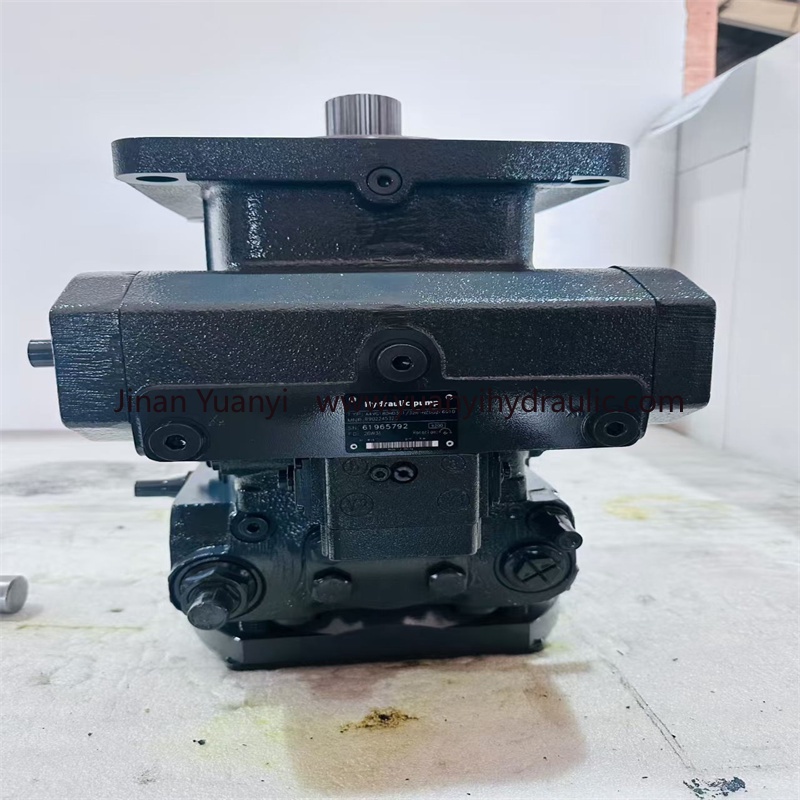

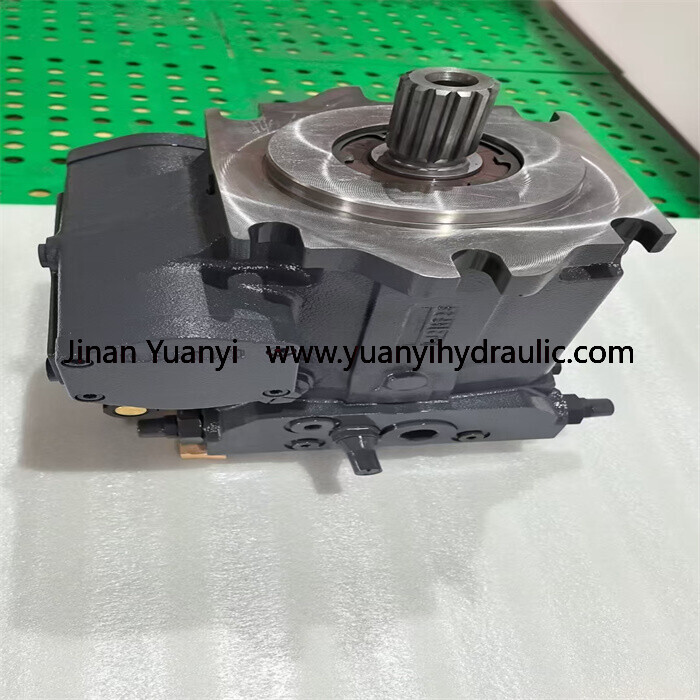

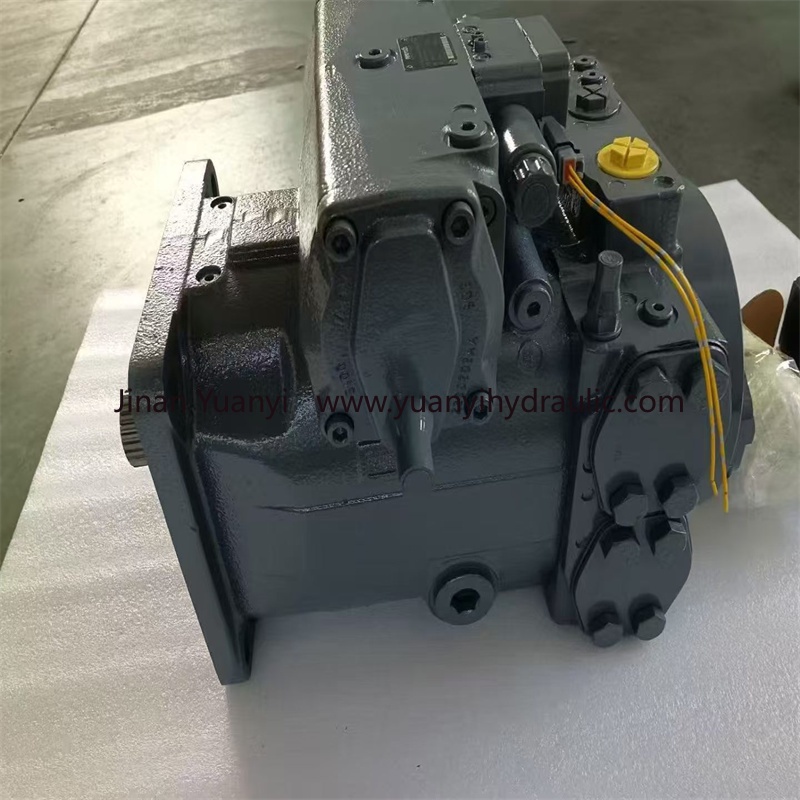

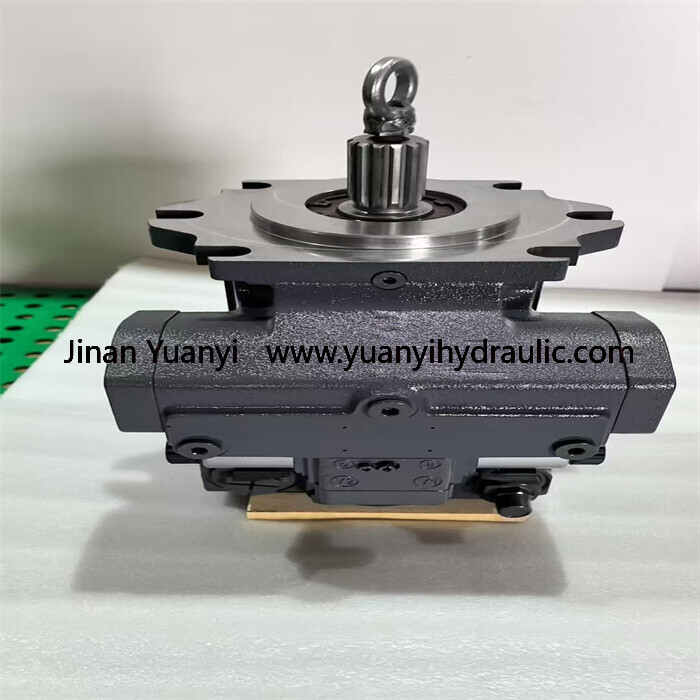

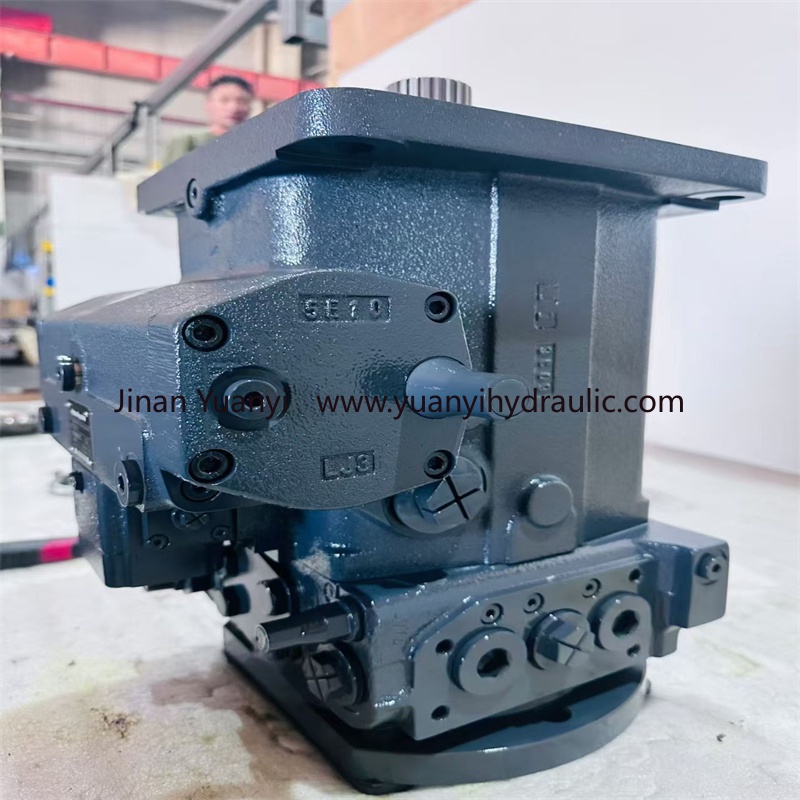

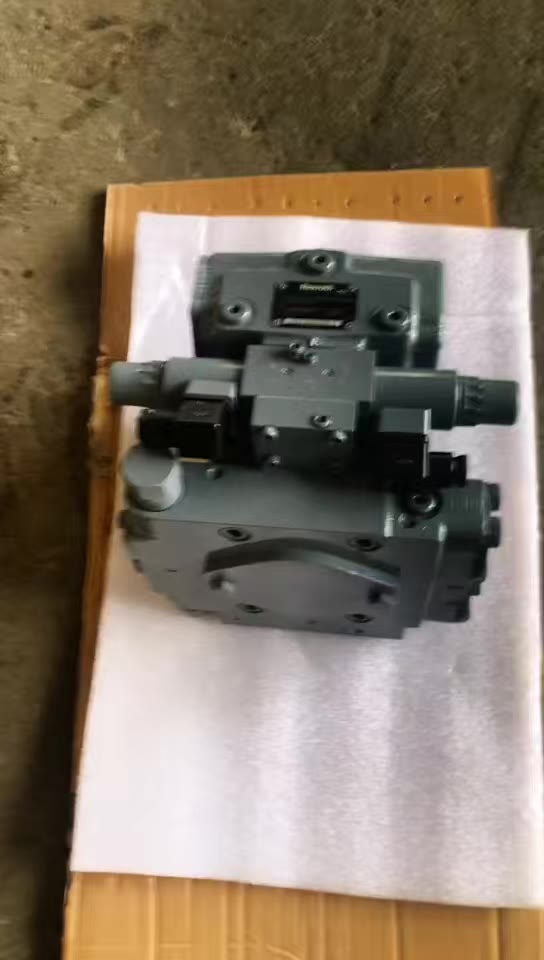

Name: A4vg28 A4vg40 A4vg56 A4vg71 A4vg90 A4vg125 A4vg180 A4VG250 Axial Piston Variable Hydraulic Piston Pump
SKU: 0



A4vg28 A4vg40 A4vg56 A4vg71 A4vg90 A4vg125 A4vg180 A4VG250 Axial Piston Variable Hydraulic Piston Pump

Product Description

A4vg28 A4vg40 A4vg56 A4vg71 A4vg90 A4vg125 A4vg180 A4VG250 Axial Piston Variable Hydraulic Piston Pump

Size				28	40	56	71	90	125
Displacement geometric, per revolution		Vg max	cm³	28	40	56	71	90	125
Nominal pressure		pnom	bar	400	400	400	400	400	400
Maximum pressure		pmax	bar	450	450	450	450	450	450
Maximum speed	at Vg max	nnom	rpm	4250	4000	3600	3300	3050	2850
Maximum speed	Intermittent 1)	nmax	rpm	5000	5000	4500	4100	3800	3450
Flow	at Vg max and nnom	qV nom	l/min	119	160	202	234	275	356
Power	at qV nom and Δpnom2)	P	kW	79	107	134	156	183	238
Torque	at Vg max and Δpnom	M	Nm	178	255	357	452	573	796
Weight (approx.)		m	kg	29	31	38	50	60	80
