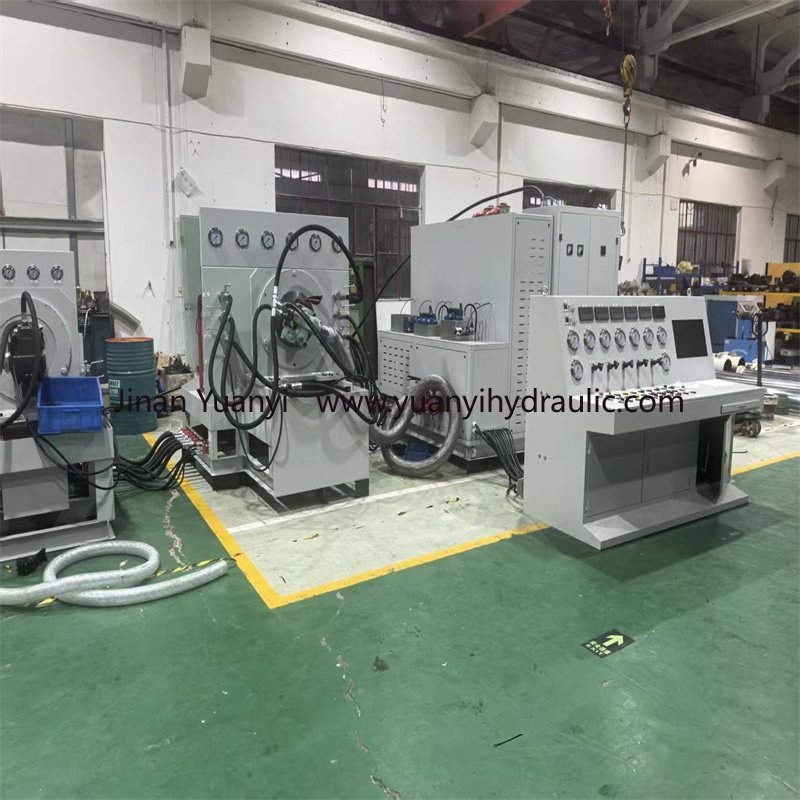

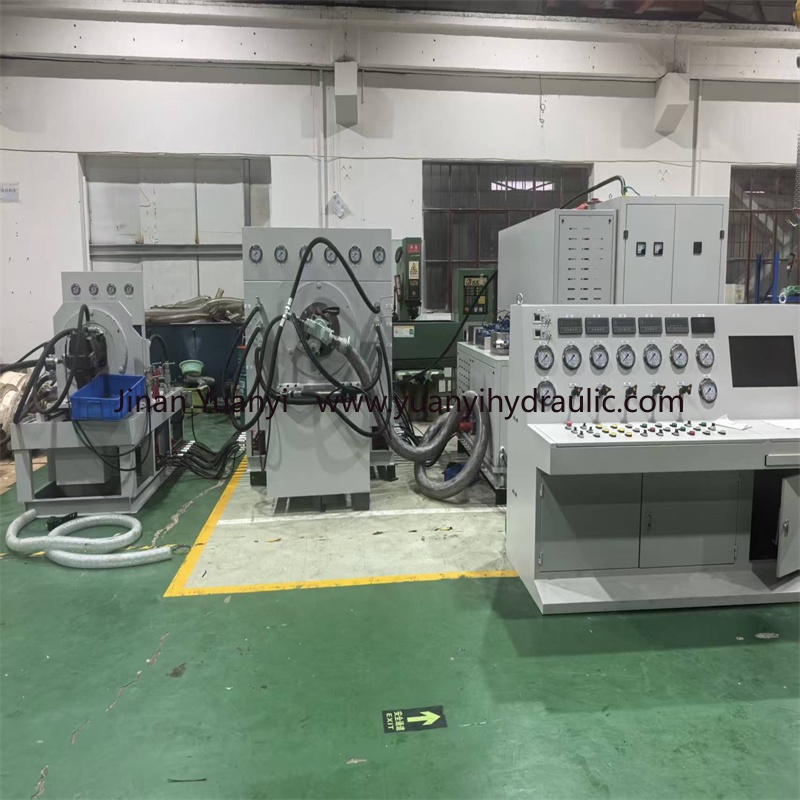

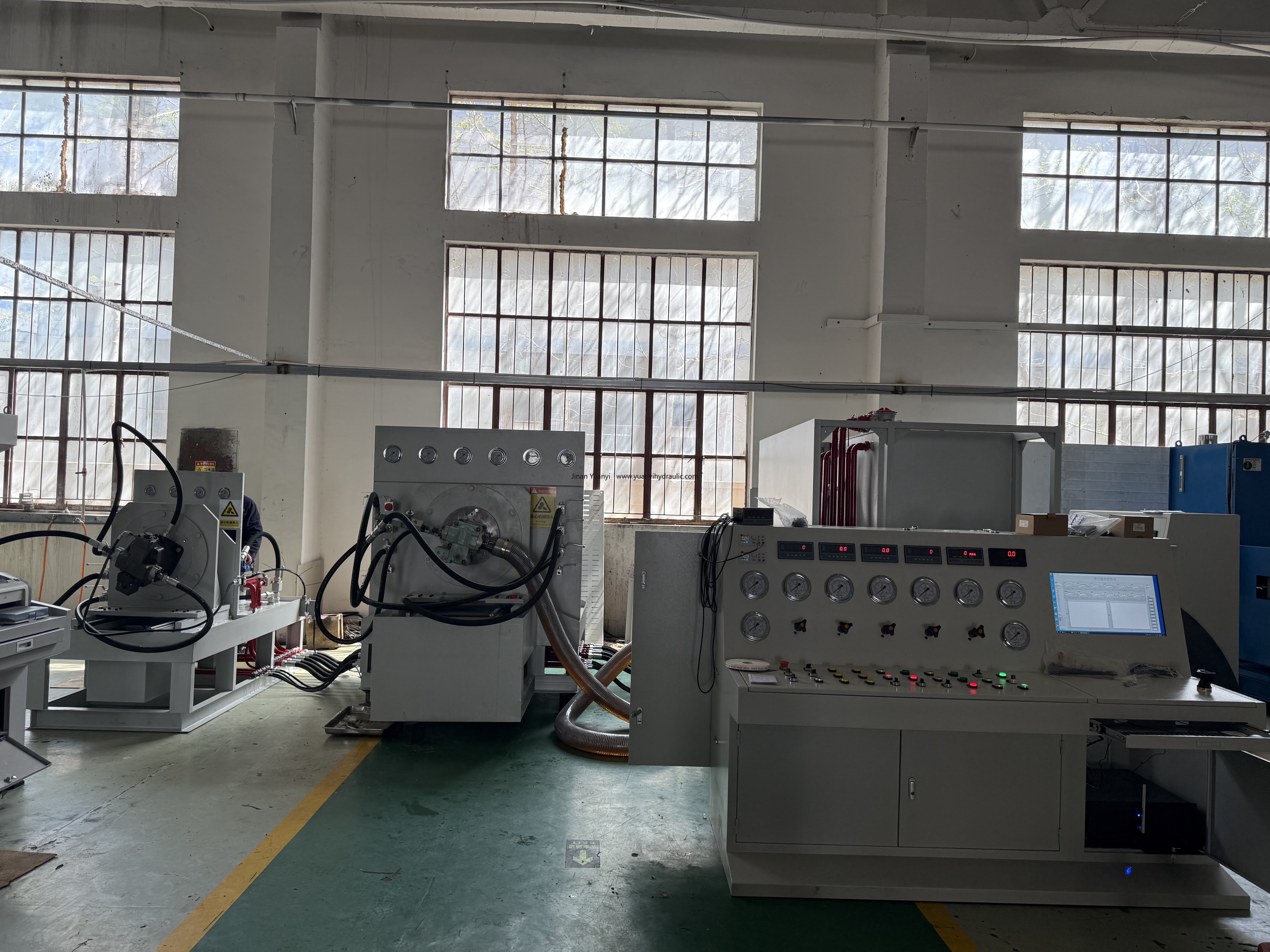

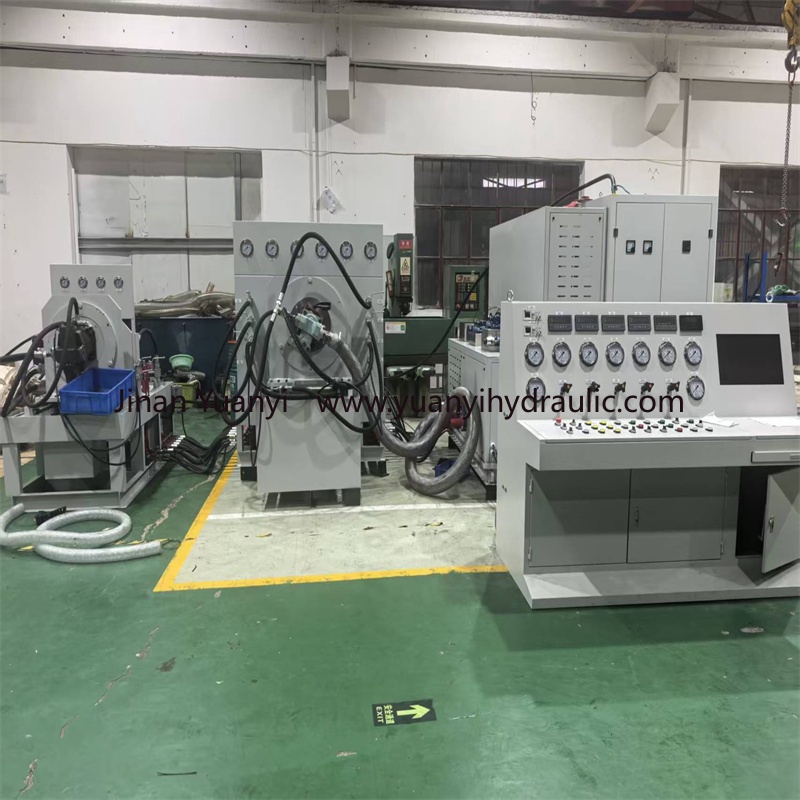

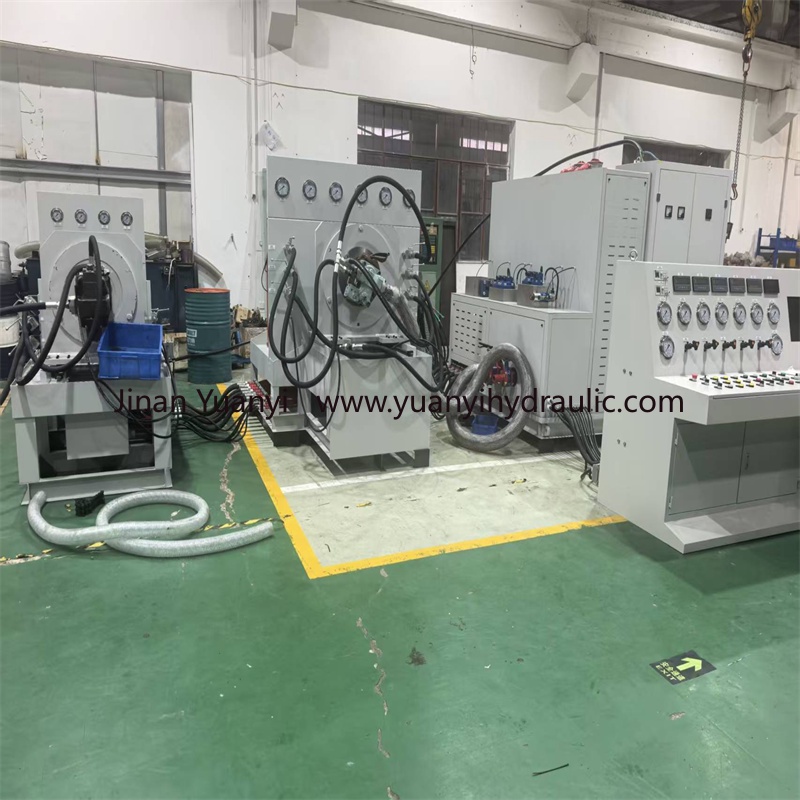

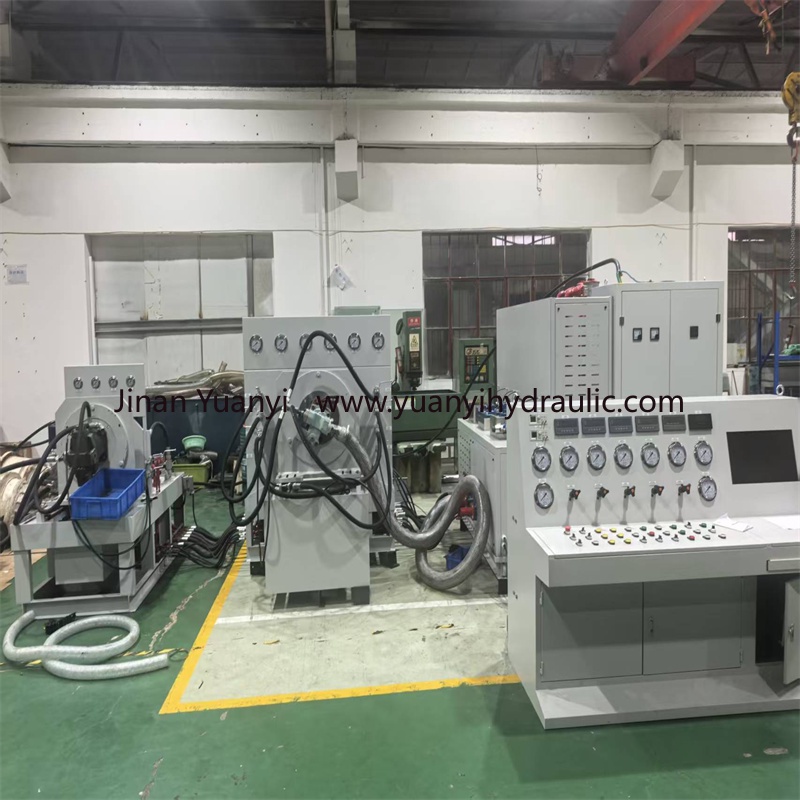

110KW Power Hydraulic Comprehensive Test Bench, Hydraulic Motor Test Table,Manual loading; computer display; frequencyconversion and speed control, experimental curve,report printing

1 Main technical indicators: power

110KW+22KW+7.5KW+0.75=140KW

Maximum pressure: 35MP; Main system flow rate:

400L+400L

Hydraulic pump experimental speed: 0--1500r/min

Return oil flow rate: 100L

3.2 Functional configuration and parameters of the

test bench:

3, 2, 0 Functions: The hydraulic comprehensive test

bench can test the following components:

Main tests: single and double hydraulic pumps; open

and closed hydraulic pumps; low-speed hydraulic

motors; high-speed hydraulic motors, cylinder test
