P40 Series 40L/min 1-7 Levers Monoblock Manual Directional Control Hydraulic Valve

P40 Series 40L/min 1-7 Levers Monoblock Manual Directional Control Hydraulic Valve

Product Description

P40 Series 40L/min 1-7 Levers Monoblock Manual Directional Control Hydraulic Valve

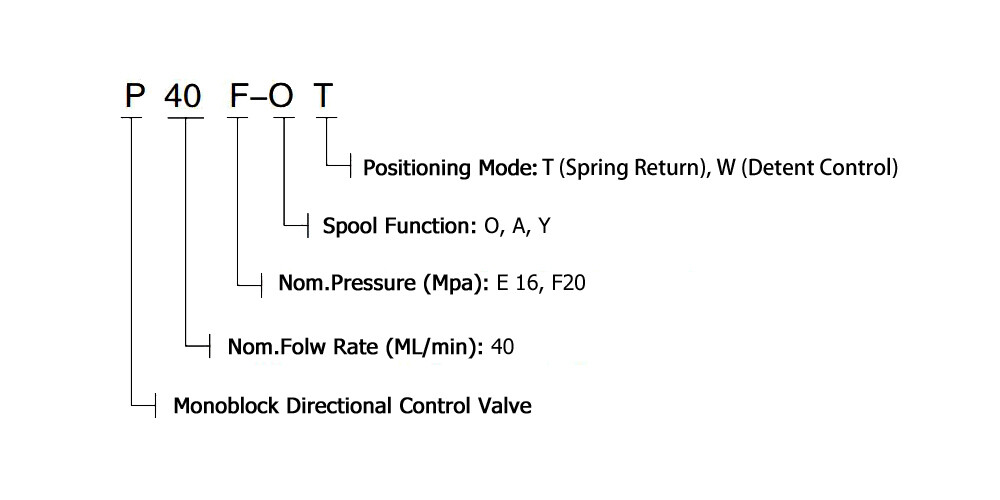

RODUCT SPECIFICATIONS

P40 Series Monoblock Directional Control Valves Dimensional Data

* P40 series valves with middle-high pressure monoblock construction is developed based on Europe technology.

* Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be returned.

* Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure.

* Oil way: Parallel circuit, power beyond option.

* Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.

* Valve construction. monoblock construction, 1-7 levers.Spool Function: O,Y, PA.

* Option: Hydraulic lock is available to be added on A and B port.

* Available with manual,' pneumatic control, electric and pneumatic control, hydraulic and electric control and etc.

* Please check product compatibility carefully to ensure it is the product you need.

* Spool Function: O,Y, P, A.

* Fitment: For The Use In Small Tractors, Tractors Loaders, Log Splitters, Forklift Environment Vehicles, Light Loading Machines, Etc

P40 Series 40L/min 1-7 Levers Monoblock Manual Directional Control Hydraulic Valve
