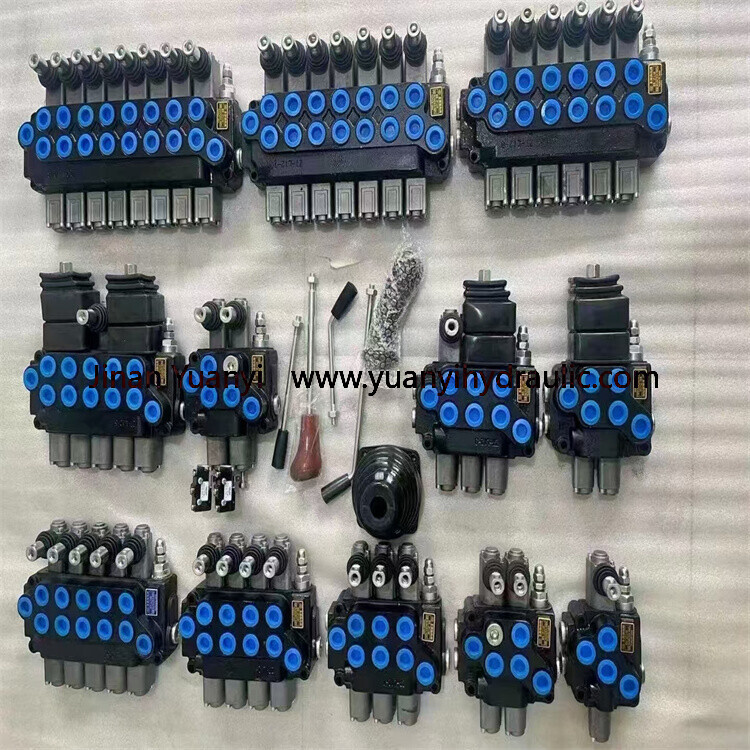

P120 Series Manual Operated Directional Hydraulic Valve 2P120 3P120 4P120 P80 p120 P240 Monoblock Hydraulic Directional Control Valve

P40  P80  P120 series valves with middle-high pressure monoblock construction is developed based on Europe technology.

* Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be returned.

* Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure.

* Oil way: Parallel circuit, power beyond option.

* Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.

* Valve construction: monoblock construction, 1-3levers.

* Spool Function: O,Y, P,A.

* Option: Hydraulic lock is available to be added on A and B port.

* Available with manual, pneumatic control, electric and pneumatic control, hydraulic and electric control and etc.

The valve is widely used in hydraulic systems of construction machinery such as forklifts, sanitation trucks, and small

loaders,etc.
