http://www.yuanyihydraulic.comCharacteristic

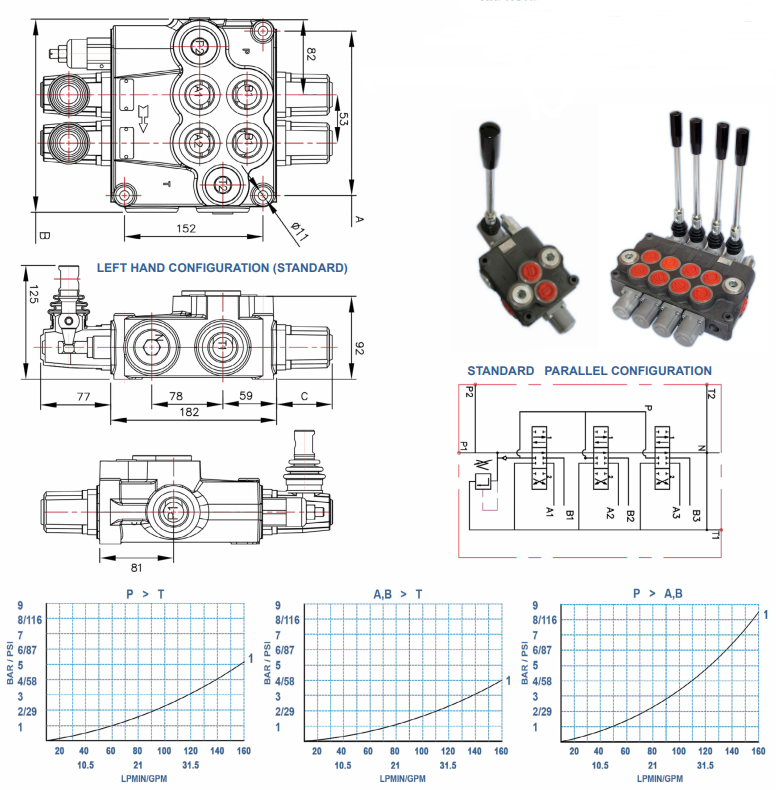

The P120 hydraulic hand-operated valve is a 4-spool valve with a compact design suitable for installation in tight

areas. Each spool is a standard double-acting spool with a spring return to center position, ideal for double-acting

cylinders. Available in open center systems with optional closed center configuration. This valve ensures anti-drop

load inspection of each valve core to ensure safe operation.

The P120 valve is constructed with a precision ground and hard chromium plated valve core for extended service life.

 Its high-strength cast iron construction increases durability and reliability. SAE O-ring ports provide a secure seal,

preventing clogging and ensuring smooth operation.

The valve supports vertical and horizontal handle installation for flexible setup. It features an adjustable pressure

 relief valve with a pressure range of 1500 to 3625 PSI and a preset relief pressure of 2610 PSI for precise control

of the hydraulic system.
