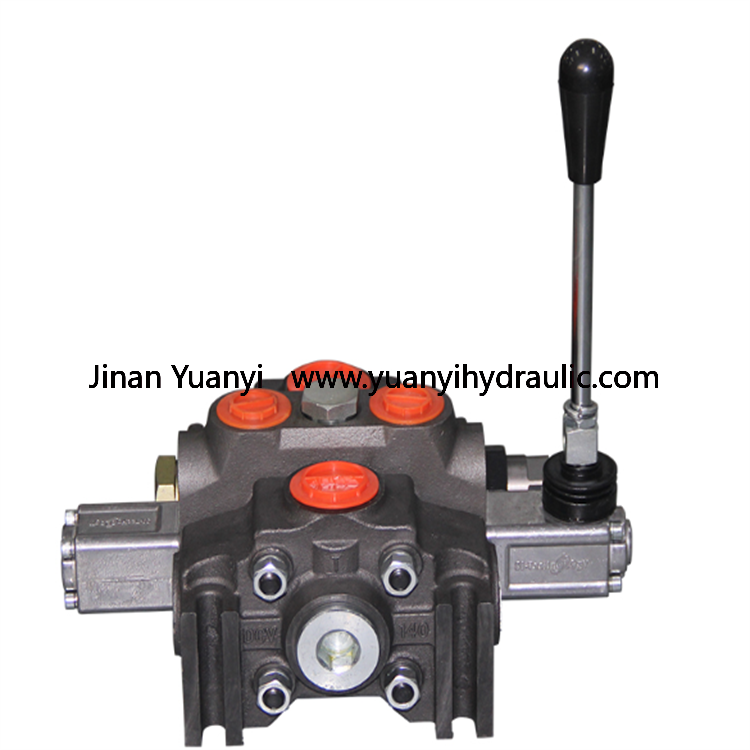

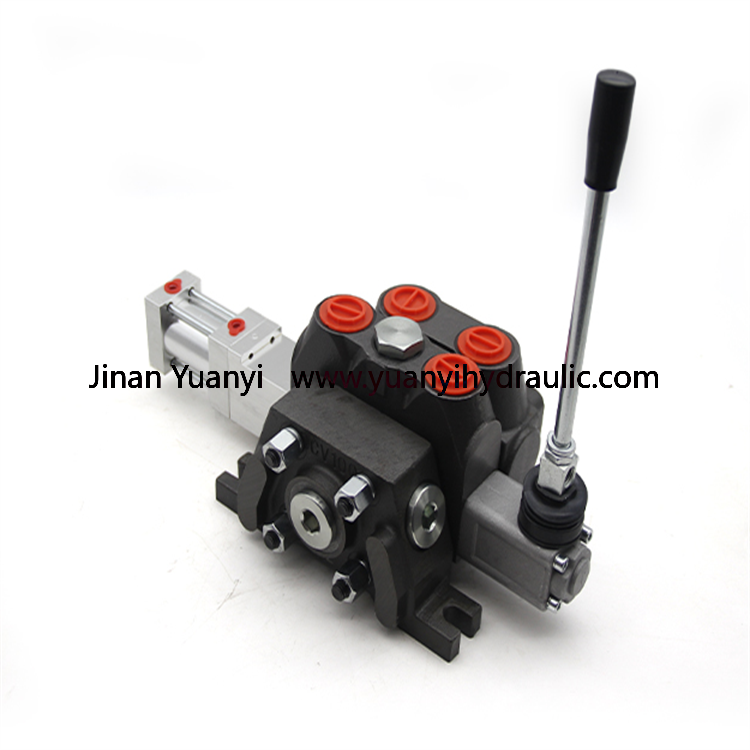

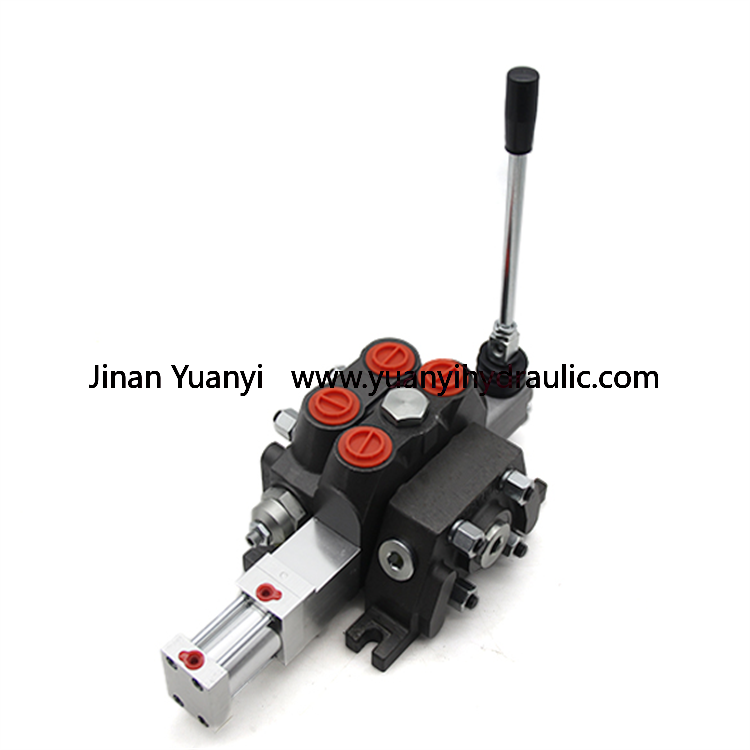

DCV60 DCV100 DCV140 Hydraulic Directional Control Valve,DCV Valve,DCV100 Hydraulic Multiple Control Valve

We supply a variety of mono block and sectional directional control valves: P series, ZT/ZD series, SD series, DCV

series, MB series, ZS series, etc. According to customer needs, different control methods can be used, including

Manual Control, Electro-hydraulic Control, Pneumatic Control, Solenoid Control, Cable Control (with remote),

Micro-switch Control, Pilot control...

The relief valve and one-way valve can be set up on the valve according to customer requirements. The relief

valve can adjust the pressure and the one-way valve prevents the oil from flowing back. The sliding valve of

the reversing valve has a function of A, O, Y, etc. It can be assembled arbitrarily. The reversing handle has two

 installation forms, which are convenient for operation in different directions. The valve adopts parallel or series

 oil circuit, and the pressure output port is designed to connect with other hydraulic components to provide

 power source. The sealing performance of the valve is excellent through specially designed sealing mode.

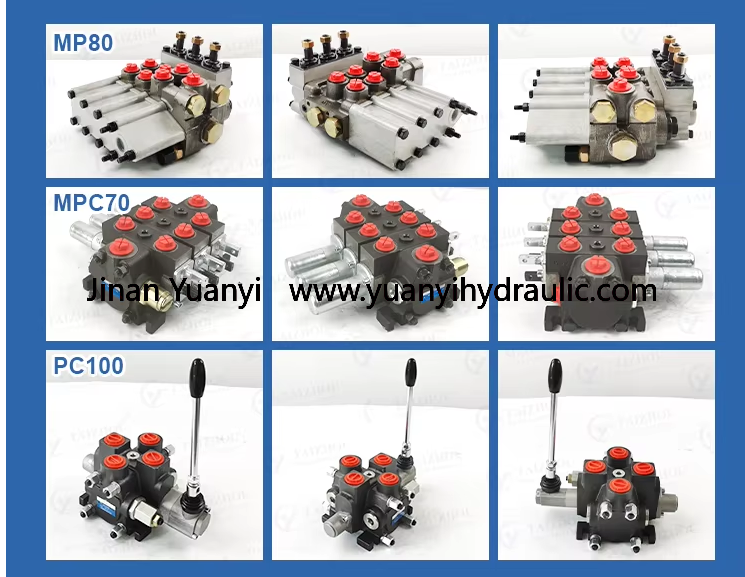

MP80 hydraulic distributor (directional control valves) with 1st, 2nd, 3rd, 4th types spools are full analogues

 of P80-type directional control valves in function and overall dimensions. The operating life of MP80

 directional control valves МР80 directional control valves have a 50% longer service life than regular

P80 valves and equal 375 000 cycles. Designed for distribution and control of working fluid in hydraulic

systems of machines with pumps with capacity from 20 to 120 l/min.
