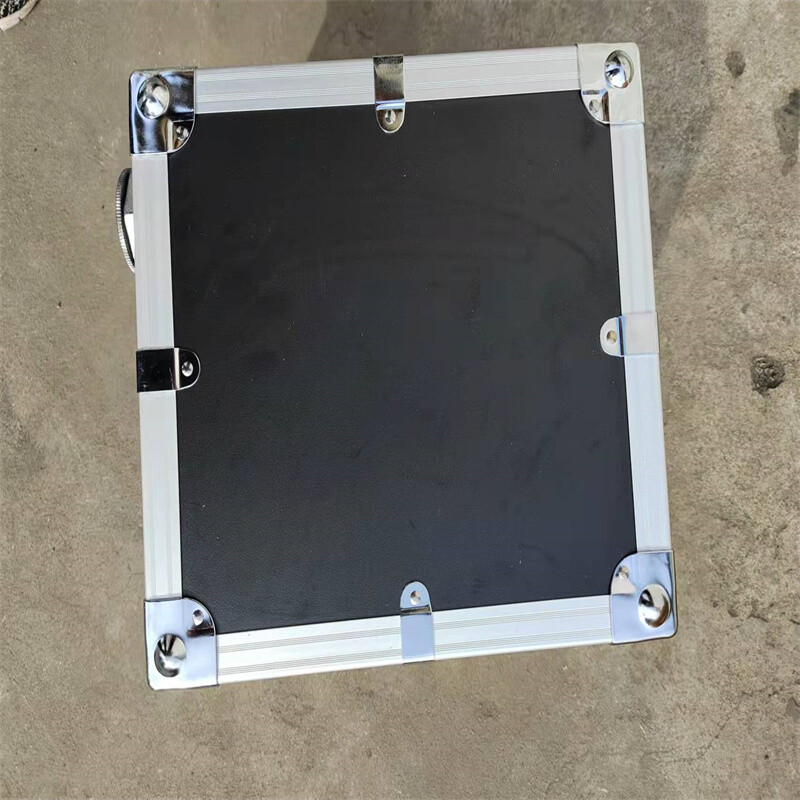

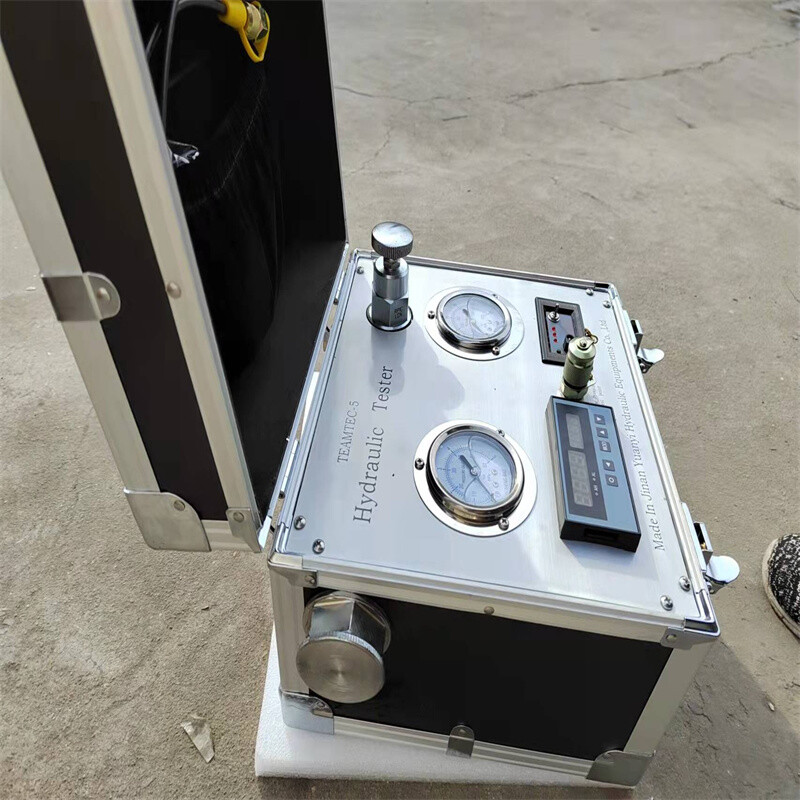

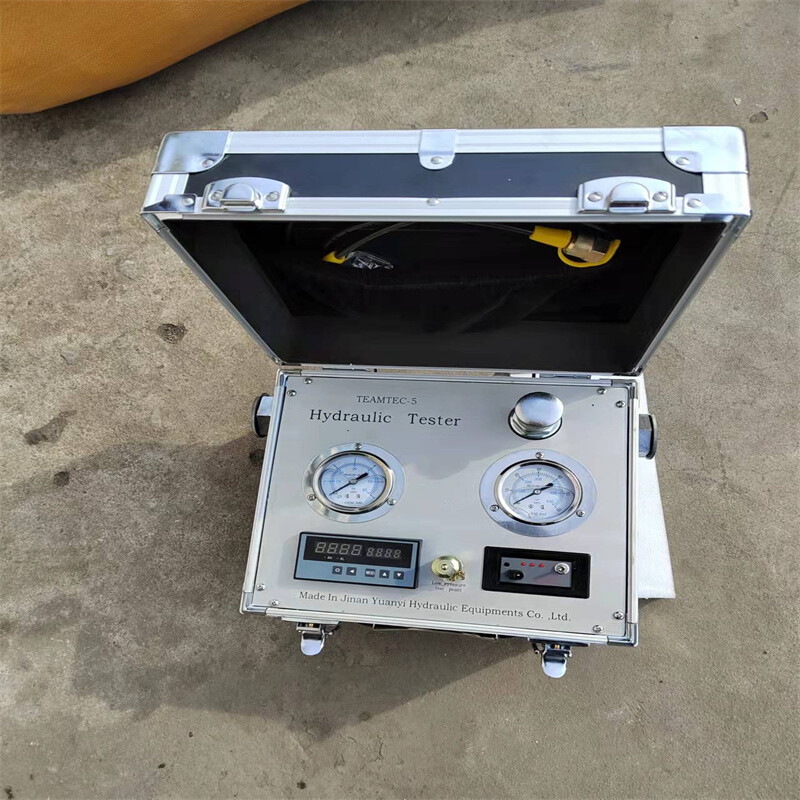

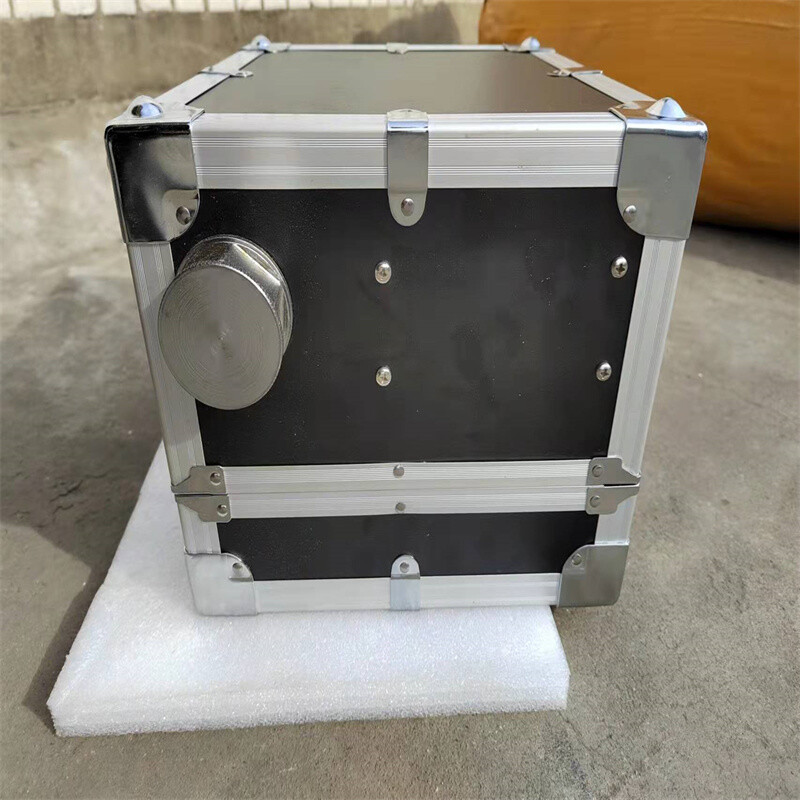

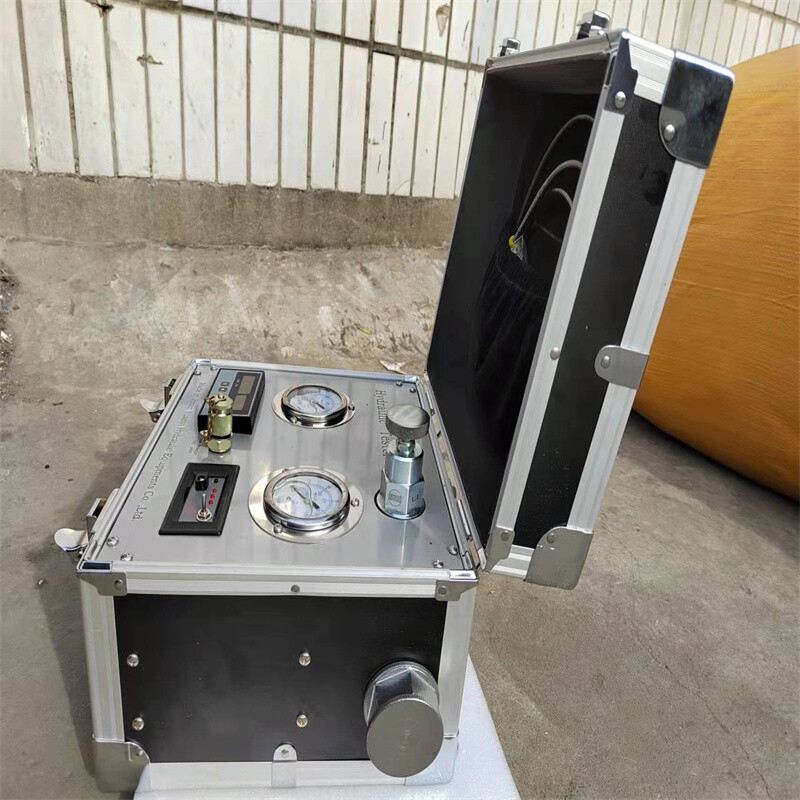

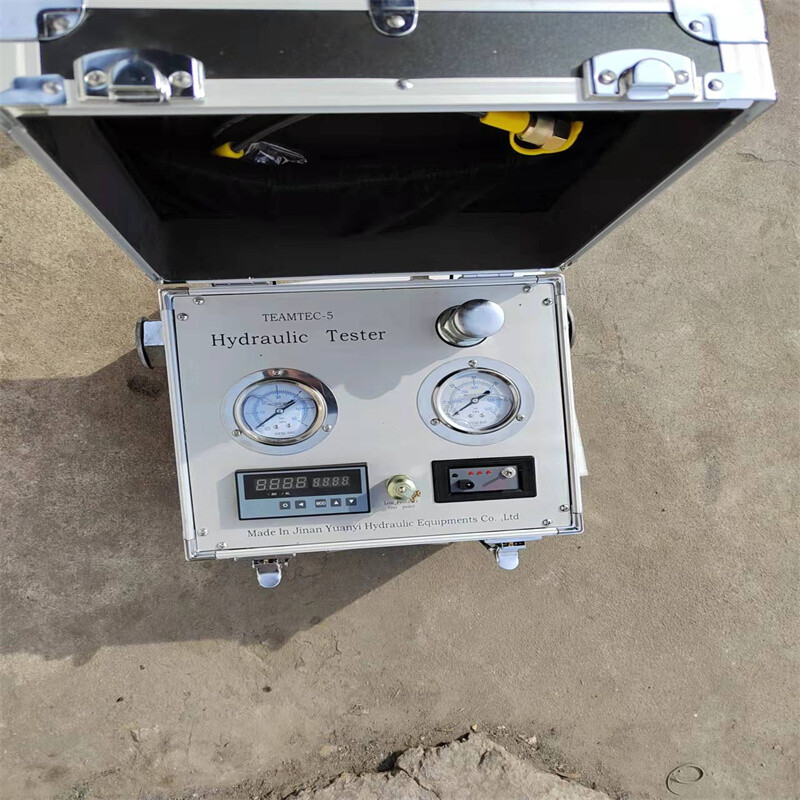

Portable Hydraulic Tester is a product which can test hydraulic loop system, the acquisition of breakpoints data and the measurement of flow rate, pressure and temperature of the system and components are able to be realized simultaneously.  Through the data acquired, pump Tester evaluates the performance of the system and components and judges the faults.  It is widely used in testing and diagnosing for Hydraulic Pump, Hydraulic Motor and Hydraulic valve.

Feature:

1)  High precision - scale span ± 1%.

2）Turbine flow sensor - fast response, antipollution, low pressure loss.

3）With fast-measuring, high-accuracy and good-stability Platinum Resistance Temperature Sensors:

4）Flow and temperature display -- using four LED digital tube, free of low temperature limit,

Instantaneous flow rate 0.000-9999, breakpoints data keep 10 years.

Model: YY-1-5

Oil temperature range: -20—150℃

Maximum testing flow: 500L/min

Overall dimensions: 280x245x172mm

Flow precision: ±1%

Weight: 42 Kg

Maximum test pressure: 420bar Power: Rechargeable lithium

batteries:12V

Accessory

1、1.5m rubber hose：2 pieces

2、1.5m testing pressure line：1 piece

3、Tie-in：2 pieces

4、Multipurpose flange：4 pieces

5、 Charger：1 piece
