https://www.yuanyihydraulic.com/Hydraulic Components Test Bench,Excavator Control Valve Test Stand,Hydraulic Pump Test Table,Hydraulic Pump Repairing Stand

hydraulic valve test rig, hydraulic pump test bench and hydraulic motor function test rig, hydraulic cylinder test rig and

comprehensive test bench. This series of test bench has designed various configuration, for example: proportional control

system, digital display system, variable frequency speed regulation system and computer measurement and control

system etc. The user can select it according to your need.

Product Description

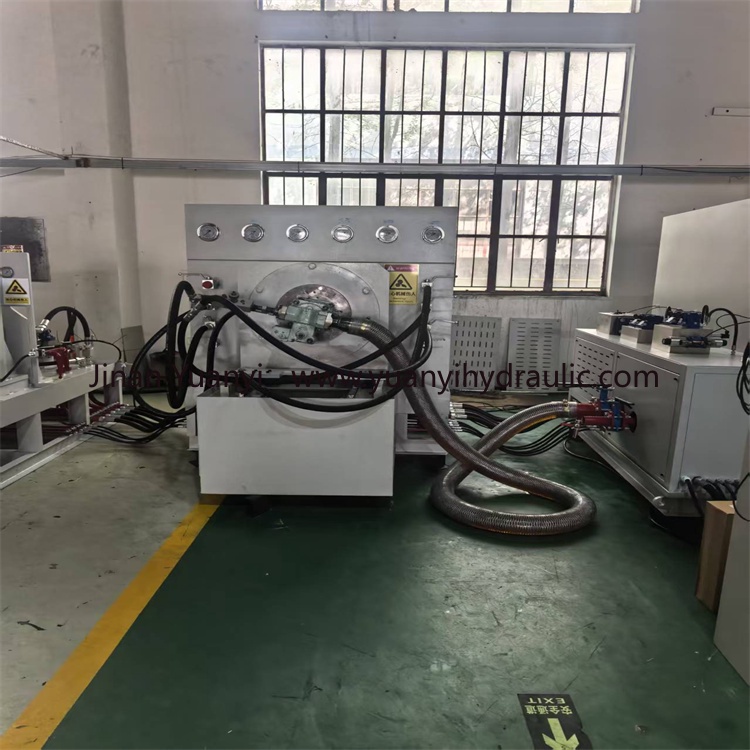

Hydraulic pump motor testing machine is used for checking and proofreading excavator hydraulic pump, hydraulic

motor and hydraulic valve, hydraulic cylinder etc. It also can conduct hydraulic system's breakdown diagnosis.

Test items:

Hydraulic testing machine for hydraulic pump and hydraulic motor is used to test temperature, flow and pressure,

efficiency, and current, RPM etc input power and output power etc loading parameters.

Usage:

1. Hydraulic repairing company to repair hydraulic pump, hydraulic motor etc hydraulic system.

2. Hydraulic pumps motors manufacturing company to test hydraulic pump, hydraulic motor etc other hydraulic

products before shipment.

                Q2: What is your main products?

A: 1. Hydraulic pump

2. Hydraulic motor

3. Hydraulic test bench

4. Hydraulic tester

Standard Test Bench Models Include the following:

Hydraulic Pump Test Bench

Hydraulic Motor Test Bench

Hydraulic Cylinder Test Bench

Valve Factory Test Bench

Transmission & Torque Converter Test Bench

Features

Energy-Saving Options: Includes test benches with electric or hydraulic energy recovery systems

Power Range: Available in 75KW, 160KW, 250KW, and 400KW options

High Load Pressure: Up to 42 MPa, with short-term capability of reaching 50 MPa; max flow exceeds 1000L

Drive Options: Choose from variable frequency or servo motor drives, direct engine drive, or engine-hydraulic pump/motor conversion drive

Drive Motor Types: Standard AC motors, variable frequency AC motors, and permanent magnet DC variable frequency motors, offering wide speed ranges and excellent performance

Standard Dimensions: Available in sizes 3.8m x 2.1m x 2.2m or 3.8m x 4.1m x 2.2m

Weight: 3 to 8 tons (excluding hydraulic oil
