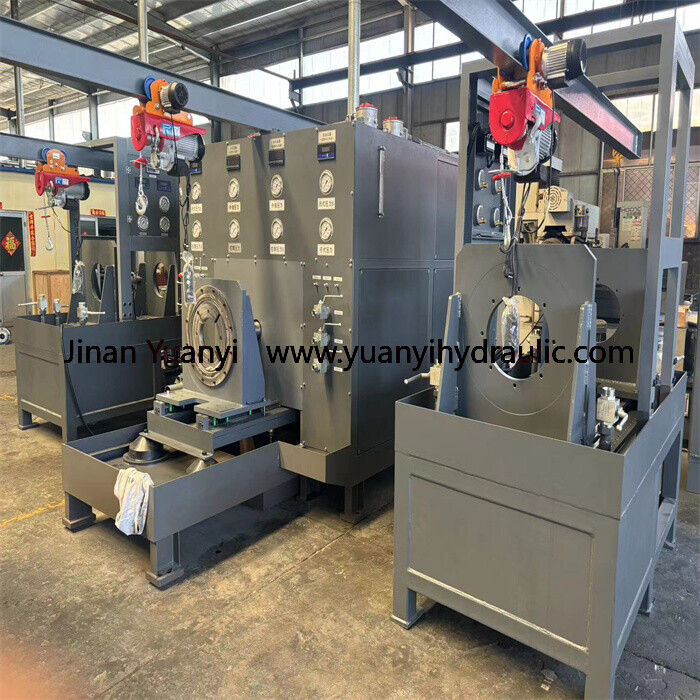

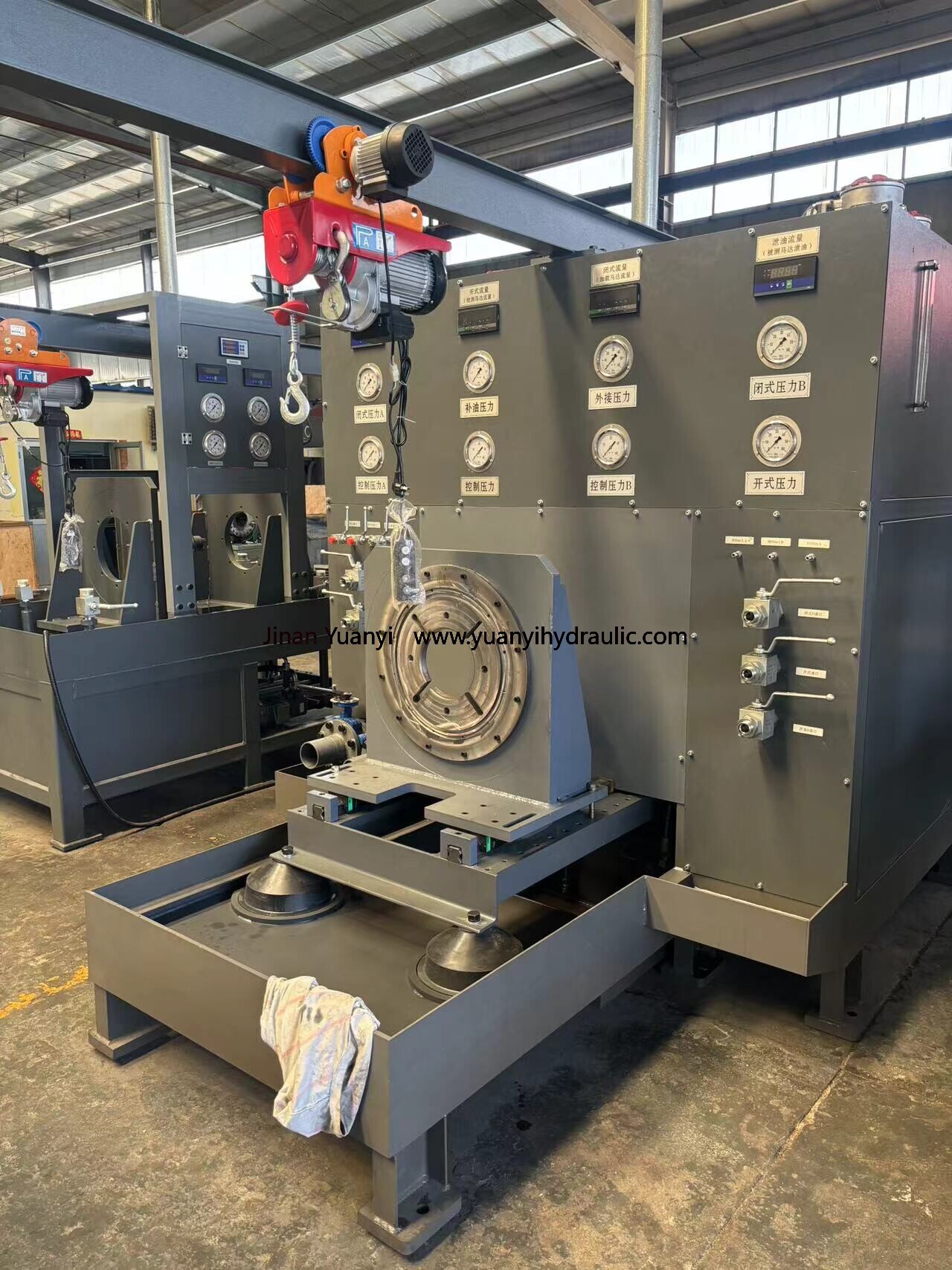

Hydraulic pump Test Stand, hydraulic motor and hydraulic cylinder test bench

1. main technical indicators: power 75KW,90KW,110KW 160KW,200KW,250KW

Maximum pressure: 40MP; Main system traffic: 400L+400L

Hydraulic pump experimental speed: 0--1500r/min

Oil return flow: 100L

2. Functional configuration and parameters of the test bed

3. Function: hydraulic integrated test bench can test the following components

4. Main test: single and double hydraulic pump; Open and closed hydraulic pump; Low speed hydraulic motor; High speed hydraulic motor, etc., pump test: flow, pressure, variable point, internal drainage, constant power point, variable characteristics, volumetric efficiency, etc. Motor test: flow, pressure, volumetric efficiency, internal discharge, etc.

5. driving mode: motor output power 90kw; Speed 0-1500r/min
