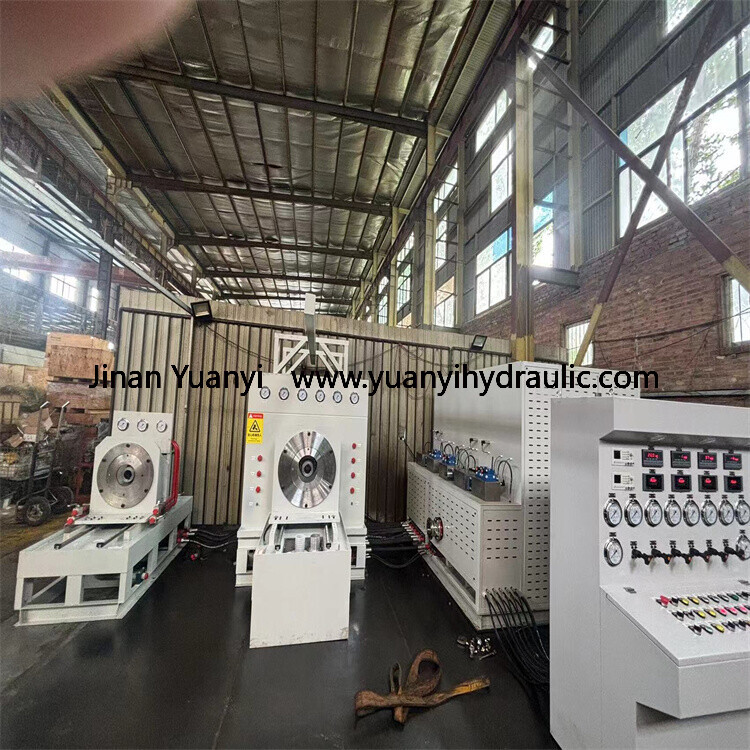

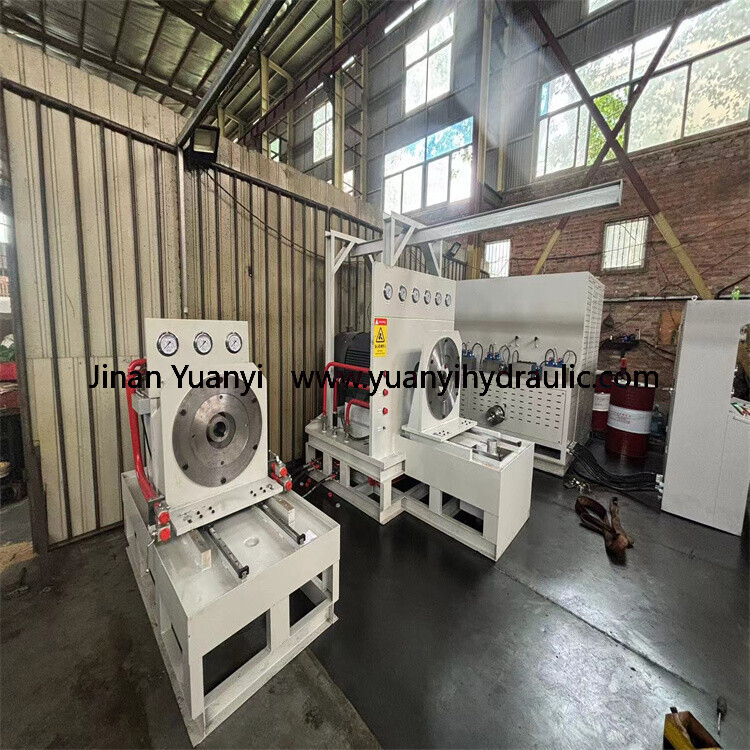

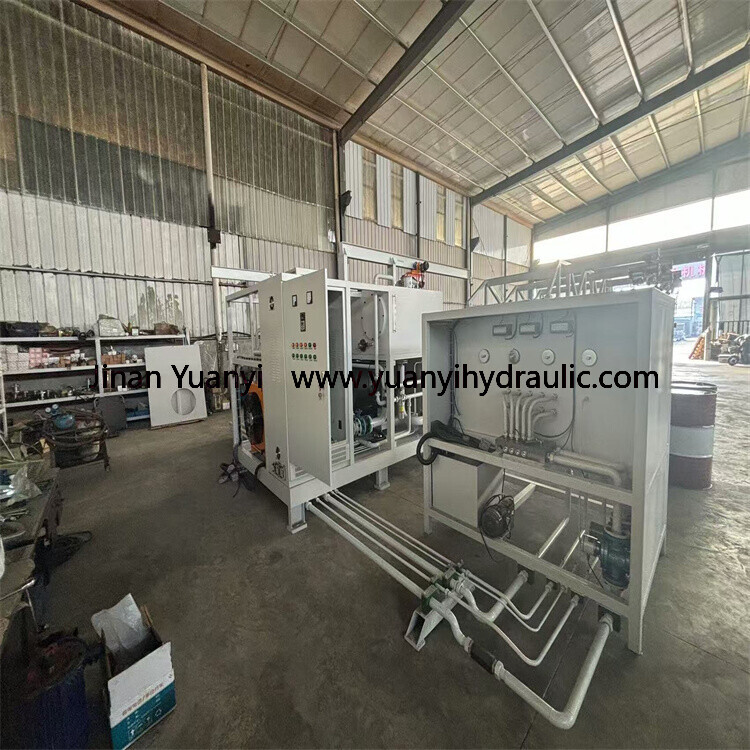

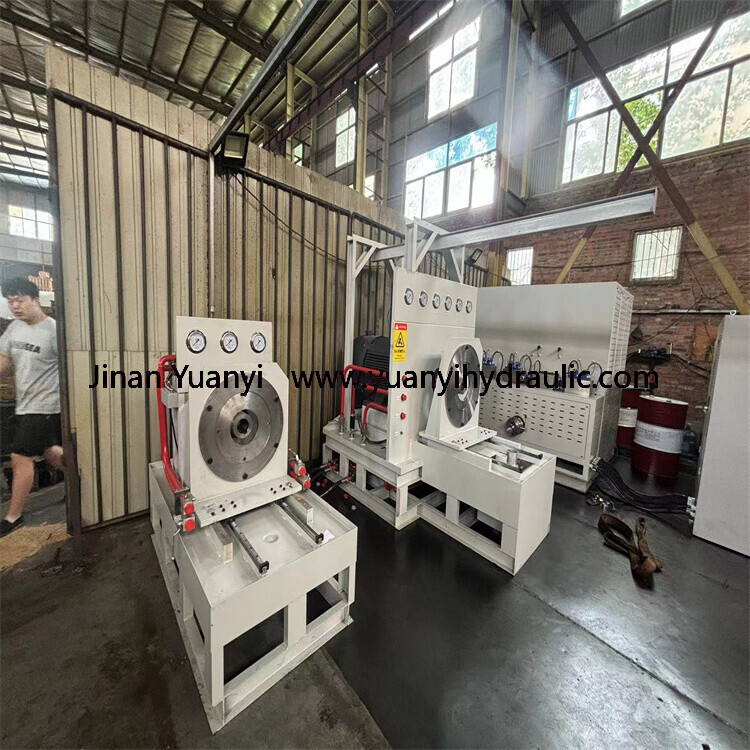

comprehensive hydraulic system pump motor valve cylinder testing machine, Hydraulic Pump Test Equipment

It is a professional hydraulic pump / motor / valve / comprehensive test bench, which is specially used for hydraulic pump

and hydraulic motor

Valves and special equipment for factory inspection after maintenance. The system selects high-quality hydraulic components and

accessories at home and abroad. It has the characteristics of compact structure, reliable quality, reasonable design, easy

operation and maintenance, and meets the technical requirements in gb3766-88 general technical conditions for hydraulic systems.

2. 2.The hydraulic system of this test-bed adopts a closed oil tank structure, which allows it to work in a dusty environment.

However, pay attention to regularly cleaning the dust on the hydraulic equipment when using it, so as to ensure that the hydraulic

system has good heat dissipation and oil cleanliness.

2, Structural features

1. 1.The device uses the motor as the driving system of the whole test-bed. The test bench is divided into two parts:; Motor drive

table; Main tank valve console. The installation structure has the advantages of small volume, light weight, compact structure and

convenient installation.

2. 2.The integrated oil circuit block design makes the system have less leakage, compact structure, convenient disassembly and

assembly.

3. 3.The output oil circuit is arranged neatly and clearly, which is easy to operate and install.

4. 4.The computer operation is simple, clear and friendly.
