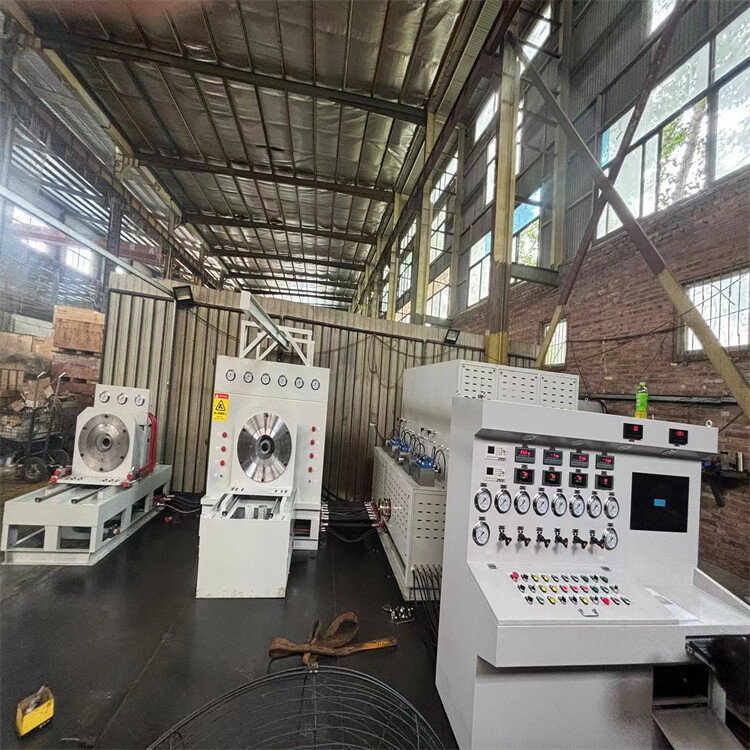

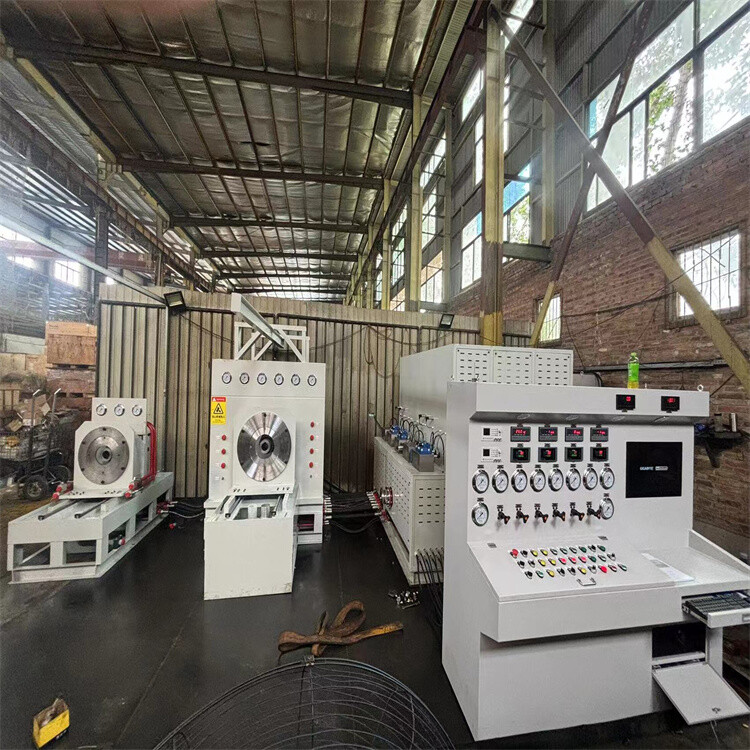

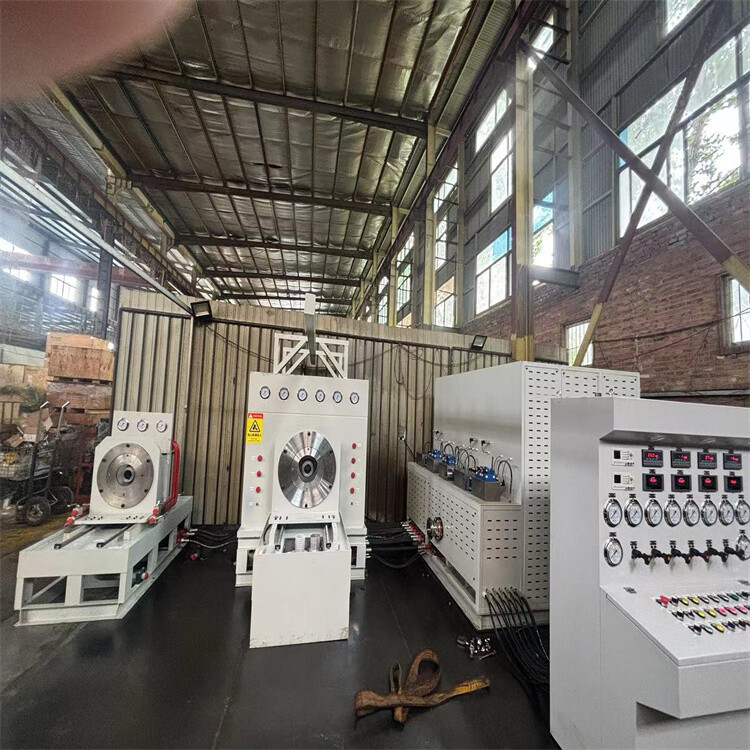

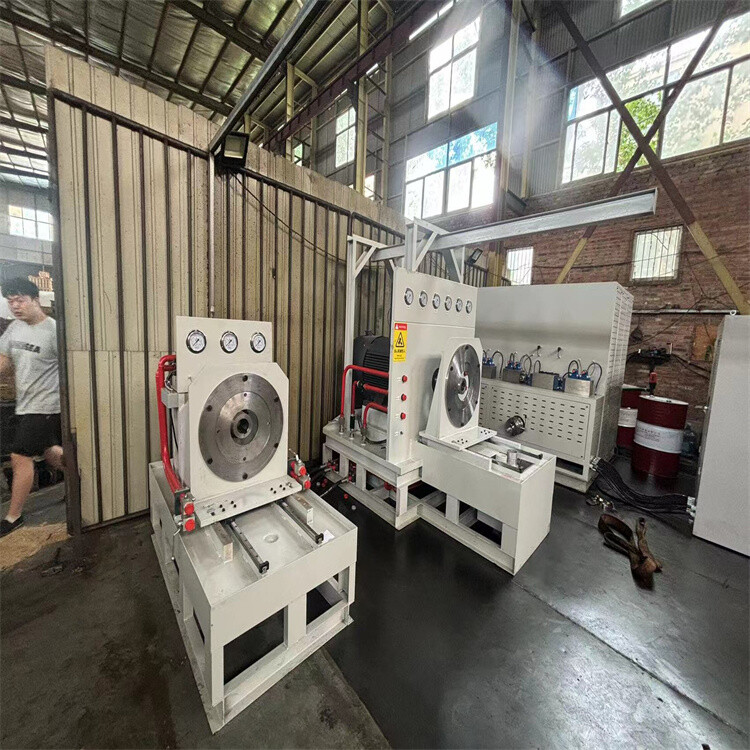

160kw Hydraulic Pump Test Bench,Digital Hydraulic System Testing Equipment

 The hydraulic pump/motor comprehensive test bed absorbs the advanced experience of European and American countries, and combines the actual demand of domestic hydraulic pump and motor test to develop a powerful, advanced and efficient test bed, the equipment has the characteristics of simple operation, stable performance, high degree of automation, strong expansibility and so on.Scope of application: hydraulic axial piston pump, piston motor; Hydraulic gear pump; Hydraulic vane pump. Technical parameters: Main motor power: 110KW (customized according to user requirements); Test pressure: 0-315bar range stepless adjustable; Main motor speed: 0-3000 r/min stepless adjustable; Test flow: 10-360 L/min range can be accurately measured; The number of pumps and motors to be tested: single or double; Oil filling pressure: 0-50bar adjustable; Oil filling flow: 0-60 L/min adjustable; Test oil temperature: -20 ~ 1200C, test oil temperature is adjustable; Oil filtration accuracy: < 20μm, equivalent to ISO4406 class 16/13 or NAS7.
