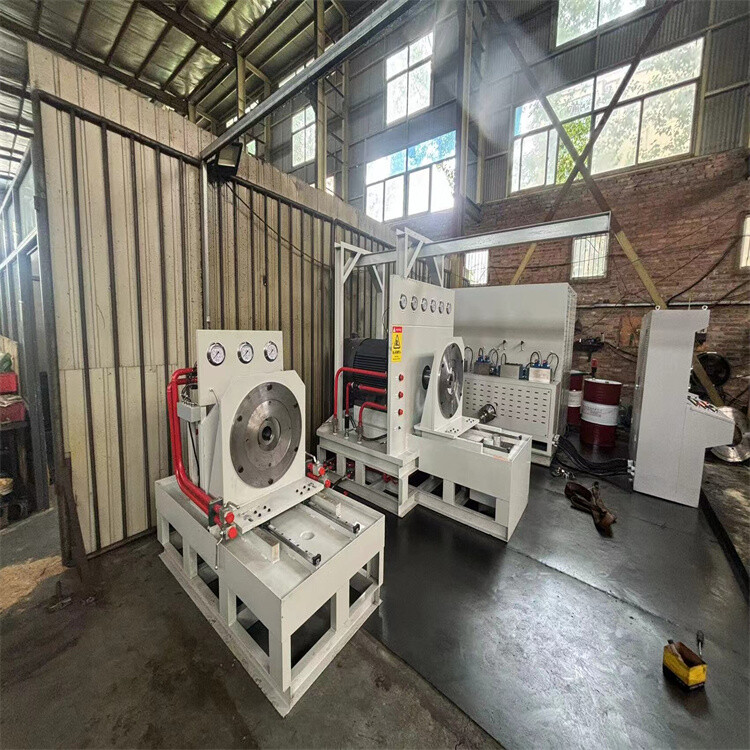

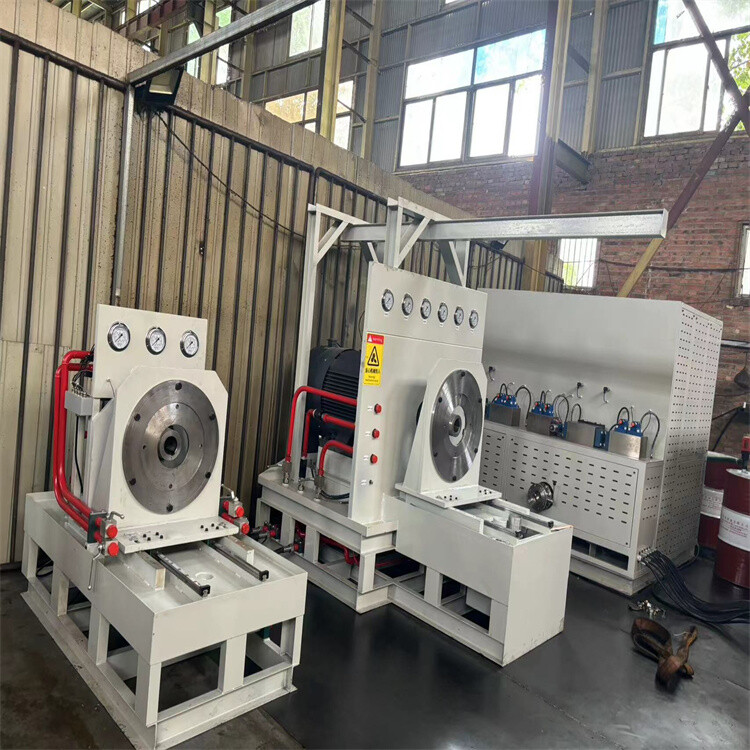

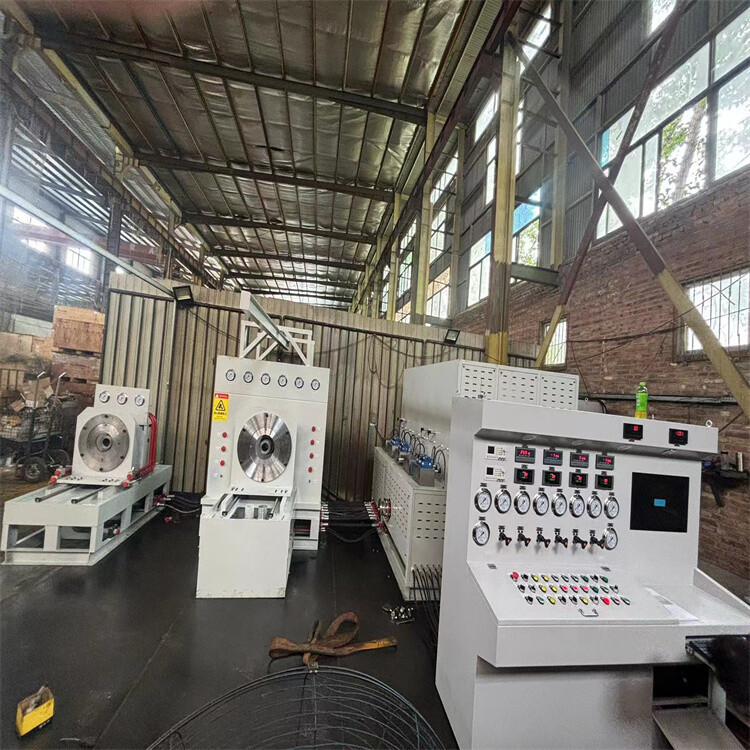

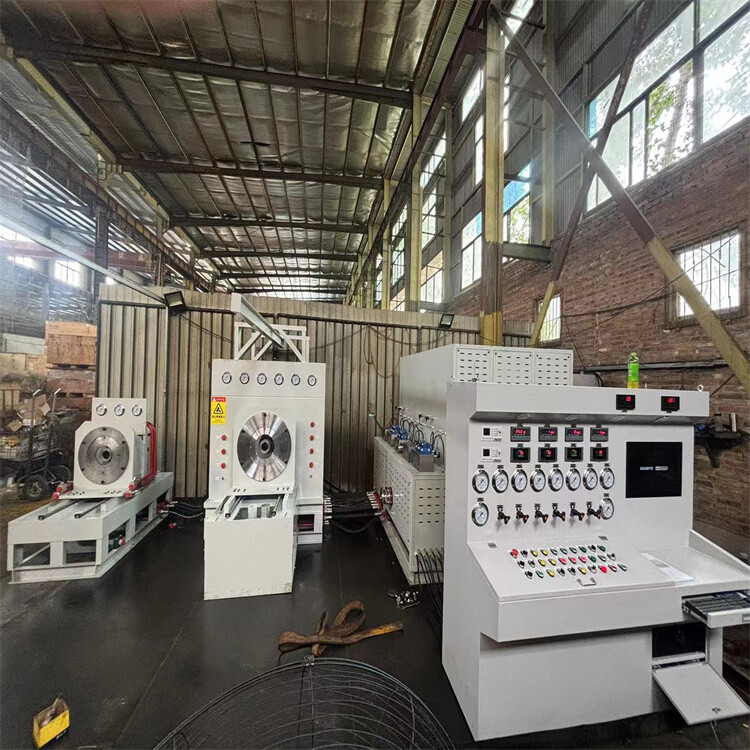

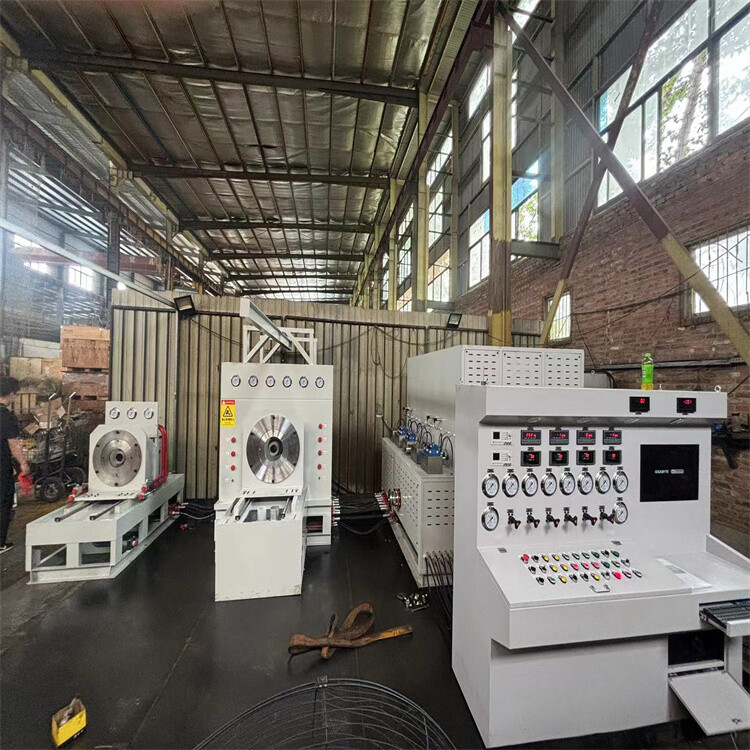

The hydraulic pump and Piston motor comprehensive test bench absorbs the advanced experience of European and American countries, and combines the actual demand of domestic hydraulic pump and motor test to develop a powerful, advanced and efficient test bed, the equipment has the characteristics of simple operation, stable performance, high degree of automation, strong expansibility and so on.Scope of application: hydraulic axial piston pump, piston motor; Hydraulic gear pump; Hydraulic vane pump. Technical parameters: Main motor power: 110KW (customized according to user requirements); Test pressure: 0-315bar range stepless adjustable; Main motor speed: 0-3000 r/min stepless adjustable; Test flow: 10-360 L/min range can be accurately measured; The number of pumps and motors to be tested: single or double; Oil filling pressure: 0-50bar adjustable; Oil filling flow: 0-60 L/min adjustable; Test oil temperature: -20 ~ 1200C, test oil temperature is adjustable; Oil filtration accuracy: < 20μm, equivalent to ISO4406 class 16/13 or NAS7.

Features:
