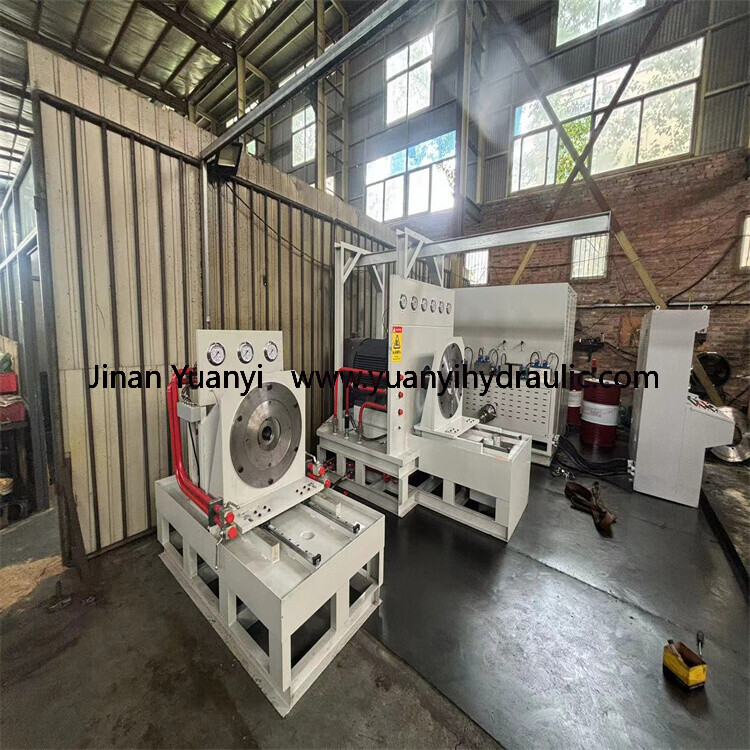

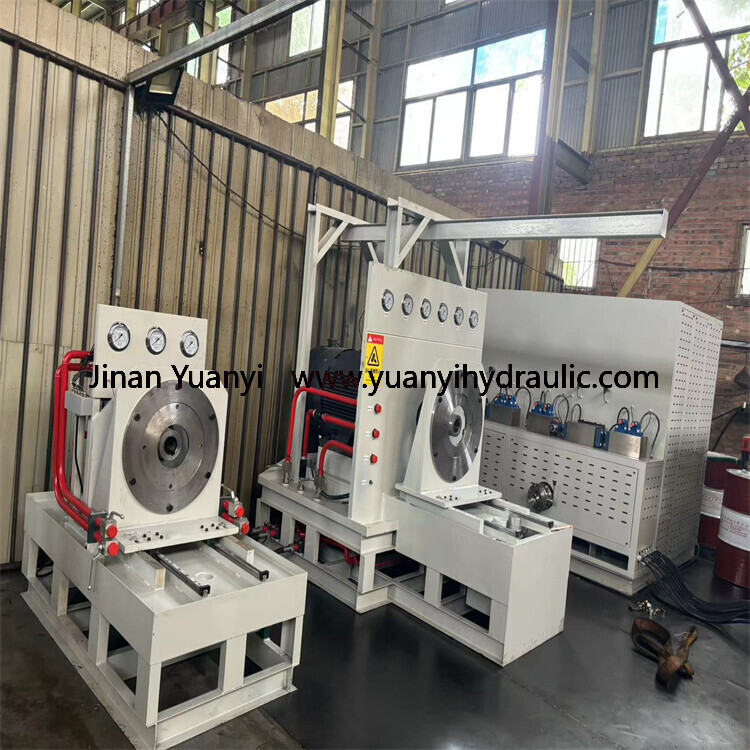

160KW Hydraulic High Pressure Pump Test Bench,110KW Piston Motor Flow and Pressure Testing Equipment

Hydraulic test bench maintenance

Hydraulic test bench maintenance can design and manufacture according to the need, into a comprehensive function

of the test rig: comprehensive test-bed hydraulic components.Or design and manufacture into a single function test

bench: hydraulic pump test rig, hydraulic motor test rig, hydraulic valve test rig, oil cylinder test stand.Also can design

and manufacture according to industry special needs, such as drivers hydraulic pump test-bed maintenance, hydraulic

 hammer test rig, etc.Users can choose according to need a variety of configurations, such as proportional control

system, digital display system, variable frequency speed regulation system and computer measurement and control

system, etc.

Hydraulic maintenance test bed for hydraulic pump, motor, valve repair enterprise product factory efficacy and

equipment for the production of a hydraulic system fault.Products for the company to develop design and production,

can according to customer needs in any combination.

 The hydraulic pump/motor comprehensive test bed absorbs the advanced experience of European and American

countries, and combines the actual demand of domestic hydraulic pump and motor test to develop a powerful,

advanced and efficient test bed, the equipment has the characteristics of simple operation, stable performance,

 high degree of automation, strong expansibility and so on.Scope of application: hydraulic axial piston pump,

piston motor; Hydraulic gear pump; Hydraulic vane pump. Technical parameters: Main motor power: 110KW

(customized according to user requirements); Test pressure: 0-315bar range stepless adjustable; Main motor

speed: 0-3000 r/min stepless adjustable; Test flow: 10-360 L/min range can be accurately measured; The number

 of pumps and motors to be tested: single or double; Oil filling pressure: 0-50bar adjustable; Oil filling flow:

0-60 L/min adjustable; Test oil temperature: -20 ~ 1200C, test oil temperature is adjustable; Oil filtration

accuracy: < 20μm, equivalent to ISO4406 class 16/13 or NAS7.

Features:

Total power

75KW,90KW,110KW,132KW,160KW,315kw,350kw

Range of test pressure

0~42MPa

Range of flow rate

0~500L/min

Range of rotational speed

0~3000r/min

Composition

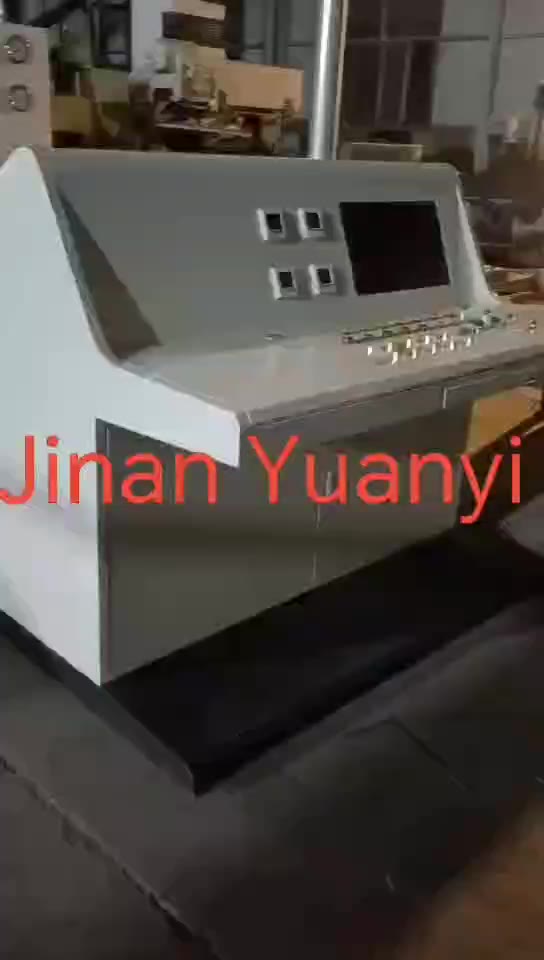

Dynamic system, hydraulic control system, hydraulic oil filter temperature control system and electric control system, data acquisition test system

Applicable area

Apply to performance test of the hydraulic components that supported by a host in engineering machinery, metallurgical, petroleum, machinery, aerospace, shipbuilding and other fields.
