160KW 110KW High Pressure Piston Pump Test Bench,Piston Motor Flow and Pressure Testing Equipment
160KW 110KW High Pressure Piston Pump Test Bench,Piston Motor Flow and Pressure Testing Equipment,Hydraulic test bench maintenance can design and manufacture according to the need
Inquire Now
Chat Now

Product Description

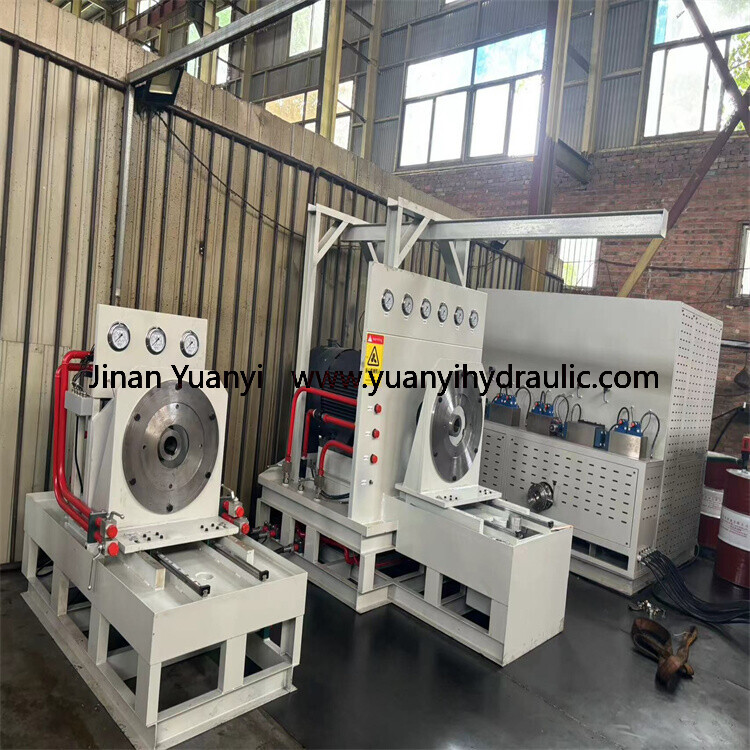

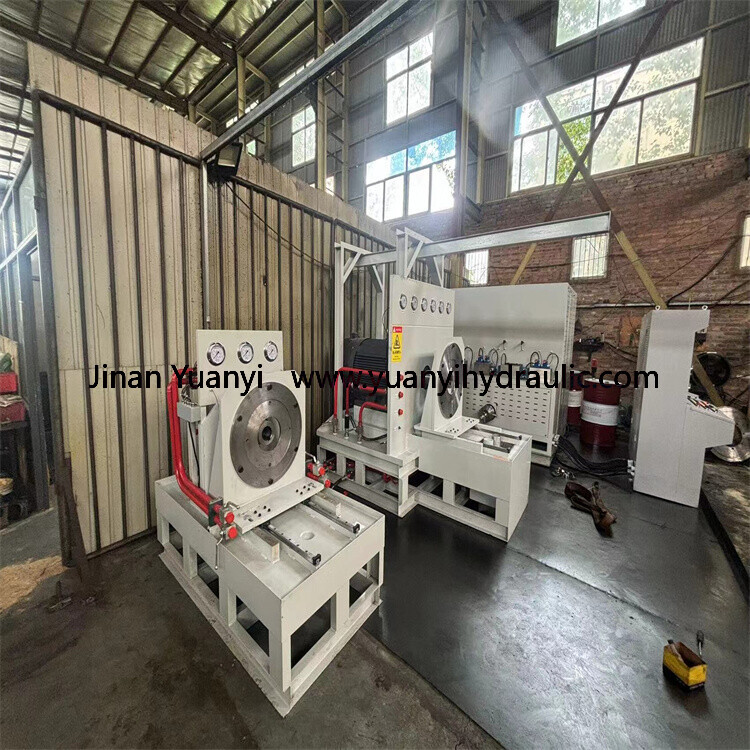

160KW 110KW High Pressure Piston Pump Test Bench,Piston Motor Flow and Pressure Testing Equipment

Hydraulic maintenance test bed for hydraulic pump, motor, valve repair enterprise product factory efficacy and equipment for the production of a hydraulic system fault.Products for the company to develop design and production, can according to customer needs in any combination.


The hydraulic pump/motor comprehensive test bed absorbs the advanced experience of European and American countries, and combines the actual demand of domestic hydraulic pump and motor test to develop a powerful, advanced and efficient test bed, the equipment has the characteristics of simple operation, stable performance, high degree of automation, strong expansibility and so on.Scope of application: hydraulic axial piston pump, piston motor; Hydraulic gear pump; Hydraulic vane pump. Technical parameters: Main motor power: 110KW (customized according to user requirements); Test pressure: 0-315bar range stepless adjustable; Main motor speed: 0-3000 r/min stepless adjustable; Test flow: 10-360 L/min range can be accurately measured; The number of pumps and motors to be tested: single or double; Oil filling pressure: 0-50bar adjustable; Oil filling flow: 0-60 L/min adjustable; Test oil temperature: -20 ~ 1200C, test oil temperature is adjustable; Oil filtration accuracy: < 20μm, equivalent to ISO4406 class 16/13 or NAS7.

Payment term:


1. T/T: 30% deposit by T/T, 70% balance by T/T before shipment


2. L/C at sight


Trade term: EXW or FOB Ningbo/Shanghai


Packing details:


1Yuanyi Brand, Neutral or Customer’s requires label


2Neutral carton or same as the Customer’s requires, export standard carton


3All cartons should be packed into the pallets more carefully.


4All of the productions are inspected carefully one by one by QC before delivery.


Delivery time:


We have huge quantity of inventory for complete pumps, kits and some pare pats, so the leading time is within 3days if have inventory. If haven’t, within 5days if the quantity is less than 300pcs.


It depends on the quantity ordered.


Min. Order:


If the model is in common or the production are in our stock warehouse, No MOQ for stocking production.


Larger quantity, price will be more favorable.
