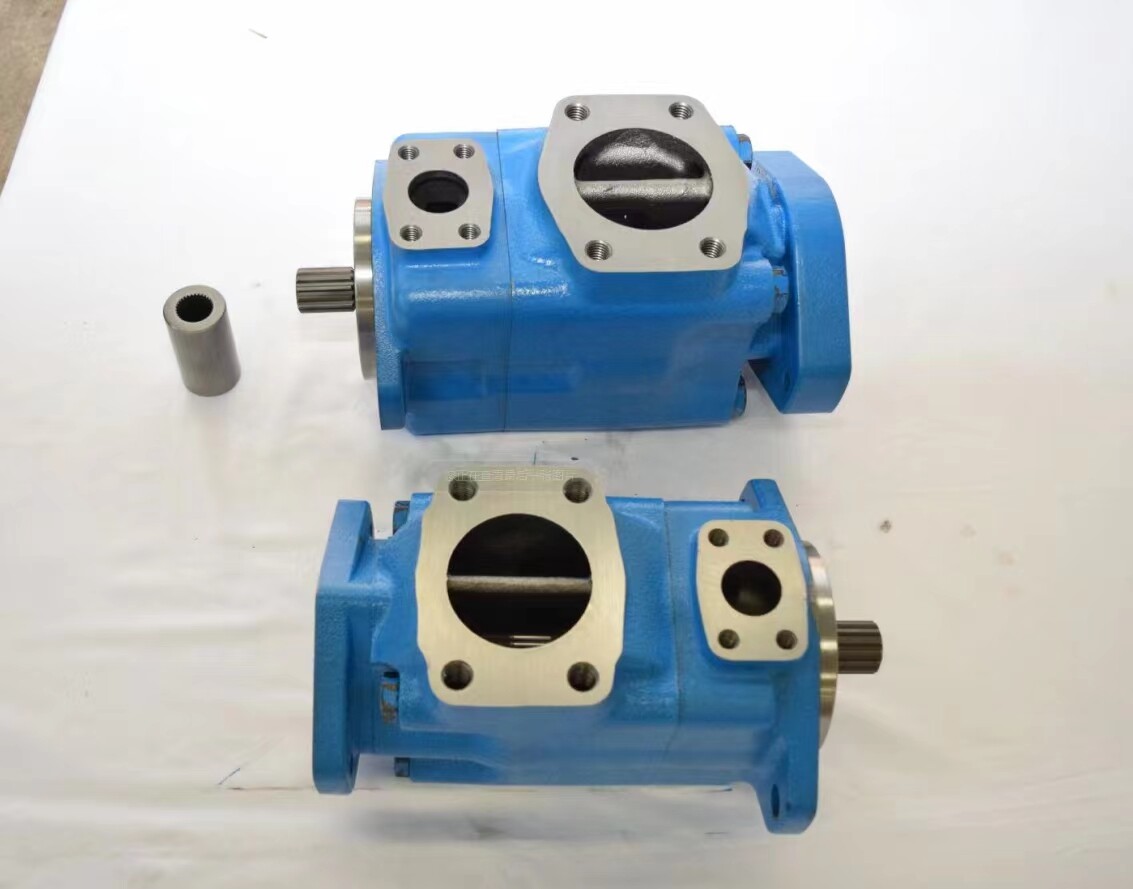

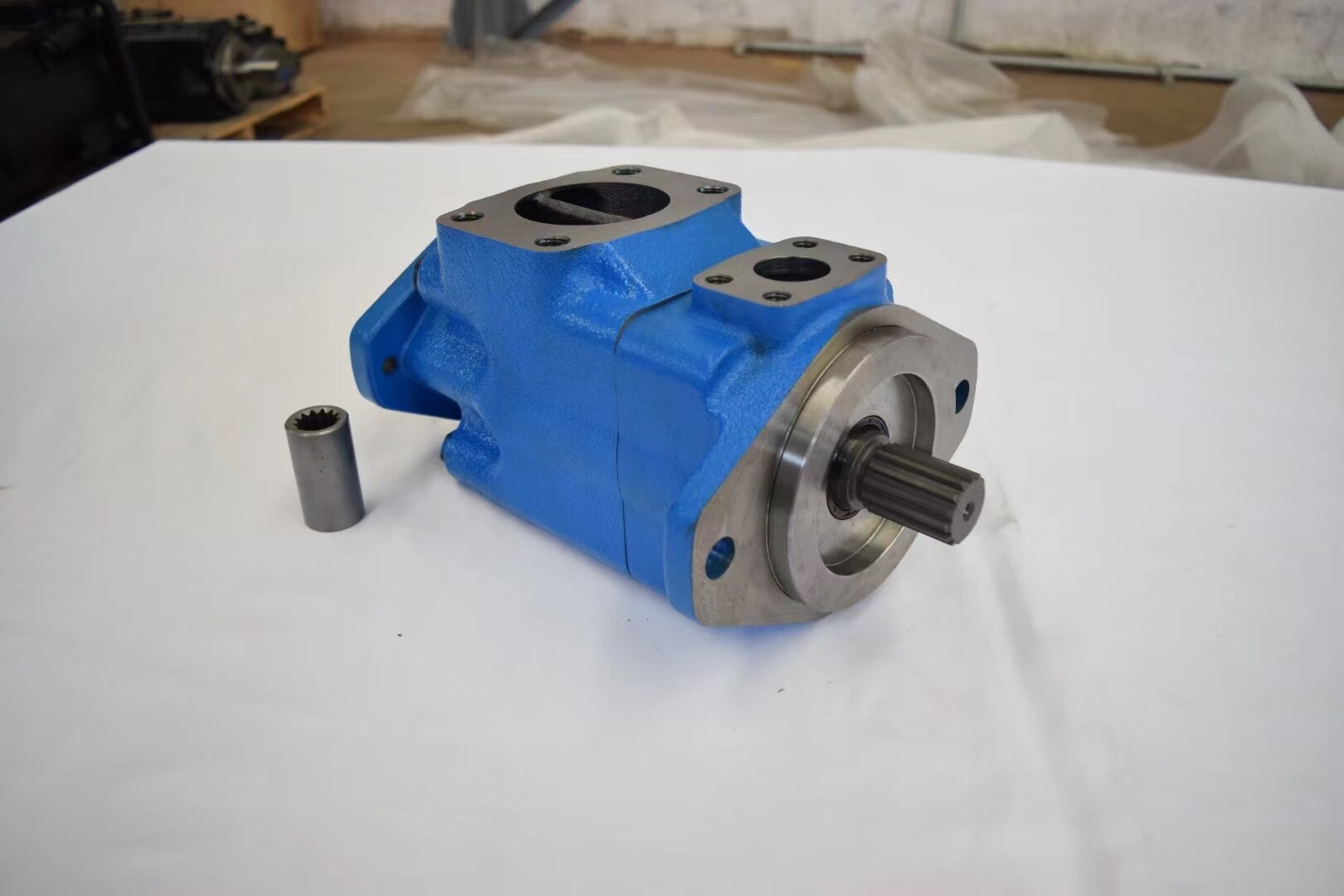

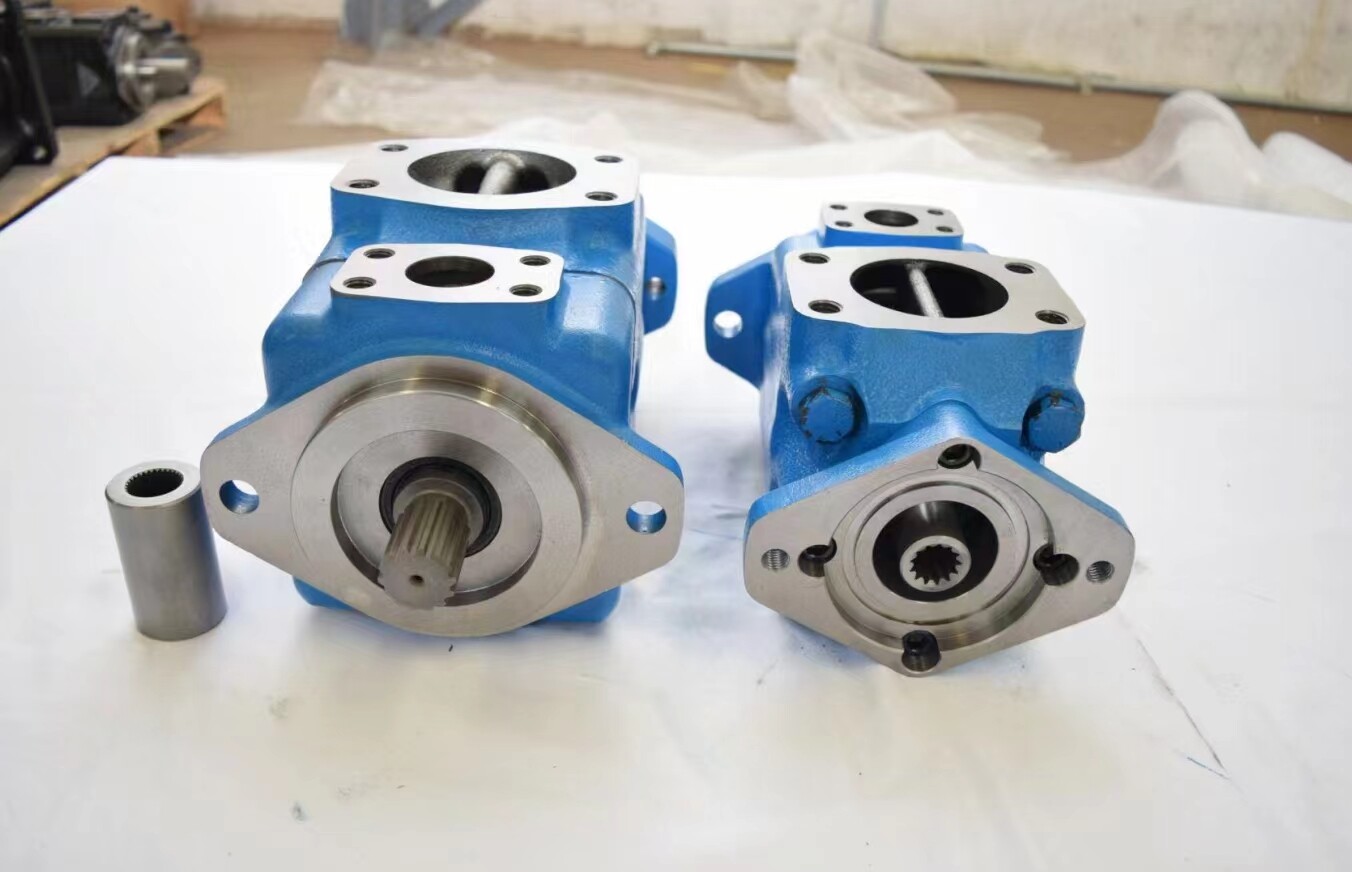

1. Performance of 3525V double vane pump

   This cost-effective pump provides over 90% volumetric efficiency and a noise level as low as 62 dB(A) at an operating pressure of 210 bar (3000 psi). In-situ repair by replacing the pump movement reduces downtime and increases productivity.

2. General description of 3525V double vane pump

   Combo vane pumps offer long life, high productivity and application flexibility. Extremely low noise levels suit the most demanding industrial applications. Compact size and ease of use allow maximum flexibility in equipment design. Single, twin and thru-drive pumps are available.

3. Characteristics and advantages of 3525V double vane pump

(1) The ability to achieve high working pressure in a compact size ensures a high power-to-weight ratio and reduced installation costs.

(2) The inherent low-noise characteristics of the mother-and-daughter blade mechanism improves operator comfort.

(3) blade system ensures small amplitude of flow pulsation and low system noise characteristics.

(4) Hydraulic balancing designed to prevent internally induced radial loads on the shaft and bearings ensures long life.

(5) Duplex pump and through-shaft drive configurations save installation space and cost by eliminating twin-shaft motors or by reducing the number of motors and drive couplings.

(6) The through-shaft drive type provides valuable loop design flexibility, such as quantitative and variable types on a single input drive.

(7) 16 flow capacities and the ability to achieve high operating pressures provide optimal choice and single source capability for the entire range of your flow and pressure requirements.

(8) Factory tested movement kit provides new pump performance after installation.

(9) The movement kit structure ensures rapid and efficient on-site repairability. The movement is separate from the drive shaft, making it easy to change flow capacity and perform maintenance without having to fold the pump from its base.

(10) The oil inlet and oil outlet can be oriented into four different relative positions, providing great installation flexibility and facilitating machine design.

This series has two types: single pump and double pump. They are available from stock and have complete specifications. Welcome to inquire.

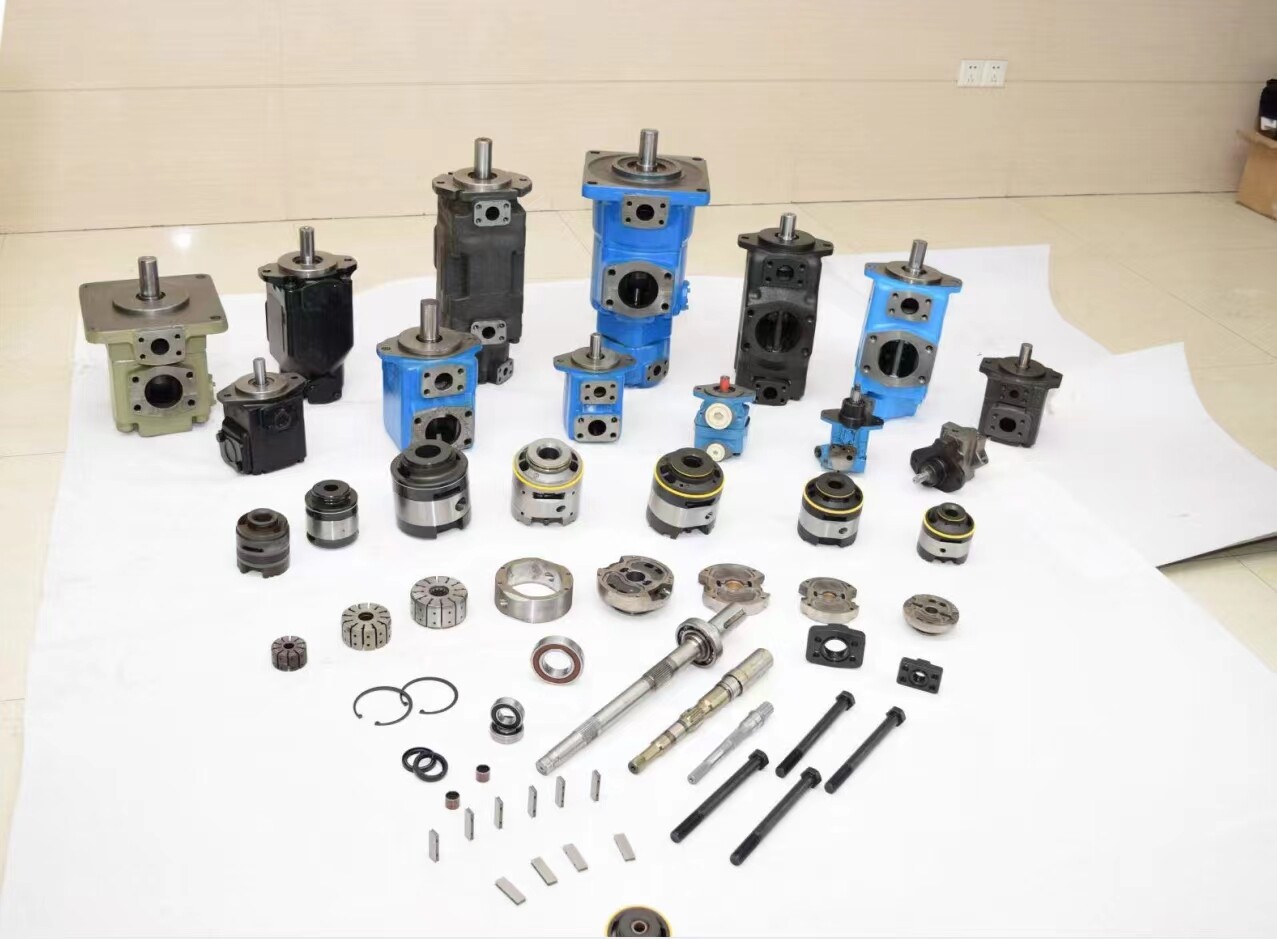

Commonly used series of vane pumps are as follows: (accessories or assemblies are available for sale)

Single vane pump V series: (Q)V10, V20, 20V, 25V, 35V, 45V

Double vane pump V series: V2010, V2020, 2520V, 3520, 3525V, 4520V, 4535V

Complete PVQ series: PVQ5, PVQ10, PVQ15, PVQ20, PVQ25, PVQ29, PVQ45

Complete PVB series: PVB5, PVB10, PVB15, PVB20, PVB25, PVB29, PVB45

Complete PVH series: PVH57, PVH74, PVH98, PVH131, PVH141
