Product Description

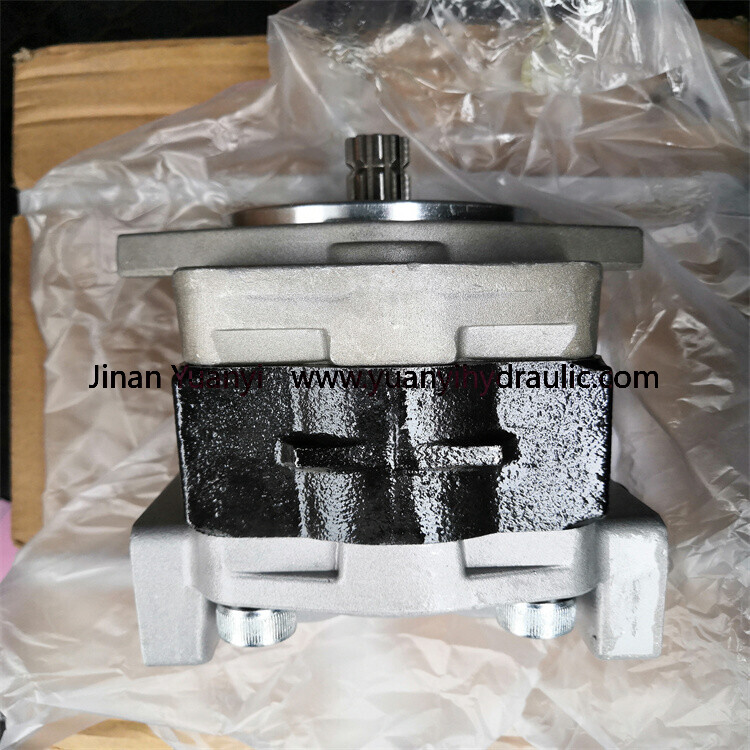

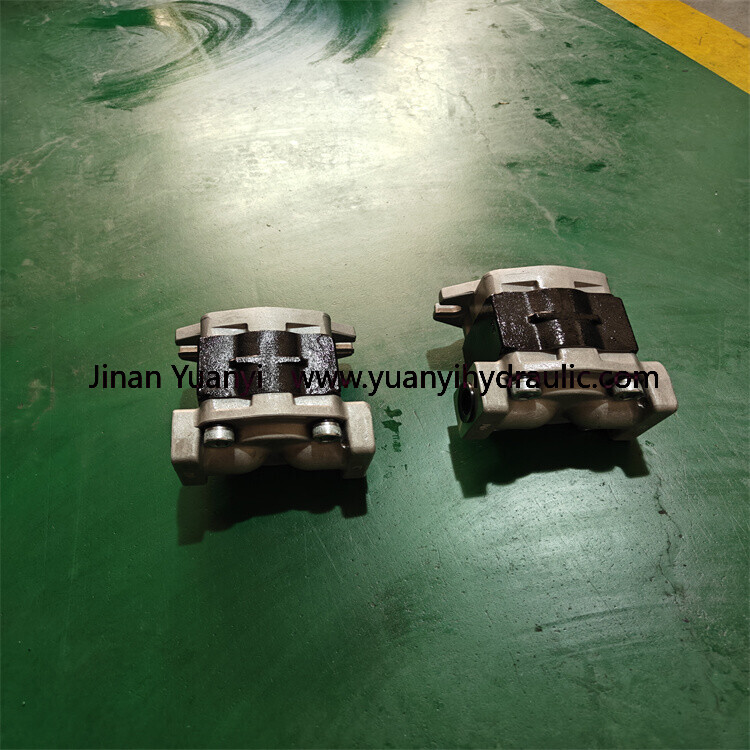

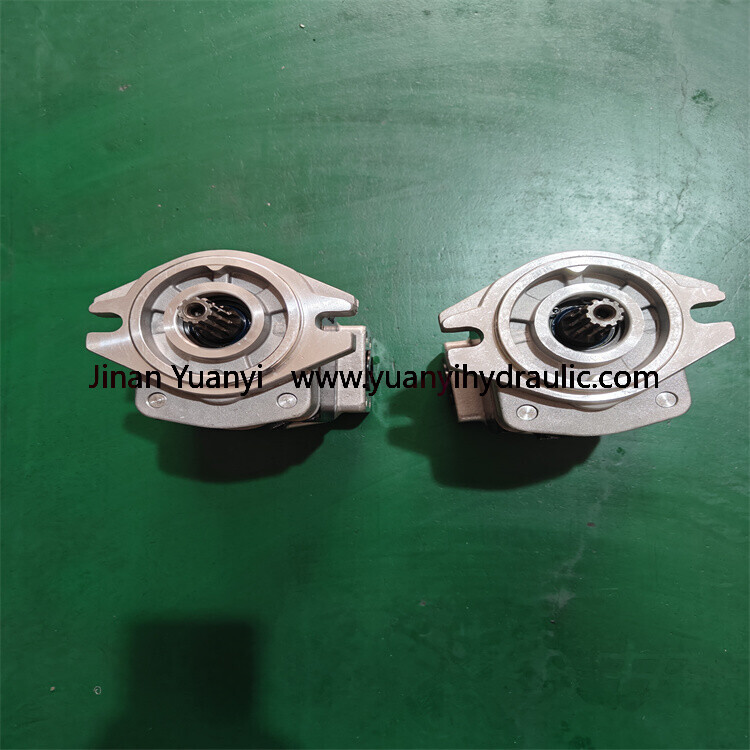

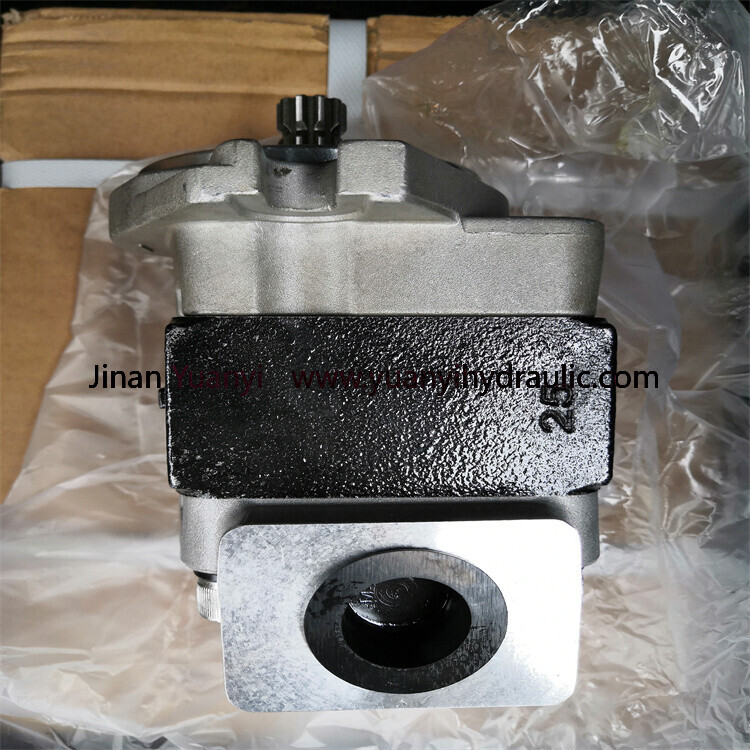

Shimadzu SGP1 SGP2 SGP2-32 SGP2-36 SGP2-40 Hydraulic Gear Pump For Forklift

1 Light weight, compact structure, body aluminum alloy, high precision molding design
2 High efficiency: precise and detailed structural design, this series of gear pumps with high volume rate and high  mechanical efficiency
3 Low noise
4 Stable operation and long working life
Model
Nominal displacement (m/r )
Pressure (Mpa)
Rotation speed(r/min)
Inlet pressure (Mpa)
Weight (kg)
Rated
Max
Min
Max
SGP2-32
32
24.5
29.4
400
3000
-0.02~0.2
5.7(5.1)
SGP2-36
36
3000(2500)
5.9(5.3)
SGP2-40
40
22.6
27.5
6.1(5.4)
SGP2-44
44
20.6
24.5
6.3(5.6)
SGP2-48
48
18.6
22.6
3000(2500)
6.6 (5.9)
SGP2-52
52
17.2
20.6
6.8 (6.1)
