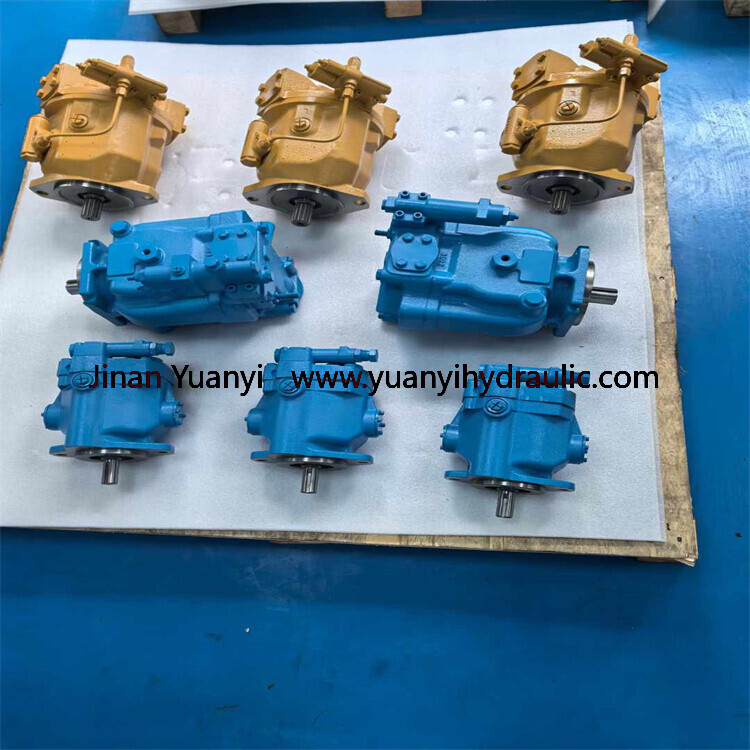

Vickers PVB Variable piston pump,PVB5, PVB6, PVB10, PVB15, PVB20, PVB29, PVB45 Hydraulic Pump

Vickers PVB axial piston pumps are available in fixed and variable displacement types, enabling high performance

and efficiency with a wide range of hydraulic fluids. Fixed displacement pumps are known for their high volumetric

and mechanical efficiency, while variable displacement pumps are able to precisely match pressure and/or flow

requirements.

Eaton PVB and PFB series pumps include variable and fixed displacement axial piston pumps that provide excellent

performance with a wide range of hydraulic fluids.

Fixed displacement pumps:

Three displacement sizes available:

PFB5: 10.55 cc/rev

PFB10: 21.40 cc/rev

PFB20: 42.80 cc/rev

Variable displacement pumps:

Pressure and/or flow requirements can be precisely met with a variety of control options:

Pressure compensator with or without remote control facility

Pressure compensator with adjustable displacement control

Load sensing compensator

Mechanical (lever) control

Handwheel control

Eight displacement sizes available:

PVB5: 10.55 cc/rev

PVB6: 13.81 cc/rev

PVB10: 21.10 cc/rev

PVB15: 33.0 cc/rev

PVB20

PVB29: 61.60 cc/rev

PVB45: 94.50 cc/rev

PVB90: 197.50 cc/rev

Vickers piston pumps can operate at pressures up to 210 bar (3000 psi) and drive speeds up to 3600 rpm.

Send us the part number you need and get an immediate quote.
