Product Description

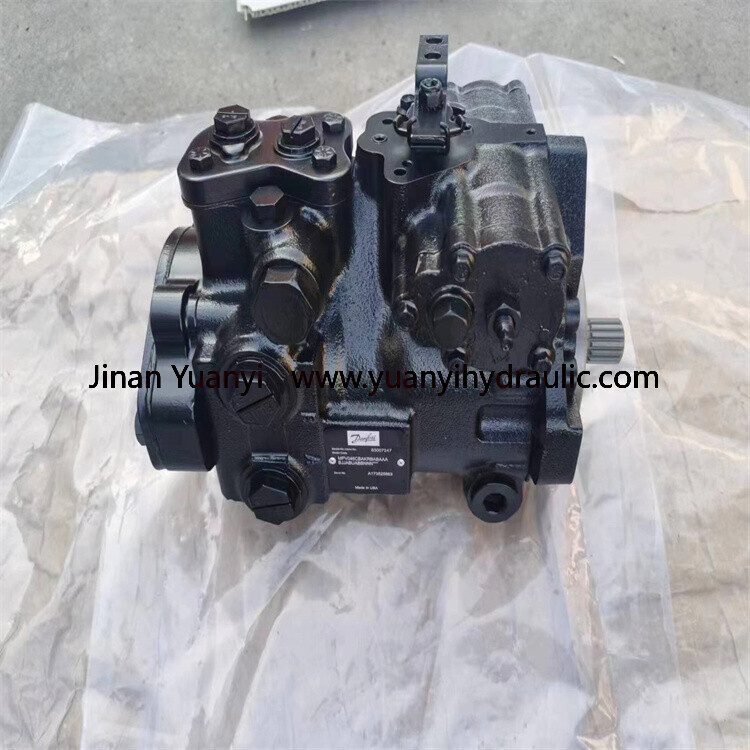

Sauer MPT35 MPT44 MPT46 Hydraulic Aixal Piston Pump, MPT046 Hydraulic Pump

MPV MPT series  hydraulic pump is an efficient and reliable hydraulic transmission device, commonly used in industrial, construction and agricultural machinery and other fields. It belongs to the plunger hydraulic pump type, usually with high working pressure and good durability, suitable for occasions requiring high performance and long-term stable operation.

ModelMPV25MPV35MPV44MPV46MPT25MPT35MPT44MPT46
Pump ConfigurationSingle Variable PumpTandem Variable Pump
Displacement  cm3/rev (in3/rev)24.6
(1.50)		35.0
(2.14)		43.5
(2.65)		46.0
(2.81)		24.6 x 2
(1.50 x 2)		35.0 x 2
(2.14 x 2)		43.5 x 2
(2.65 x 2)		46.0 x 2
(2.81 x 2)

Moment of Inertia
kgm2  (lbft2)		0.0018
(0.043)		0.0031
(0.072)		0.0030
(0.071)		0.0050
(0.120)		0.0037
(0.088)		0.0061
(0.145)		0.0060
(0.140)		0.0100
(0.240)
Mounting (SAE flange)SAE "B"SAE "B"SAE "B"SAE "B"SAE "B"SAE "B"SAE "B"SAE "B"
Port ConnectionsTwinTwinTwinTwinTwinTwinTwinTwin
Integral Charge Pump (std)
cm3/rev (in3/rev)		/11.8
(0.72)		11.8
(0.72)		13.9
(0.85)		/16.4
(1.00)		16.4
(1.00)		22.9
(1.40)
Charge Relief Valve
bar (psi)		14.0
(200)		14.0
(200)		14.0
(200)		19.5
(285)		14.0
(200)		14.0
(200)		14.0
(200)		19.5
(285)
System Pressure Regulation
Settings: bar (psi)		140-345 (2030-5000)
Displacement Limiters---Option---Option
