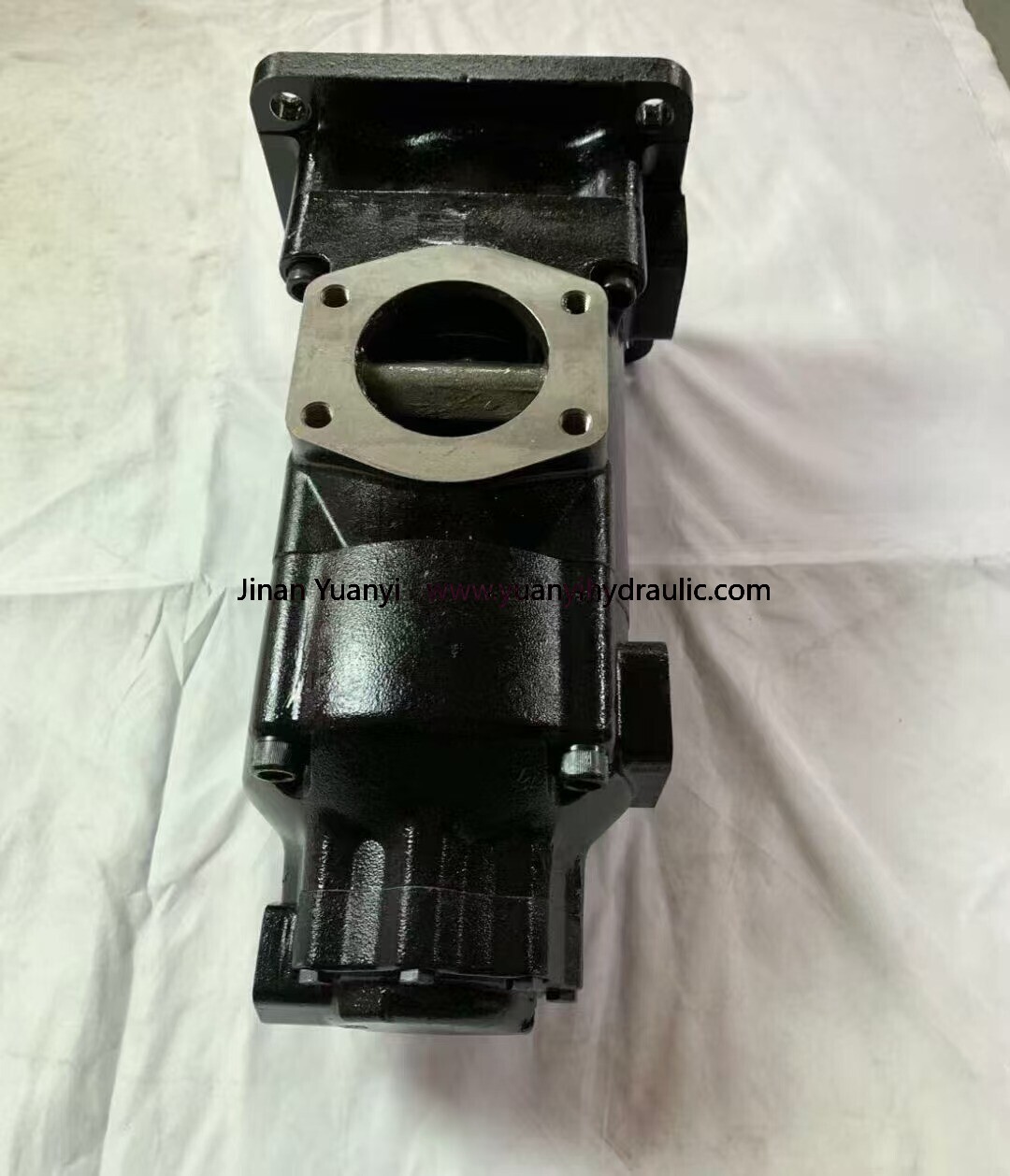

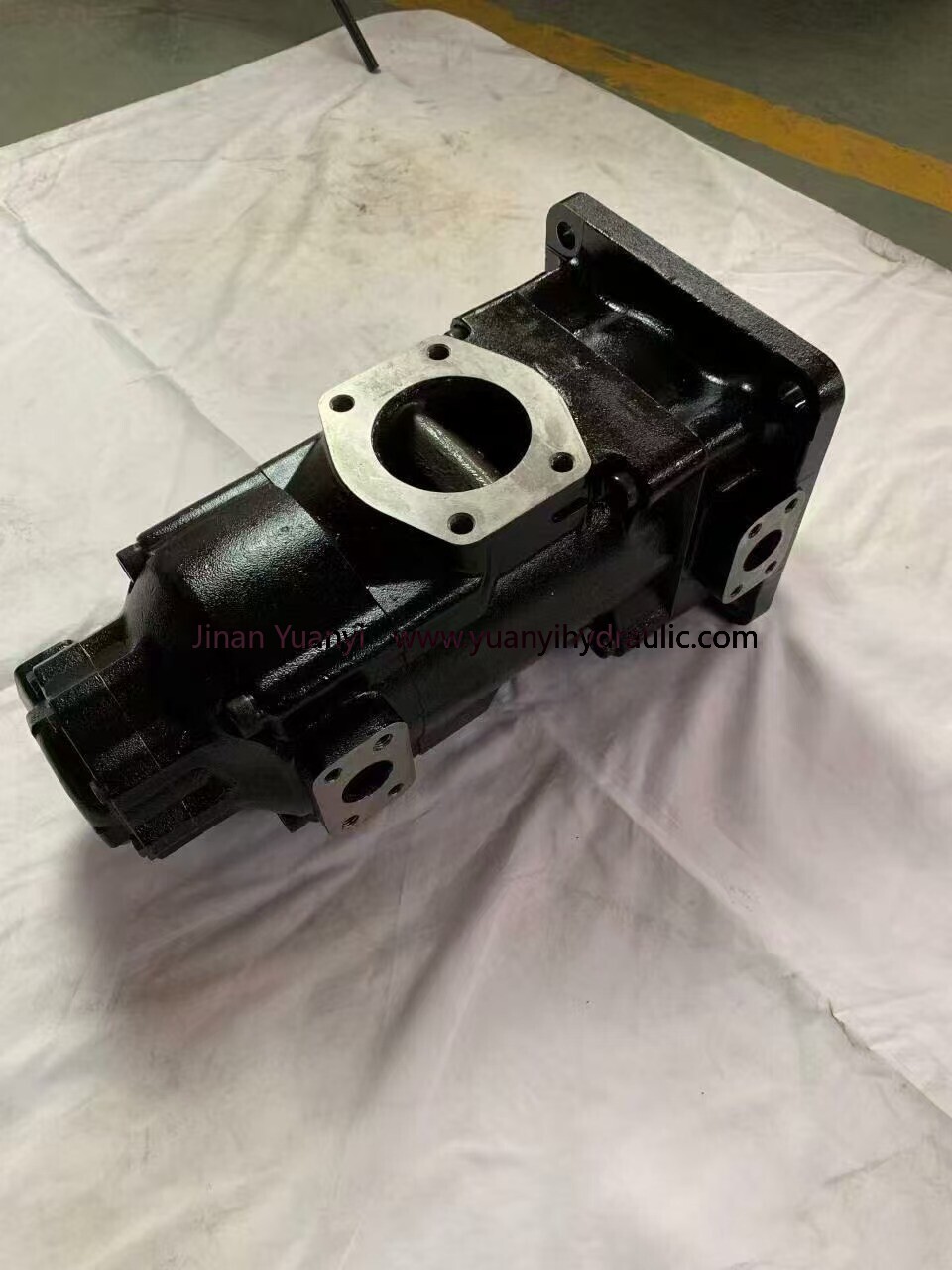

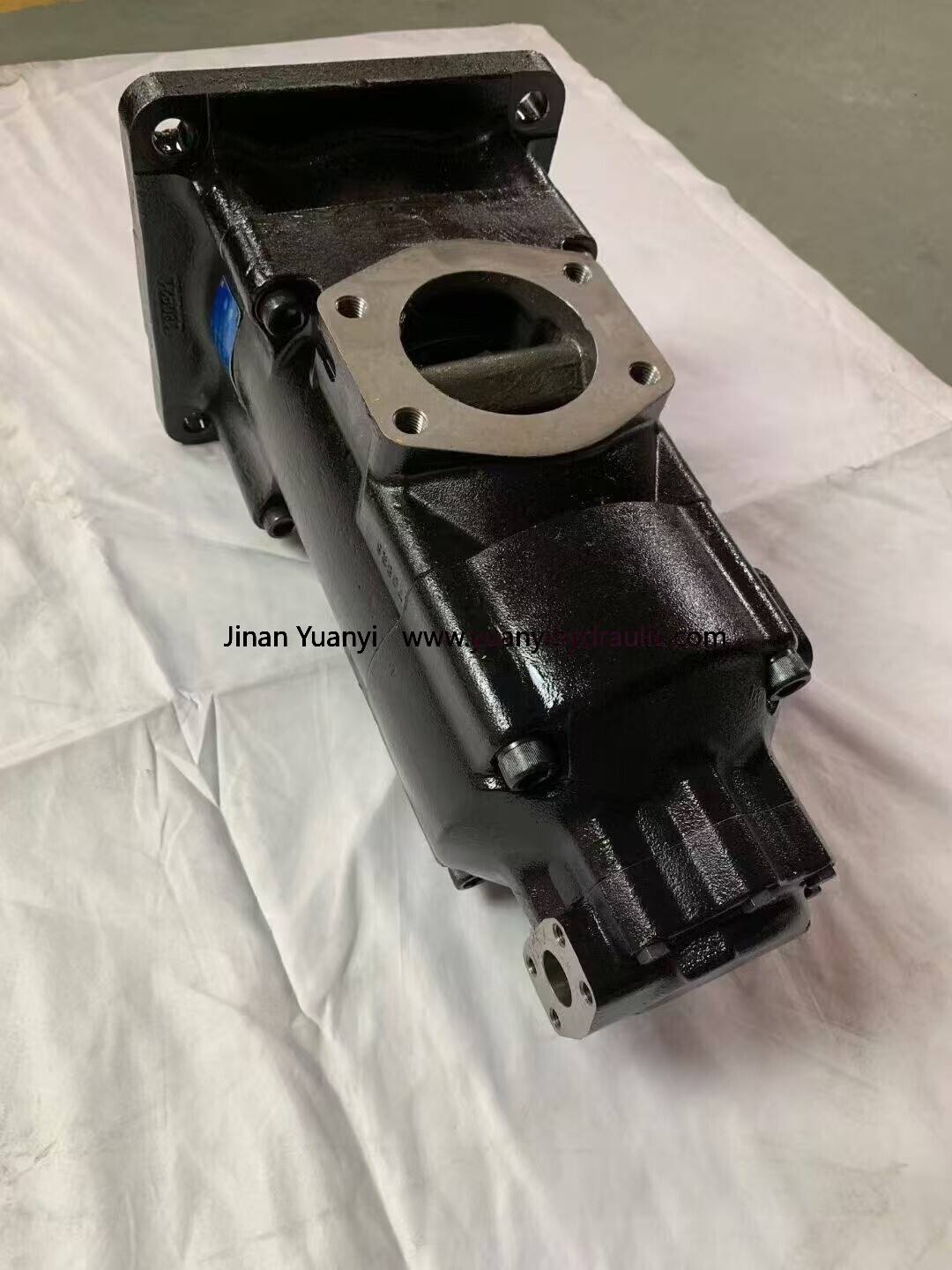

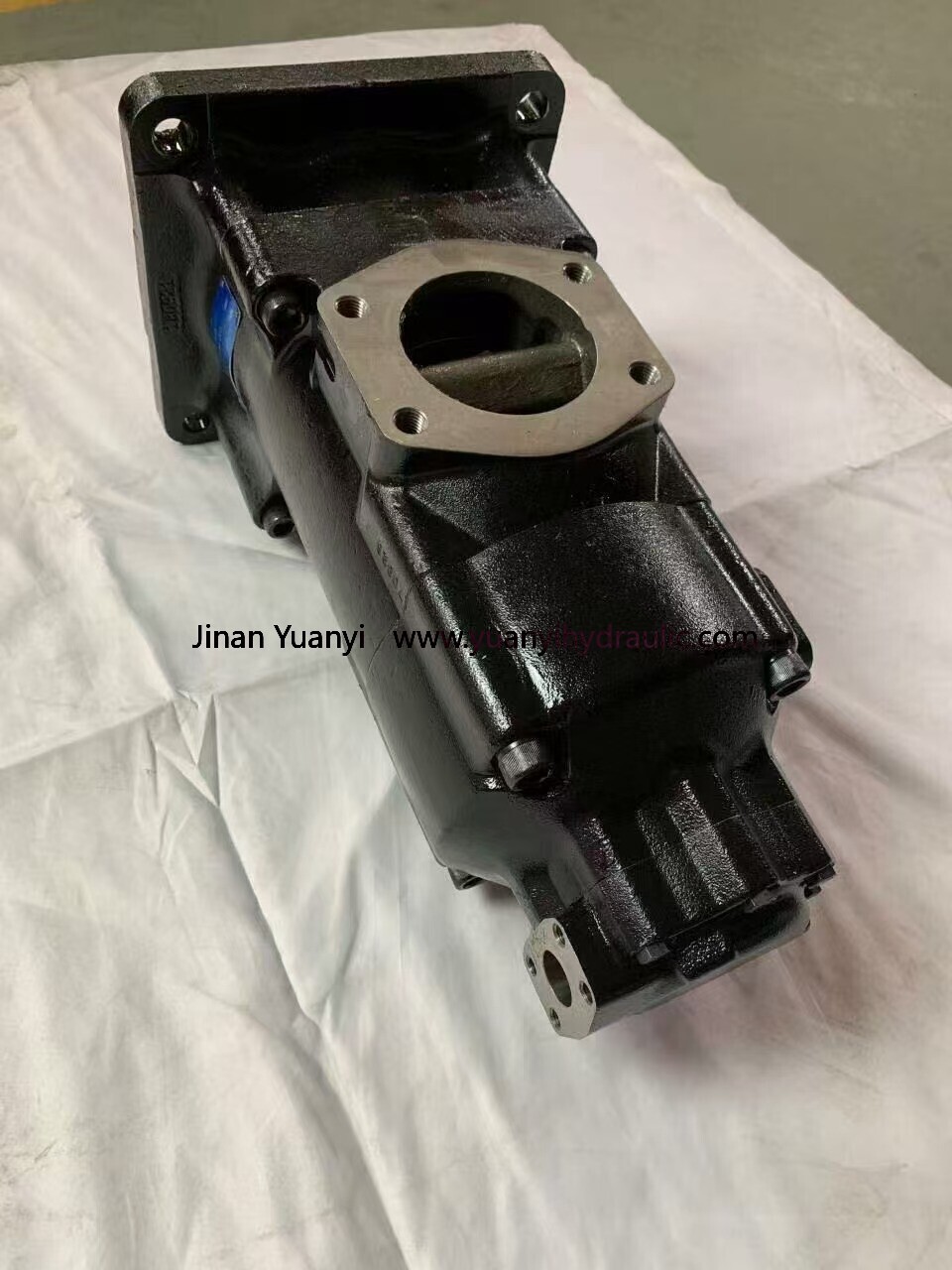

Name: Parker T6ED T6EE pump hydraulic,T6EE T6CC T6EC double vane pump, T7EE T7BB triple pump T7EEC T6EDC Hydraulic Pump
SKU: 0



Parker T6ED T6EE pump hydraulic,T6EE T6CC T6EC double vane pump, T7EE T7BB triple pump T7EEC T6EDC Hydraulic Pump

Product Description

Leave Your Message

Products Recommended

CONTACT

TEL



T6C	-17	-1	R	0	-A	1
Code of series	Displacement code	Shaft type	Direction of rotation	Outlet port position	Design No.	Sealing level
T6C	03, 05, 06, 08, 10, 12, 14, 17, 20, 22, 25, 28, 31	See of Shaft	(Viewed from the shaft end of pump)			1-S1, NBR Nitrile rubber 5-S5, Fluoro rubber
T6C	03, 05, 06, 08, 10, 12, 14, 17, 20, 22, 25, 28, 31		R-Clockwise rotation L-Counterclockwise rotation	00-Opposite inlet port 01-Inline with inlet 02-90°CCW from inlet 03-90° CW from inlet	A
T6D	14, 17, 20, 24, 28, 31,35,38, 42,45, 50, 61
T6E	42, 45, 50, 52, 57, 62, 66, 72, 85

T6DCC	-42	-17	-10	-1	-R	2	-A	1	1
Code of series	Displacement of front pump	Displacement of middle pump	Displacement of rear pump	Shaft type	Rotation	Port positions	Desiqn NO.	Sealing level	Port dimensions

T6CCC	14, 17, 20, 24, 28, 31, 35, 38, 42, 45, 50, 61	03,05, 06, 08, 10, 12, 14, 17, 20, 22, 25, 28, 31	03, 05, 06, 08, 20, 22, 25, 28, 10, 12, 14, 17, 31	See of shaft	(Viewed from shaft end of pump) R-Clockwise Rotation L-Counter clockwise rotation	See pictures below	A	1-SI NBR Nitrile rubber 5-S5 Fluoro rubber	00,01 See installation dimensions

T6DCCS	14, 17, 20, 24, 28, 31,35, 38, 42, 45, 50,61,	14, 17, 20, 24, 28, 31, 35, 38, 42, 45, 50, 61	03, 05, 06, 08, 10, 12, 14, 17, 20, 22, 25, 28, 31
T6EDC	42, 45, 50, 52, 57, 62, 66, 72, 85	14, 17, 20, 24, 28, 31, 35, 38, 42, 45, 50, 61	03, 05, 06, 08, 10, 12, 14, 17, 20, 22, 25, 28, 31
T6EDCS
