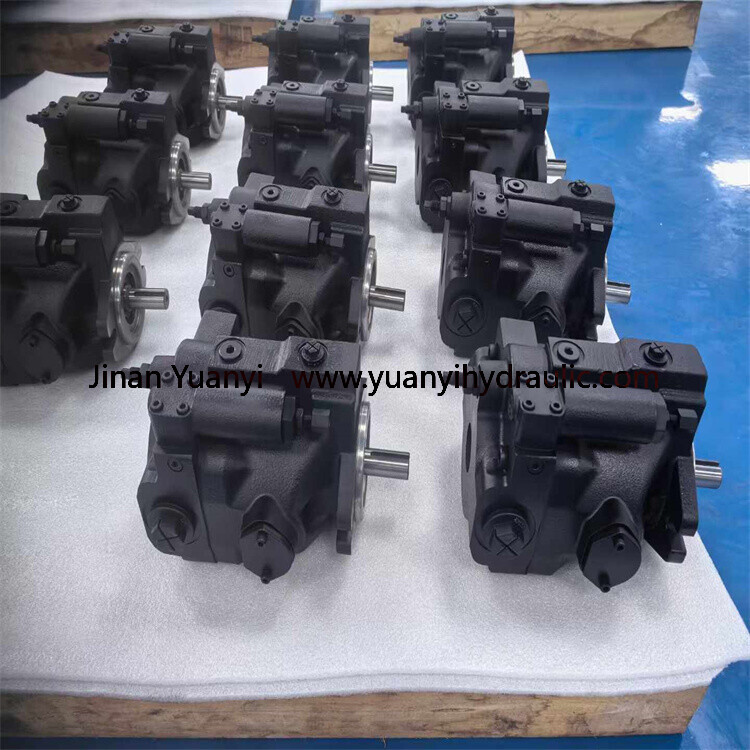

Parker PVP Hydraulic Piston Pump,PVP16 PVP23 PVP33 Series Hydraulic Pump

Parker PVP Hydraulic Piston Pump,PVP16 PVP23 PVP33 Series Hydraulic Pump

Product Description

Parker PVP Hydraulic Piston Pump,PVP16 PVP23 PVP33 Series Hydraulic Pump

Parker PVP SERIES Pump High Strength Cast-lron Housing for Reliabilityand Quiet Operation

Optional Inlet/Outlet Locations for Ease

of InstallationReplaceable Bronze Port PlateReplaceable Piston Slipper PlateThru-Shaft Capability SAE AA, A andB

Low Noise Levels

Fast Response TimesMetric Pilot Shaft and Ports Available

Pump Model	Displacement cc/rev (In³/rev)	Pump Delivery @21 bar (300 PSI) in LPM(GPM)		Input Power A 1800 RPM,Max. Displacement & 248 bar (3600 PSI)	Operating Speed (RPM) (Maximum)	Pressure bar (PSl) Continuous (Maximum
Pump Model	Displacement cc/rev (In³/rev)	1200 RPM	1800 RPM		Operating Speed (RPM) (Maximum)	Pressure bar (PSl) Continuous (Maximum
PVP16	16(.98)	19.7(5.2)	29.5(7.8)	13.1 kw(17.5 hp)	3000	248(3600)
PVP23	23(1.4)	28.0(7.4)	42.0 (11.1)	19.7 kw(26.5 hp)	3000	248(3600
PVP33	33(2.0)	39.4 (10.4)	59.0 (15.6)	27.2 kw(36.5 hp)	3000	248(3600
PVP41	41(2.5)	49.2 (13.0)	73.8 (19.5)	33.2 kw(44.5 hp)	2800	248(3600
PVP48	48(2.9)	57.6(15.2)	86.4 (22.8)	40.3 kw(54.0 hp)	2400	248(3600)

Parker PVP piston pump is a high-pressure liquid pump used in liquid transmission and pressurization systems in

industrial fields. In application fields such as petroleum industry, chemical industry and metallurgical industry,

Parker PVP piston pumps play an important role.

In the petroleum industry, Parker PVP piston pumps can be used to transport various oil and natural gas products,

such as crude oil, fuel oil, lubricating oil, etc. In the chemical industry, it can be used to transport various chemical

raw materials and products, such as acids, alkalis, salts, organic solvents, etc. In the metallurgical industry, PVP piston

pumps can be used to transport liquid metal in various metal smelting processes.
