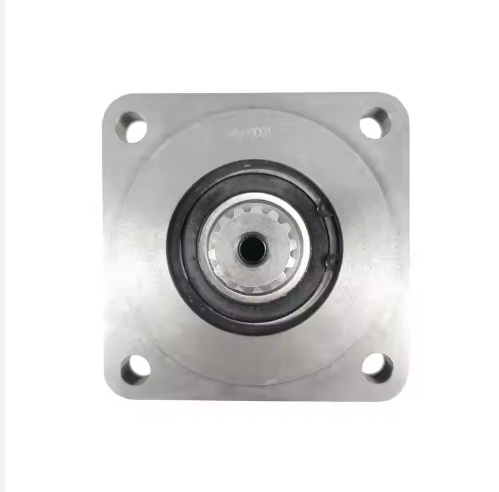

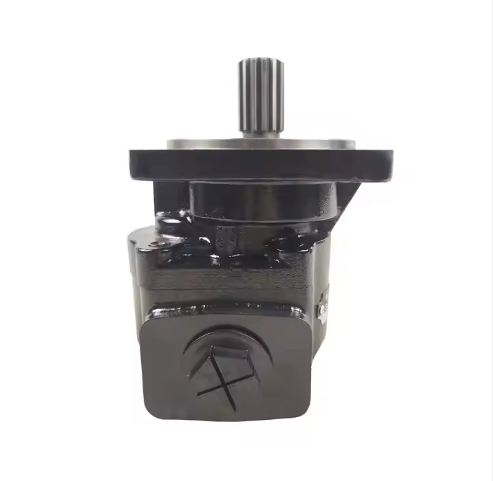

Name: Parker PGP505 Hydraulic Gear Pump, Parker PGP505 Heavy-duty aluminium Hydraulic Pump
SKU: 0



Parker PGP505 Hydraulic Gear Pump, Parker PGP505 Heavy-duty aluminium Hydraulic Pump

Product Description

Parker PGP505 Hydraulic Gear Pump, Parker PGP505 Heavy-duty aluminium Hydraulic Pump

Pump Displacement	Code	0030	0040	0050	0060	0070	0080	0100	0110
Pump Displacement	cm³/rev	3.0	4.0	5.0	6.0	7.0	8.0	10.0	11.0
Max.Continuous Pressure	bar	275	275	275	275	275	275	250	250
Minimum Speed Max.outlet pressure	rpm	500	500	500	500	500	500	500	500
Maximum Speed @0 Inlet &Max.outlet pressure	rpm	4000	4000	4000	3600	3300	3000	2800	2400
Pump Input Power Max.Pressure and 1500 rpm	kW	2.3	3.0	3.8	4.5	5.3	6.0	6.9	7.6
Dimension "L"	mm	41.1	43.8	46.5	49.1	51.8	54.5	59.8	62.5
Approximate Weight1)	kg	2.22	2.27	2.32	2.38	2.43	2.48	2.58	2.63
