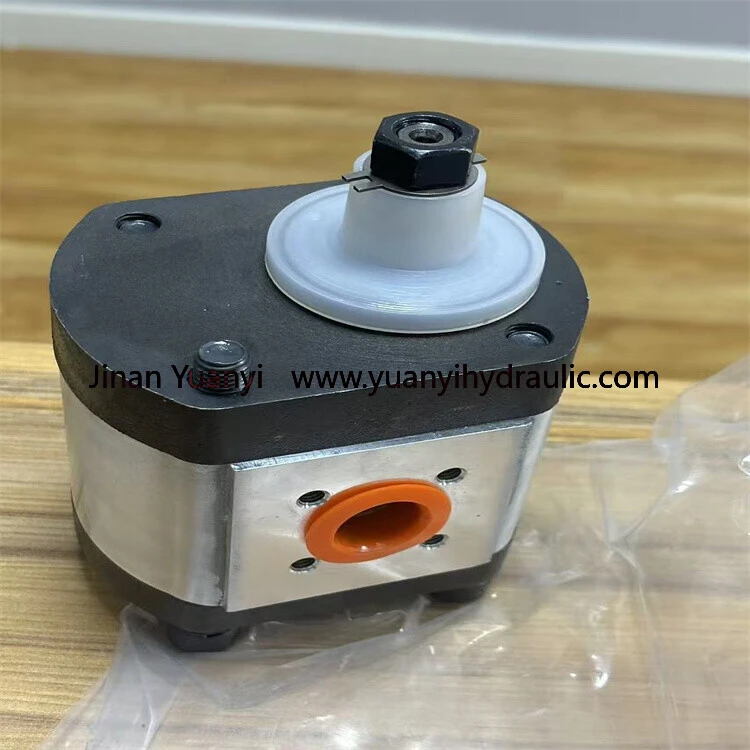

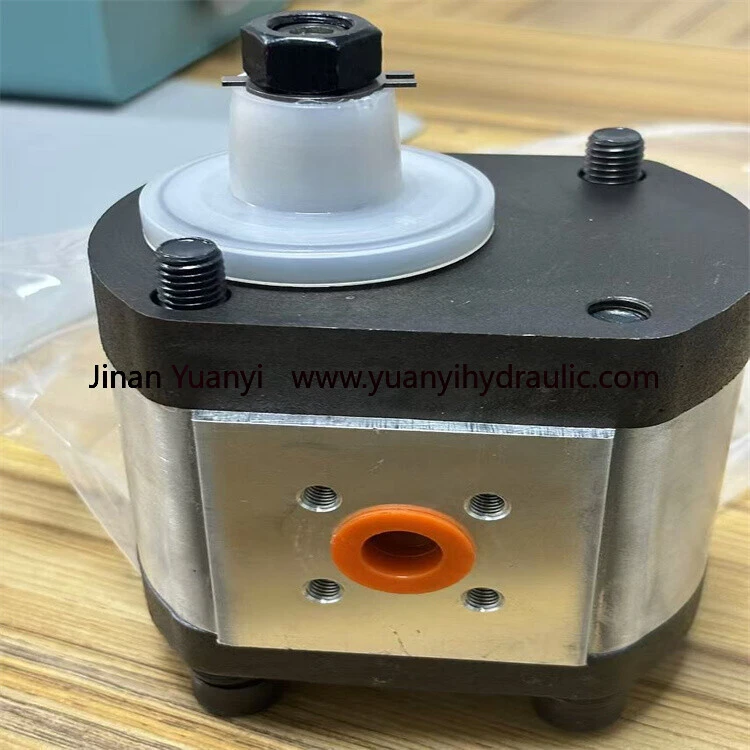

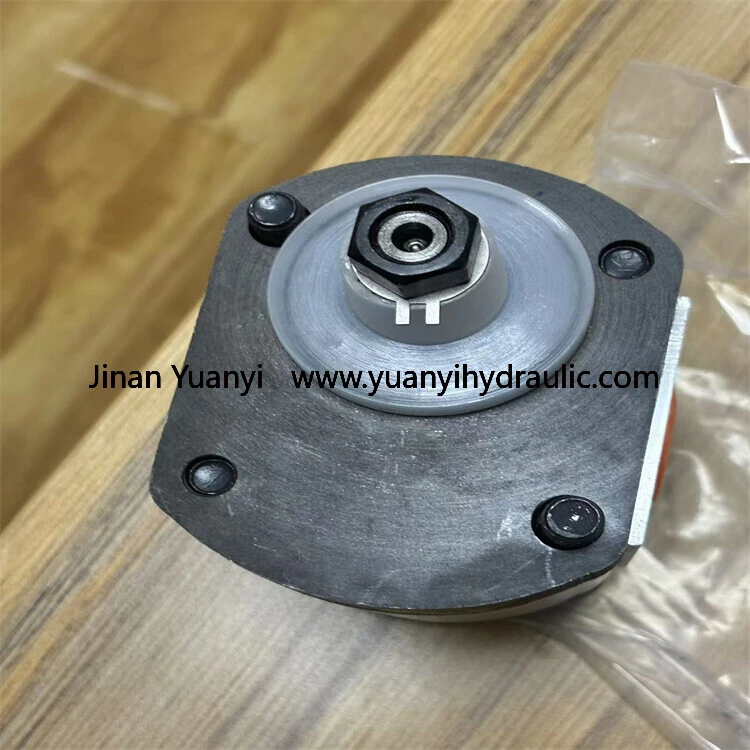

Marzocchi GHP3 Gear Pump,GHP3-D(S)-30 Hydraulic Pump,GHP3-D(S)-33 Oil Pump

Displacement:

The GHP3 gear pump has a displacement of 15 cc/rev.

Pressure rating:

The gear pump has a pressure rating of 300 bar.

Speed range:

The gear pump operates from 500 to 2500 rpm, providing flexible speed options.

Viscosity range:

The GHP3 gear pump can accommodate viscosities ranging from 10 to 1500 cSt.

Operating temperature:

The GHP3 pump can operate normally in a temperature range of -20°C to +80°C.

Efficiency:

The Marzocchi GHP3 gear pump operates at an efficiency of 90%.

Standard accessories:

Standard pump shaft wrench (code 522058) M 14×1.5 external angle nut (code 523017), washer (code 5230061).

Standard ports: 10 threads, depth 19 mm.
