Product Description

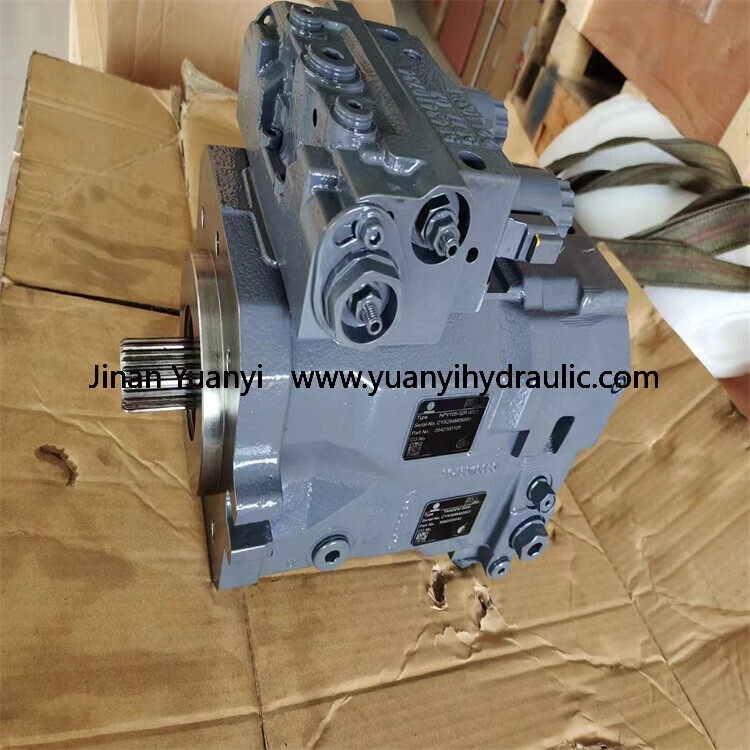

Linde HPV55-02R HPV75-02R HPV105-02R HPV135-02R Hydraulic Variable Piston Pump,HPV135 Hydraulic Pump

HPV-02 Series Variable displacement pumps for closed circuit operation. All controllers used in the 02 series are based on load-independent control mechanisms. Regardless of the controller used: the same command always produces the same response in the machine. Sensitive and precise machine control makes work easier and increases productivity

HPV Series Hydraulic Pump Feature

Axial piston pump in swashplate design for high pressure closed loop systems;

Exact and rugged servo control devices (mechanical, hydraulic, electro-hydraulic);

Charge pressure pumps for internal and external suction.

LINDE HPV Series Hydraulic Pump Technical Parameter

HPV		55	75	105	135	165	210	280
Max.displacement	CC/REV	54.7	75.9	105	135.7	165.6	210.1	281.9
Max.operating speed	Rpm	3900	3400	3200	3000	2750	2300	2400
Max. speed	rpm	4150	3600	3400	3200	2950	2500	2550
Nominal pressure	bar	400	450	450	450	450	450	450
Max. pressure	bar	500	500	500	500	500	500	500
Max.housing pressure	bar	2.5	2.5	2.5	2.5	2.5	2.5	2.5
Torque	Nm	374	519	719	929	1133	1438	1929
Corner power	kW	153	185	241	292	326	246	485
Weight	kg	46	49	66	72	113	132	164
