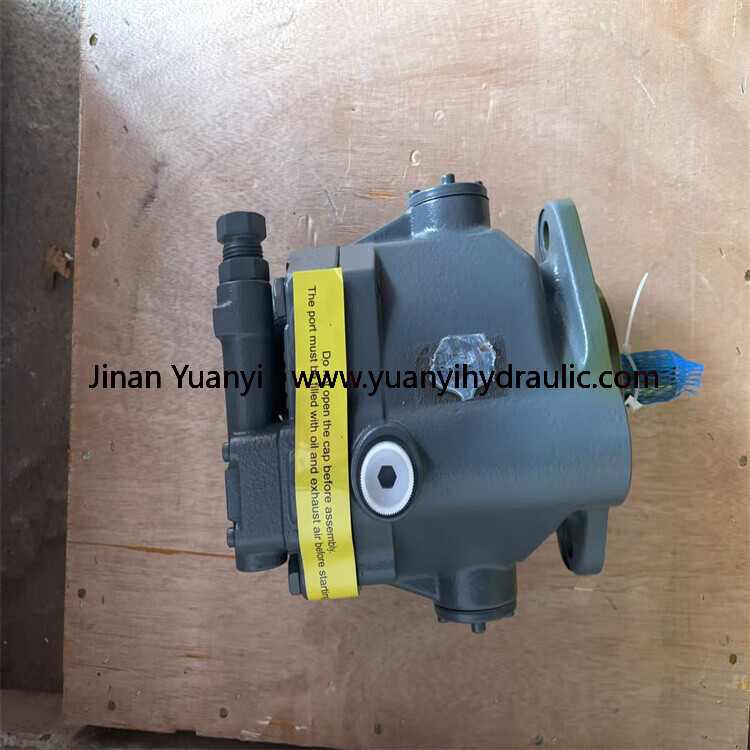

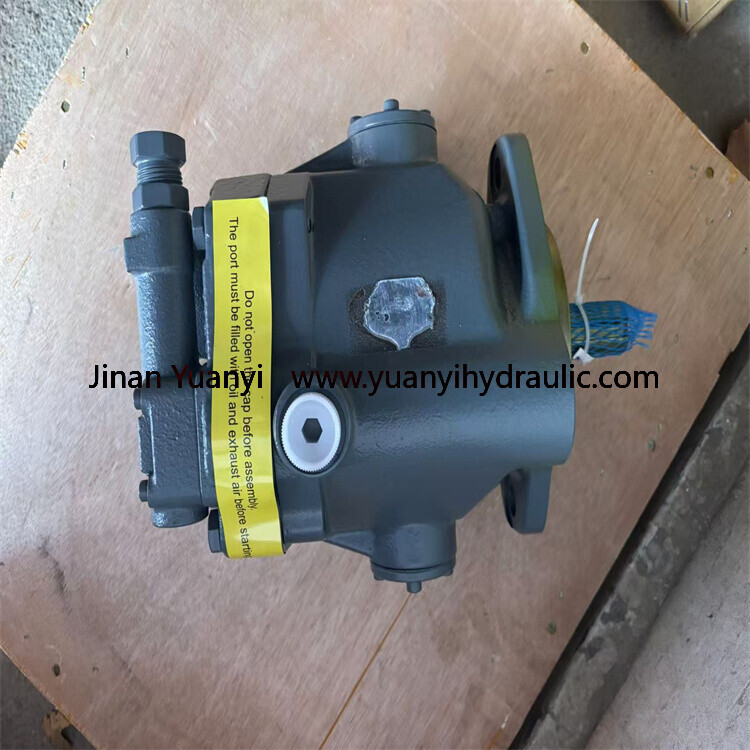

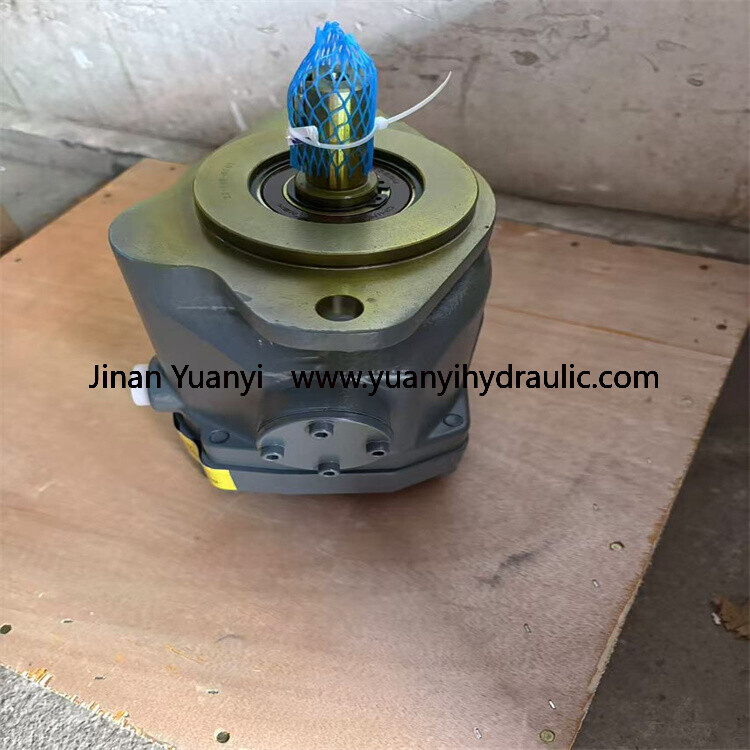

Name: Eaton Vickers PVB5 Series Pump,PVB10 Hydraulic Axial Piston Pump, PVB5-RDY-20-CG-11 Hydraulic Pump
SKU: 0



Eaton Vickers PVB5 Series Pump,PVB10 Hydraulic Axial Piston Pump, PVB5-RDY-20-CG-11 Hydraulic Pump

Product Description

Eaton Vickers PVB5 Series Pump,PVB10 Hydraulic Axial Piston Pump, PVB5-RDY-20-CG-11 Hydraulic Pump

Model	Displacement cm3/r (in3/r)	Maximum shaft speed (r/min)			Maximum outlet pressure bar (psi)
Model	Displacement cm3/r (in3/r)	Anti-wear hydraulic oil	Water-in-oil emulsion (40%/60%)	Water-glycol	Anti-wear hydraulic oil	Water-glycol	Water-in-oil emulsion (40%/60%)
PVB5	10,55 (0.64)	1800	1800	1800	210 (3000)	140 (2000)	140 (2000)
PVB6	13,81 (0.84)				140 (2000)	100 (1500)	100 (1500)
PVB10	21,10 (1.29)				210 (3000)	140 (2000)	140 (2000)
PVB15	33,00 (2.01)				140 (2000)	100 (1500)	100 (1500)
PVB20	42,80 (2.61)				210 (3000)	140 (2000)	140 (2000)
PVB29	61,60 (3.76)				140 (2000)	100 (1500)	100 (1500)
PVB45	94,50 (5.76)				210 (3000)	140 (2000)	140 (2000)
PVB90	197,50 (12.0)		1200	1200	210 (3000)	140 (2000)	140 (2000)
