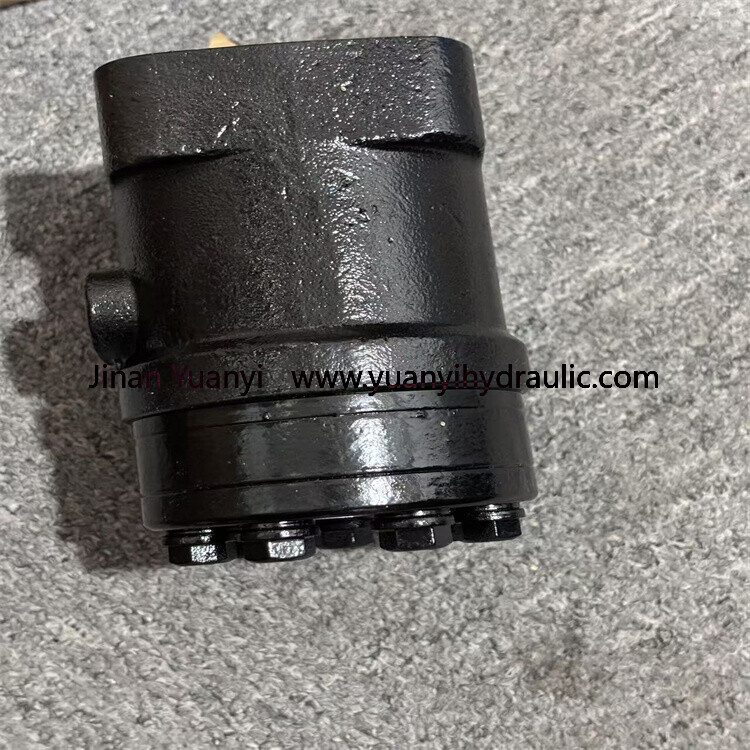

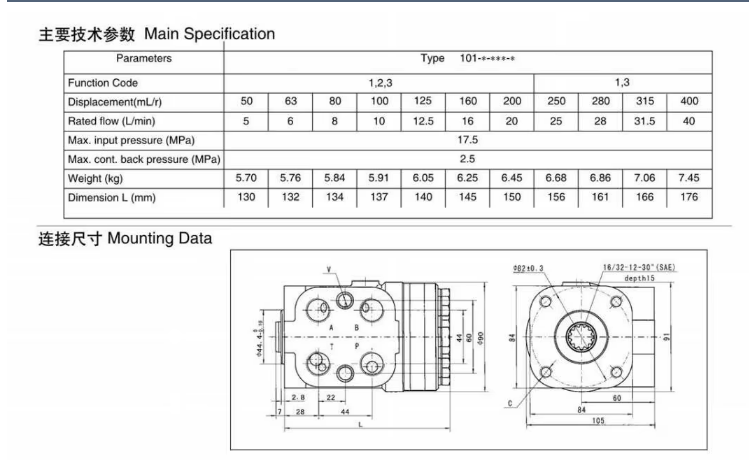

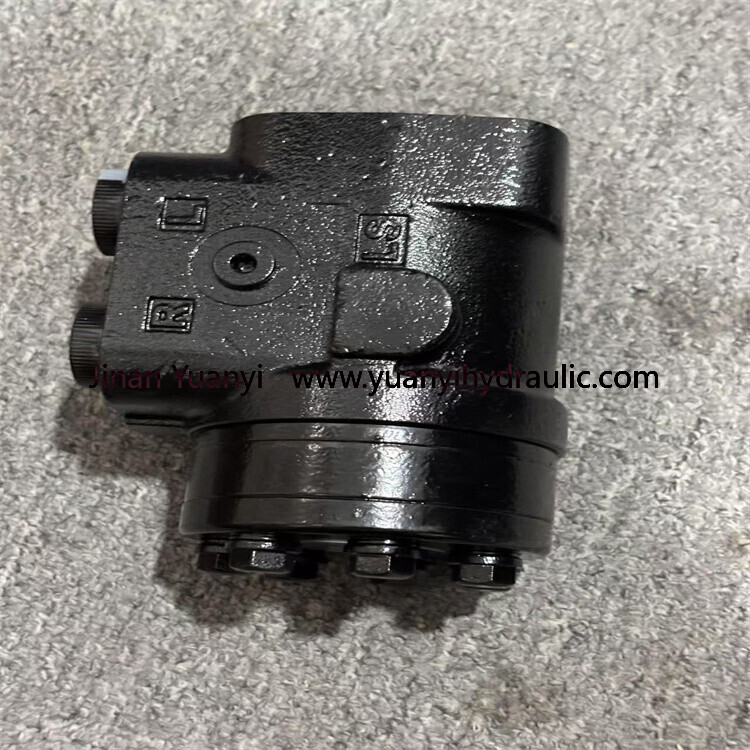

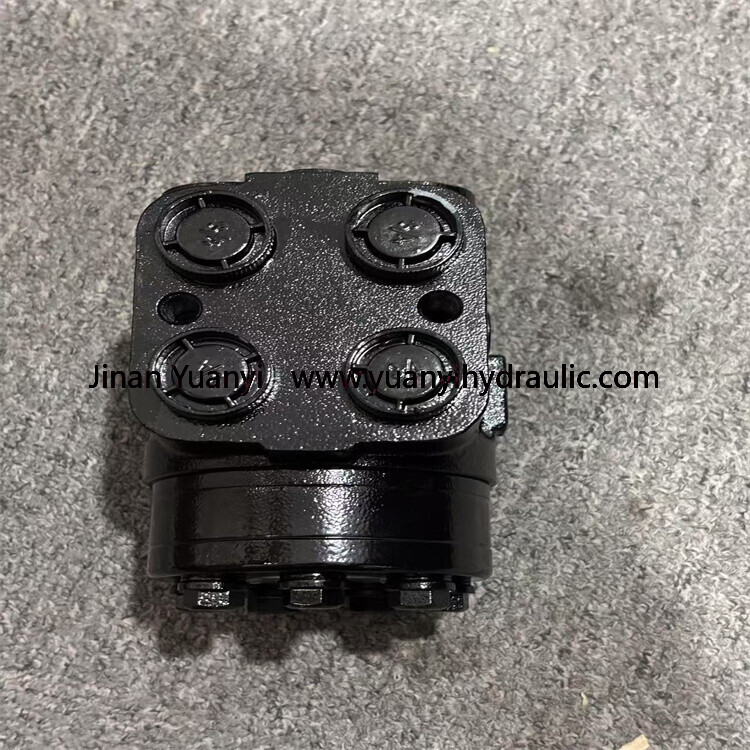

101S series Steering Unit:

101(S)S)-5(T)(TE)(L)(E)(TX) series full hydraulic steering gear is used in load sensing steering system. 101S-5, 101S-5L,

and 101S-5E series full hydraulic steering gears are all in plate connection mode, and are used after plate connection

 with PVF* type priority valve.

The 101S-5L series full hydraulic steering gear leads out the pressure signal of the LS port at the LL port and transmits

the signal to the electrical control system; the 101S-5E series full hydraulic steering gear leads out the pressure signal of

 the A or B oil port at the EL port , to transmit the signal to the electrical control system. 101S-5T, 101S-5TE series full

hydraulic steering gears are pipe-connected and used with PVL* or DYXL, YXL priority valves. 101S-5TE series full

hydraulic steering gear leads out the pressure signal of A or B oil port at the EL interface, and transmits the signal to

 the electrical control system.

1. who are we?

We are based in Shandong, China, start from 2016,sell to North America(10.00%),South America(10.00%),Eastern Europe(10.00%),Mid East(10.00%),Western Europe(10.00%),Central America(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),Southeast Asia(5.00%),Africa(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;

3.what can you buy from us?

Hydraulic Pump,Hydraulic Motor,Hydraulic Valve,Gearbox,Spare Parts
