Product Description

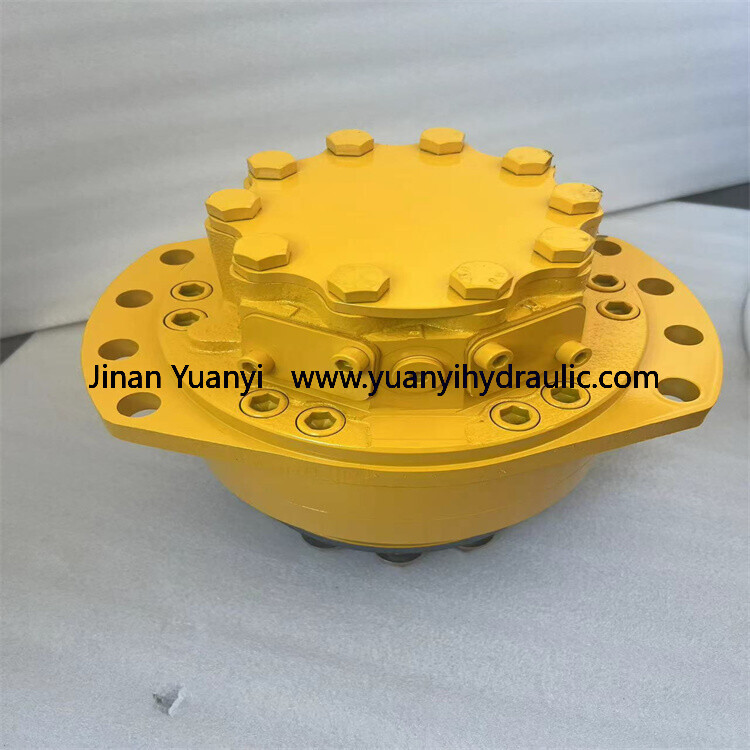

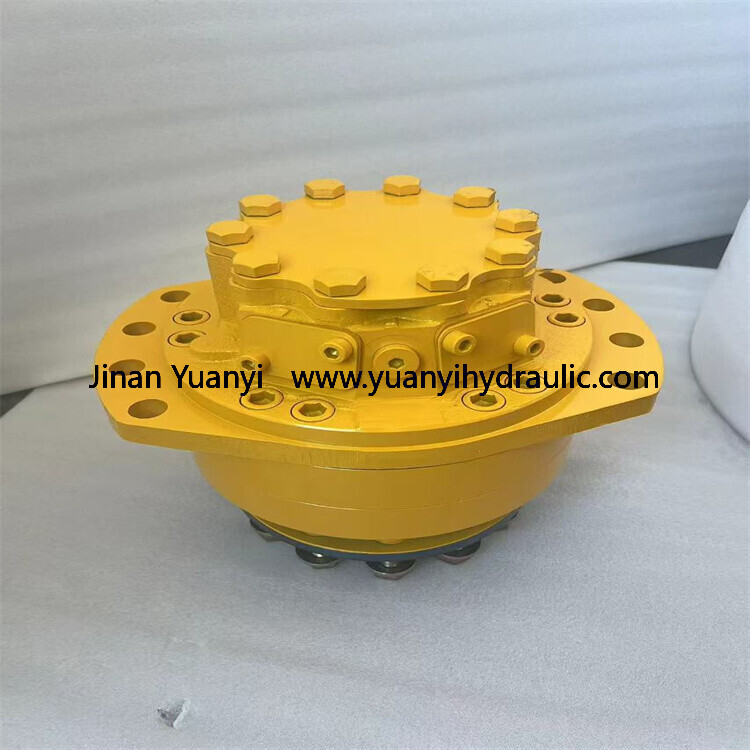

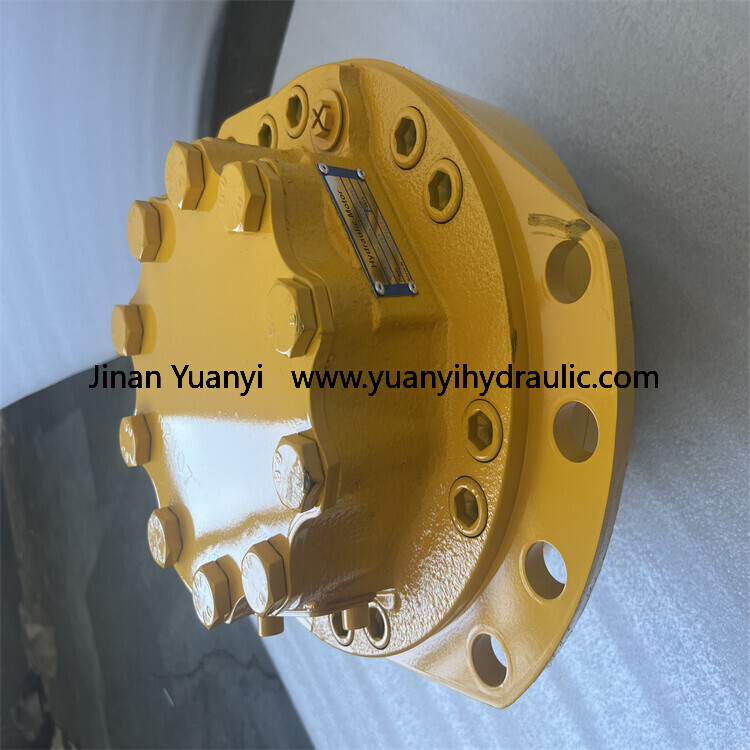

Rexroth MS08 MSE08 Rexroth Hydraulic Motor,MS08 High Torque Radial Piston Motor


Take MS08 MSE08 as example:
Model
MS08





MSE08


Displacement (ml/r)
467
627
702
780
857
934
1043
1146
1248
Theo torque @ 10MPa (N.m)
743
997
1116
1240
1363
1485
1658
1822
1984
Rated speed (r/min)
160
160
125
125
100
100
80
80
80
Rated pressure (Mpa)
25
25
25
25
25
25
25
25
25
Rated torque (N.m)
1530
2050
2300
2550
2800
3050
3400
3750
4100
Max. pressure (Mpa)
31.5
31.5
31.5
31.5
31.5
31.5
31.5
31.5
31.5
Max. torque (N.m)
1890
2500
2800
3150
3450
3750
4200
4600
5050
Speed range (r/min)
0-210
0-210
0-185
0-170
0-155
0-140
0-130
0-110
0-105
Max. power (kW)
Standard disp. 41kW; Variable disp. Prioroty rotation 27kW; Non priority rotation 21kW.

Yuanyi MS and MSE series Multipurpose Hydraulic Motor is an optimized and modular design Radial Piston Motor. Various connection type and out put options such as Wheel flange, Splined shaft, Keyed shaft for deferent usages. It is an ideal drive motor mainly used for agricultural machinery, municipal vehicles, forklift trucks, forestry machinery, and other similar machines.
