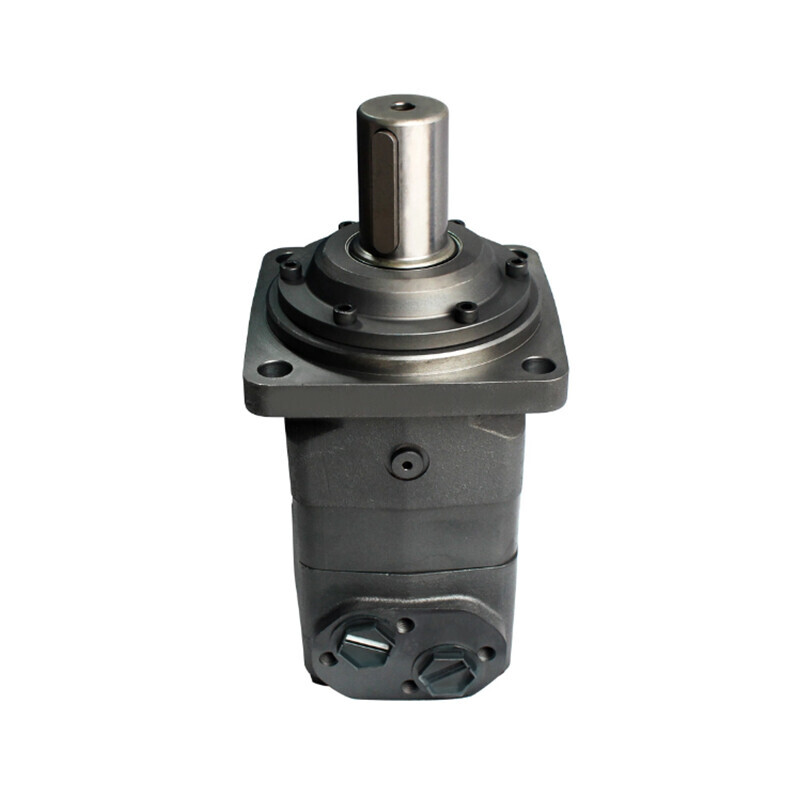

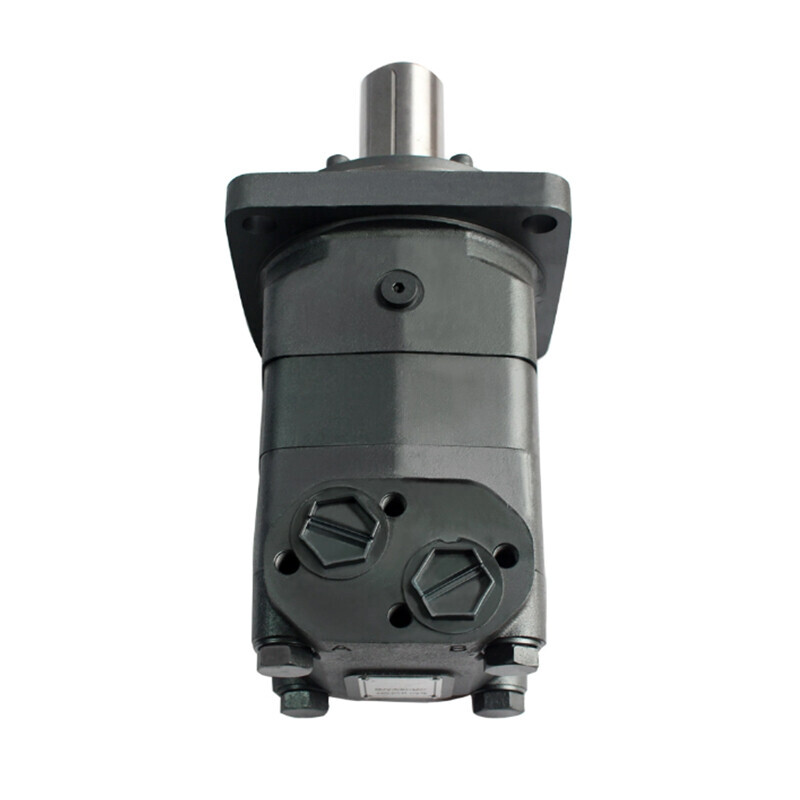

Orbital Motor
OMV315 OMV400 OMV500 series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weigth.
Yuanyi Hydraulic as the largest manufacturer in Northern China, the motor we producing, according to Danfos Series motors,same specification, same flange, same shaft size and port threads.

Product Description

OMV315 OMV400 OMV500 series motor are small volume, economical type, which is designed with shaft distribution flow, which adapt the Gerotor gear set design and provide compact volume, high power and low weigth.


Yuanyi Hydraulic as the largest manufacturer in Northern China, the motor we producing, according to Danfos Series motors,same specification, same flange, same shaft size and port threads.


TypeOMV 315OMV 400OMV 500OMV 630OMV 800OMV 1000
Geometric displacement (cm3 /rev.)333419518666801990
Max. speed (rpm)cont.510500400320250200
int.630600480380300240
Max. torque (N·m)cont.92011801460166018802015
int.111014101760194021102280
peak129016402050221024702400
Max. output (kW)cont.384747403328.6
int.465656564440
Max. pressure drop (MPa)cont.202020181614
int.242424211816
peak282828242118
Max. flow (L/min)cont.160200200200200200
int.200240240240240240
Weight (kg)31.832.633.534.936.538.6
