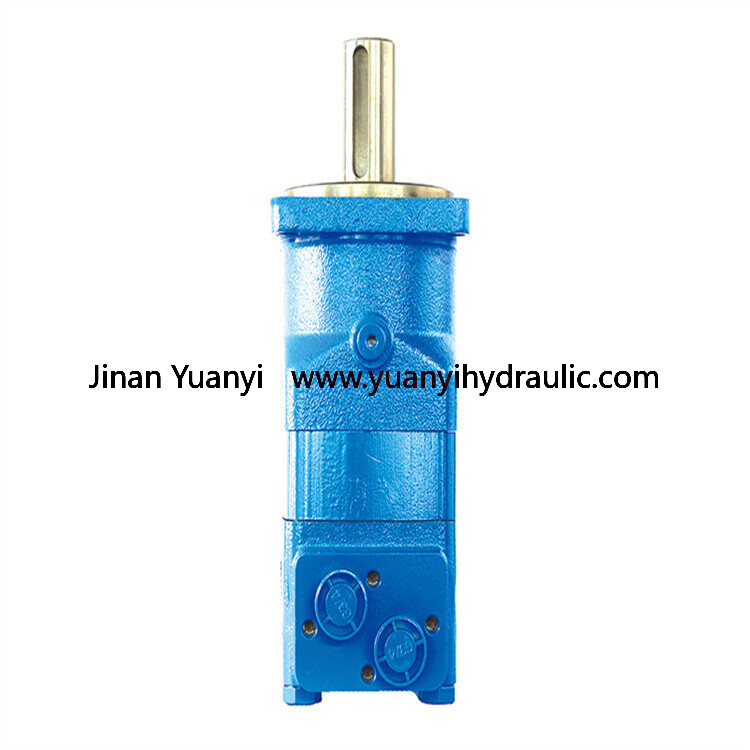

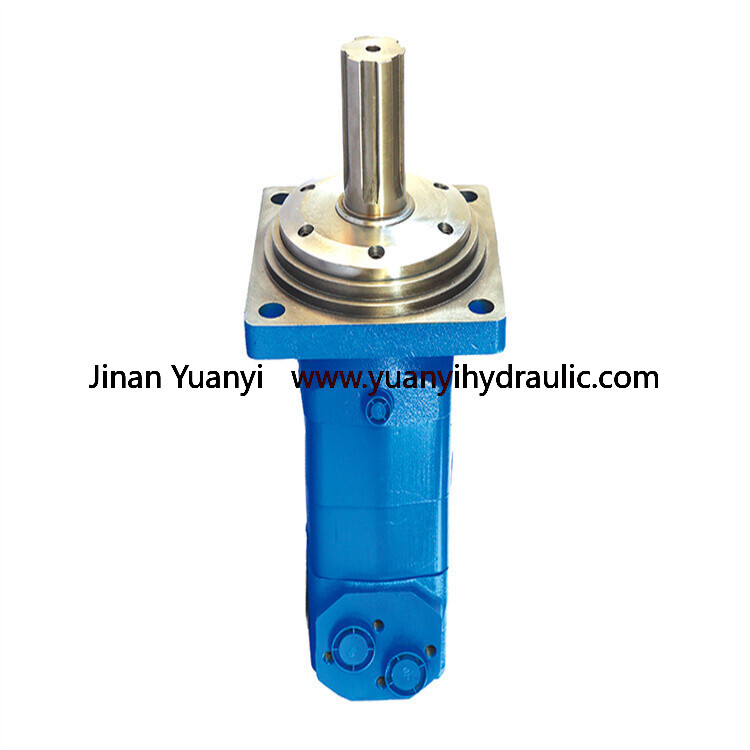

OMM OMP OMR OMS OMT OMV Orbtial Motor，BMV BMT Hydraulic Motor

We are Specializing in design, manufacturing and sales of hydraulic product include hydraulic orbital motor, radial piston motor, hydraulic pump, hydraulic steering control unit, oil cooler,  hydraulic system and more, with over 15 years experience onproducts research and development.

      Orbital motor from small OMM type to large torque OMS, OMT and OMV series.

OMP36, OMP50, OMP80, OMP100, OMP125, OMP160, OMP200, OMP250, OMP315, OMP400

Displacement: 36mrL-400mr/L

Rotational speed range: 5 - 775 rpm;

Maximum pressure: 140/225 (continuous/peak);

Maximum power: 4 - 10 kW.

Flange: 2-Hole rhombus Flange, 4-Hole rhombus Flange, 4-Hole Square Flange

Shaft: Cylindrical Shaft Φ25, Φ25.4, Φ32. Splined Shaft Φ25.4, Φ30. Cone Shaft Φ28.56

Oil port: G1/2, M18×1.5, M22×1.5, 7/8-14UNF, NPT 1/2

Q: How to guarantee the same?

A: Before sending, I will take pictures. After confirmation, I send.

Q: When to ship?

A: Once getting payment then arrange.

Q: Import customs fee?

A: It depends on import country. I can make lower valve so that you can pay lower customs fee even no need to pay.

Q: How long for transport?

A: For express/ air, it takes about 5 days. For land/ sea, it takes about one month. It depeds on your address.

Q: Product usage?

A; If any problem about usage, I will solve at first time.
