Product Description


Parker F12 Piston Motor,F12-30,F12-40,F12-60,F12-80,F12-90,F12-110 Hydraulic Motor

Parker F12 is a bent axis, fixed displacement heavy duty motor/pump range. They can be used in numerous applications in both open and closed loop circuits.

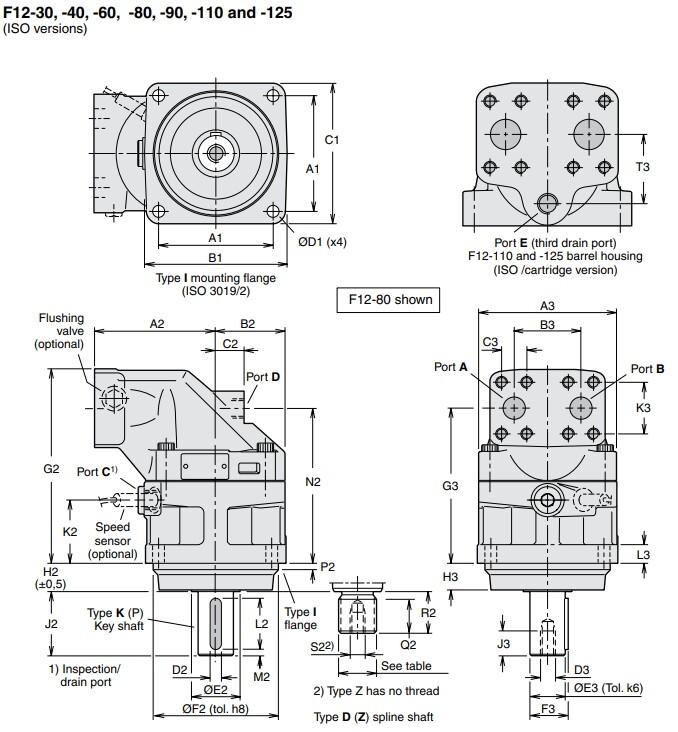

• The F12 range complies with current ISO and SAE mounting flanges and shaft end configurations. A very compact cartridge version is also available.

• Due to the unique spherical piston design, the F12 motor can be used for exceptionally high shaft speeds.

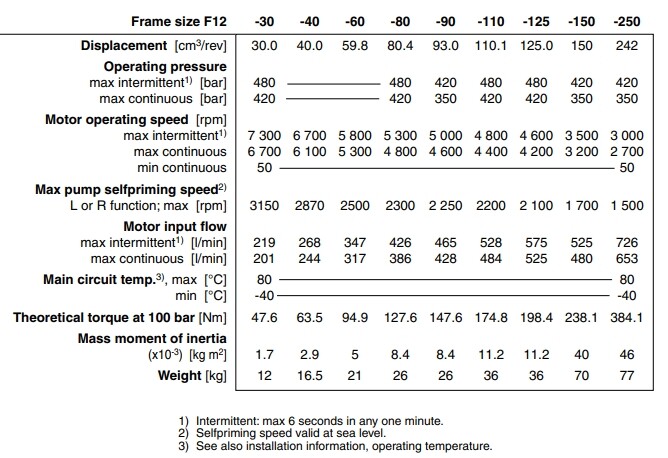

Operating pressures up to 480 bar provide high output power capabilities.

• Our unique timing gear design synchronizes the shaft and cylinder making the F12 very tolerant of high “G” forces and torsional vibrations.

• The 40° angle between shaft and cylinder allows for a very compact, lightweight motor/pump.




F11 1.jpg


pv23 pump parts.jpg
