Product Description

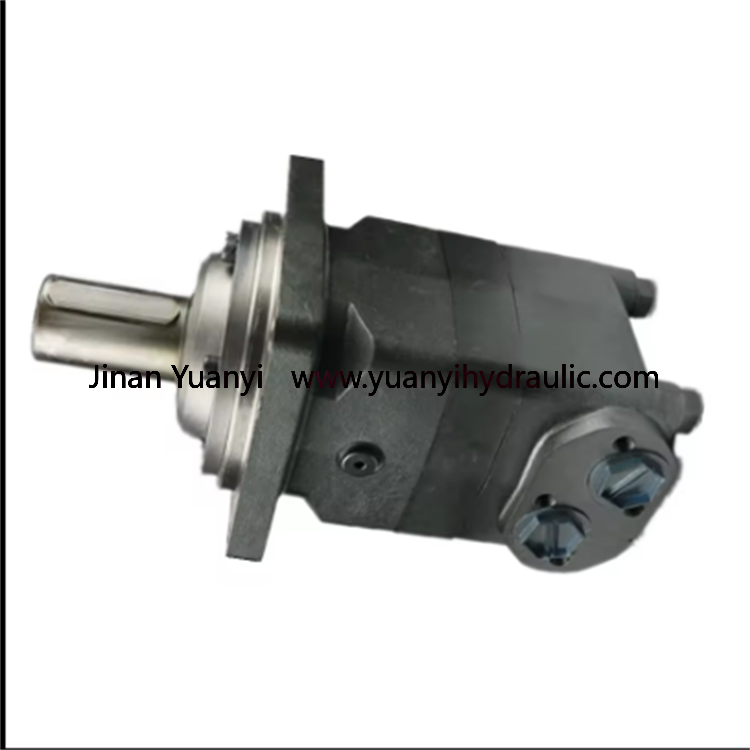

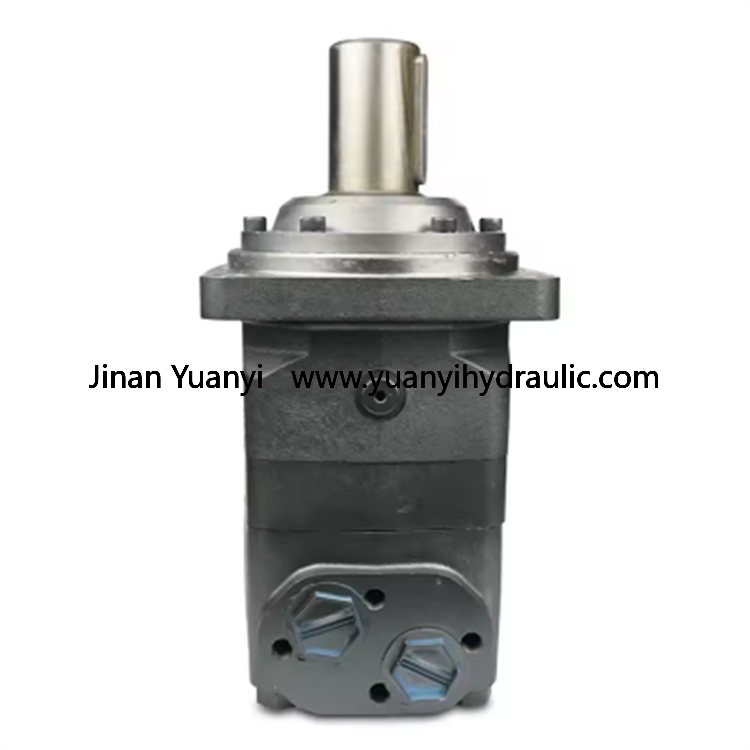

OMV315 OMV400 OMV500 OMV630 large torque orbit motor, OMV1000 Hydraulic Motor

Yuanyi hydraulic motor can substitue for:

Sauer-Danfoss orbit motor  OML/ OMM/OMP/ OMR/ OMH/ OMEW/ OMS/ OMT/ OMV

White orbit motor  WP/WG/WR/RS/DR/RE/CE/HB/WS/D9 series

Parker orbit motor  OMP/TC/TB/TE/TH/TF/TL/TG/OMS/OMT

Eaton Char Lynn orbit motor  J/JH/JS/2K/6K/J6K/10K

M+S orbit motor  MLHM/MP/MR/MH/MS/MT/MV

SAM orbit motor  BG/BR/BS/AR/HR/HT

Brevini orbit Motor  BG Series

Japen OPN ORB-GS Series

Order code:

Sauer Orbital Hydraulic Motor OMV series

Displacement:
315cc,400cc,500cc,630cc,800cc,1000cc
Flange:4: 4-Ø18 Square-flange Ø200, pilot Ø160×11
W: 4-Ø18 Wheel-flange Ø224, pilot Ø180×10
K6: 4--Ø14.2 Square-flange Ø162, pilot Ø127×11
K4: 4-Ø14.2 Square-flange Ø160, pilot Ø125×11
Output Shaft:A: Shaft Ø50 , parallel shaft with key 14×9×70
BD: Shaft Ø53.975, splined shaft 16-DP8/16
B: Shaft Ø53.975, splined key 16-DP8/16
C: Shaft Ø57.15, parallel shaft with key 12.7×12.7×57.15
T: Cone shaft Ø60, parallel key 16×10×32
T1: Cone shaft Ø60, parallel key 14.308×14.308×50.8
Q: Shaft Ø45, splined shaft 17Z*2.5×30P×5e
M: Shaft Ø45, parallel shaft with key 12×8×70
Y:  Shaft Ø45, parallel shaft with key 12×8×45
Ports and drain port:D: G1 Manifold 4×M12, G1/4
M: M33×2 Manifold 4×M12, M14×1.5
S: 1-5/16-12UN, 9/16-18UNF
G: G1,G1/4
M5: M33×2, M14×1.5
S1: 1-5/16-12UN(18),7/16-20UNF(12)


Application areas:
1) Conveyors
2) Metal working machine
3) Agriculture machines
4) Road building machines
5) Mining machinery
6) Food industries
7) Special vehicles
8) Plastic and rubber machinery
9) And more
