Product Description

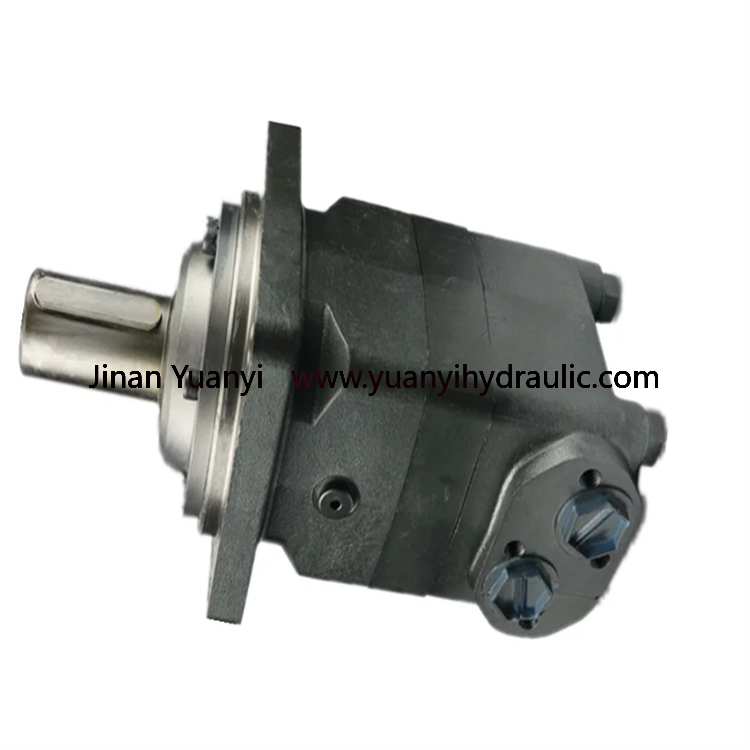

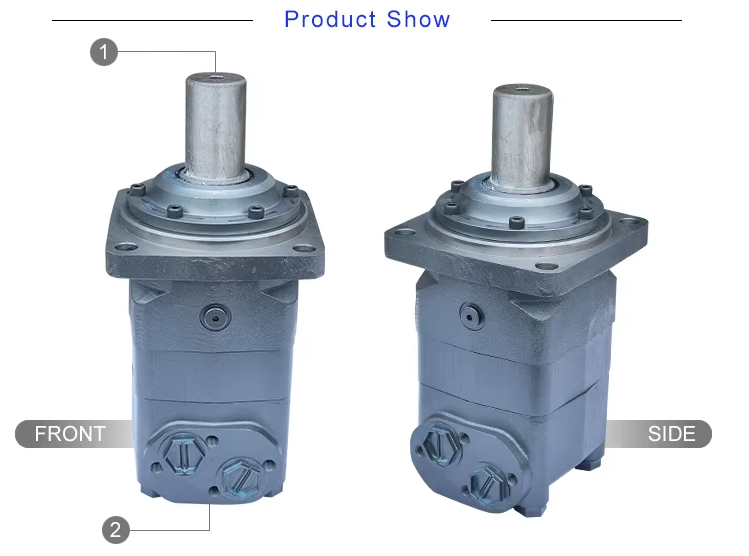

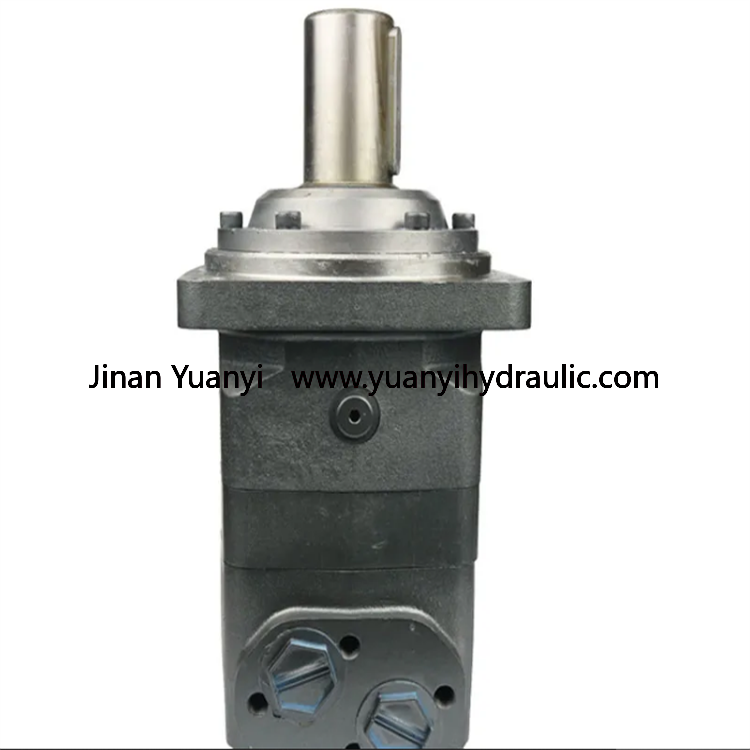

OMV315, OMV400, OMV500, OMV630, OMV800, OMV1000 Orbit Motor,Danfoss OMV Series Hydraulic Motor

Operational performance:

The Danfoss OMV motor achieves smooth operation within the full speed range,

Maintain stable operating torque within the speed range,

High starting torque ensures efficient performance


Design features:

Equipped with a high-pressure shaft seal design, the Danfoss OMV motor can withstand high return oil pressure

without the need for additional oil discharge pipes

Durable and compact structural design, combining durability and space efficiency

Provide high radial and axial load capacity to ensure long-term reliable performance


Application and adaptability:

Danfoss OMV motors are suitable for both open and closed circuit hydraulic systems

Compatible with multiple hydraulic oils, widely adaptable, suitable for various industrial scenarios


Efficiency and lifespan:

Efficient design, optimized energy utilization, and improved overall system performance

Even under harsh working conditions, Danfoss OMV hydraulic motors can still ensure a long service life

TypeOMVOMVOMVOMVOMV
OMVWOMVWOMVWOMVWOMVW
OMVSOMVSOMVSOMVSOMVS
Motor size315400500630800
Geometric displacementcm³ [in³]
314.5 [19. 19]400.9 [24.46]499.6 [30.49]629.1 [38.39]801.8 [48.93]
Max. speedmin- 1 [rpm]cont.510500400315250
int1)630600480380300
Max. torqueNm [lbf·in]cont.920 [8140]1180 [10440]1460 [12920]1660 [14690]1880 [16640]
int.1)1110 [9820]1410 [12480]1760 [15580]1940 [17170]2110 [18680]
Max. outputkW [hp]cont.42.5 [57.0]53.5 [71.7]53.5 [71.7]48.0 [64.4]42.5 [57.0]
int.1)51.0 [68.4]64.0 [85.8]64.0 [85.8]56.0 [75. 1]48.0 [64.4]
Max. pressure dropbar [psi]cont.200 [2900]200 [2900]200 [2900]180 [2610]160 [2320]
int.1)240 [3480]240 [3480]240 [3480]210 [3050]180 [2610]
peak2)280 [4060]280 [4060]280 [4060]240 [3480]210 [3050]
Max. oil flowl/mincont.160 [42.3]200 [52.8]200 [52.8]200 [52.8]200 [52.8]
[USgal/
min]int.1)200 [52.8]240 [63.4]240 [63.4]240 [63.4]240 [63.4]
Max. starting pressure with unloaded shaftbar [psi]
8 [116]8 [116]8 [116]8 [116]8 [116]
Min. starting torqueat max. press. drop cont. Nm [lbf·in]710 [6280]910 [8050]1130 [10000]1330 [11770]1510 [13360]
