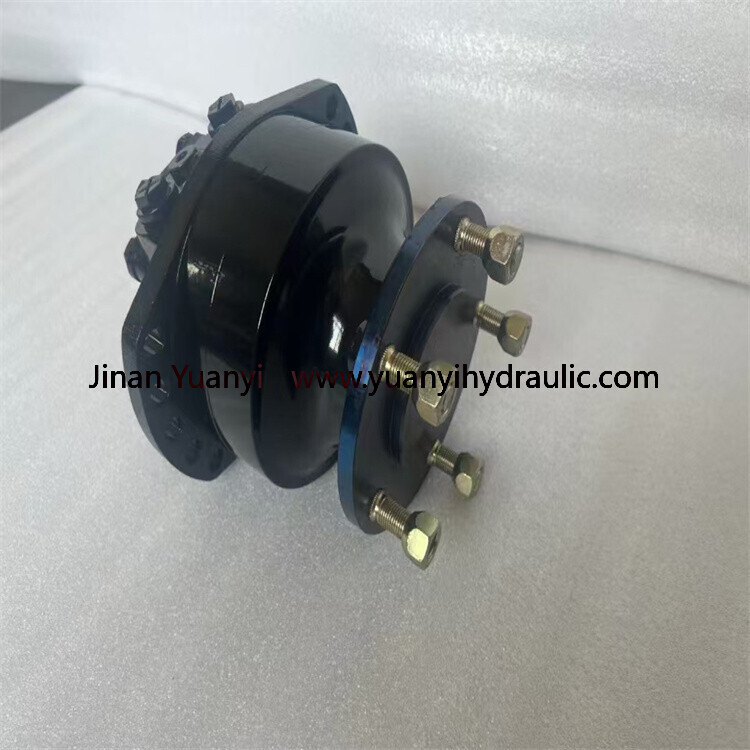

Name: Ms11 Mse11 Radial Piston Hydraulic Motor,MS11 Travel Motor
SKU: 0



Ms11 Mse11 Radial Piston Hydraulic Motor,MS11 Travel Motor

Ms11 Mse11 Radial Piston Hydraulic Motor,MS11 Travel Motor,MS18 Radial motor

Product Description

MS11
Displacement Group	7	8	9	0	1	2
Displacement (ml/r)	730	837	943	1048	1147	1259
Theoretical Torque at 10Mpa (N.m)	1161	1331	1499	1666	1824	2002
Rated Speed (r/min)	125	125	125	100	100	80
Rated Pressure (Mpa)	25	25	25	25	25	25
Rated Torque (N.m)	2400	2750	3100	3400	3750	4100
Max. Pressure (Mpa)	31.5	31.5	31.5	31.5	31.5	31.5
Max. Torque (N.m)	2950	3350	3800	4200	4650	5100
Speed Range (r/min)	0-200	0-195	0-190	0-185	0-180	0-170
Max. Power (kw)	Standard displacement is 50KW,variable displacement priority rotation 33KW,no priority is 25KW
