Product Description


GHM2 Hydraulic Gear Motor,GHM2R-9-E1 Hydraulic Motor

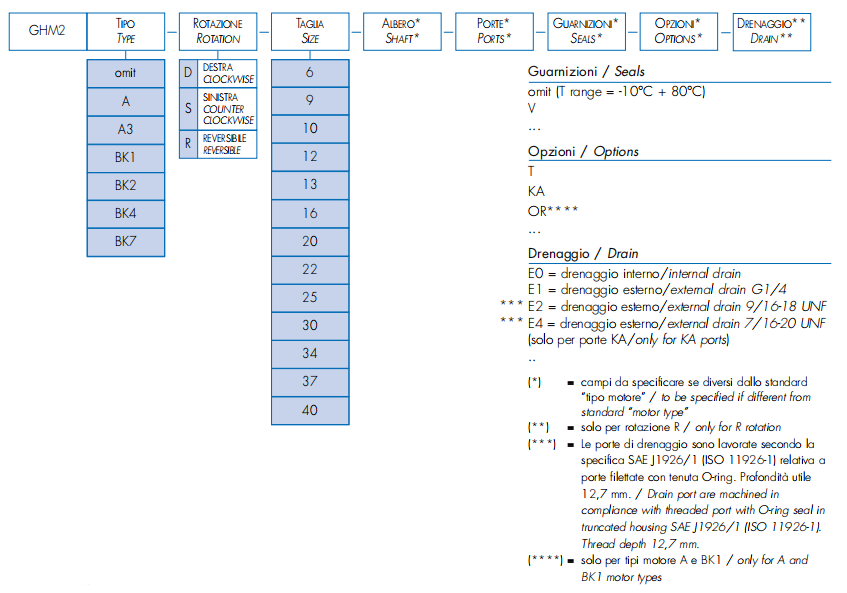

Marzocchi GHM2 series hydraulic motors are available in multiple models, including GHM2, GHM2-EO,

GHM2-TGHM2A, GHM2A-EO, GHM2A3, GHM2BK1, GHM2BK1-T, GHM2BK2, GHM2BK4 and GHM2BK7.

These motors are available in unidirectional and bidirectional types.


Unidirectional motors are available in displacements from 4.5 to 35.2 cc/rev, with a maximum continuous

inlet pressure of 250 bar, a continuous back pressure of 6 bar, a maximum peak inlet pressure of 290 bar,

and a maximum speed of 4000 rpm.


The displacement range of the bidirectional motor is 4.5 to 28.2 cc/revolution, the maximum continuous

 inlet pressure is also 250 bar, the continuous back pressure is 240 bar, the maximum peak inlet pressure

is 270 bar, and the maximum speed is also 4000 rpm. In addition, the bidirectional motor can withstand

a maximum drain line pressure of 6 bar.
