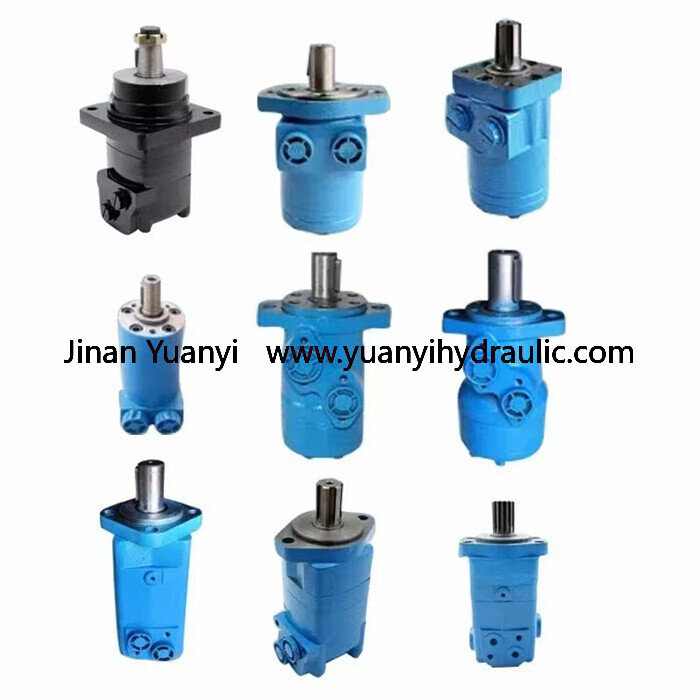

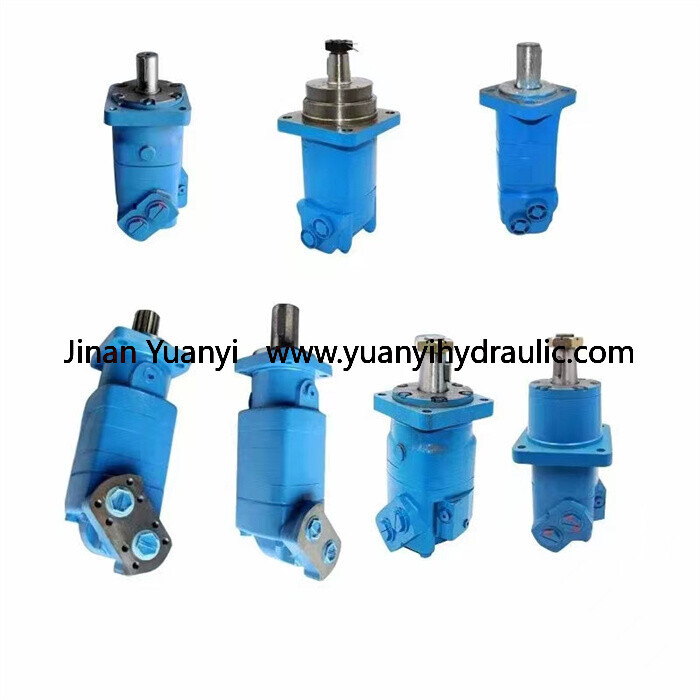

Eaton 2000 Series Orbit Hydraulic Motor, 2K-100 2k-130 Orbit Motor

Eaton spool valve motors increase flow and pressure, resulting in improved torque and efficiency compared to

spool valve motors. The product line includes standard, wheeled or bearingless configurations, with a range of

 shaft and port options and speed sensors to meet a wide range of application needs. Eaton 2000 Series Orbit

Motor is backed by a robust manufacturing system that ensures on-time delivery.

Eaton 2000 Series motors enable users to switch the displacement of the motor to deliver different speeds

with different torque without changing the input flow rate. An external three-way valve is required to switch

the pilot pressure port between signal pressure (HSLT) and low pressure (LSHT).

Two speed motors are available. Closed center shuttle with return line for closed circuit applications. With full

shifting on-the-fly capability, the 2:1 shift ratio (2000 Series) provides greater circuit flexibility in a compact and

 reliable package.

benefit:

One motor with two operating speeds and torque levels

Two selectable performance ranges in one motor unit

Application

Conveyors

Winches

Traction drives

Augers

Irrigation/utility cable reels
