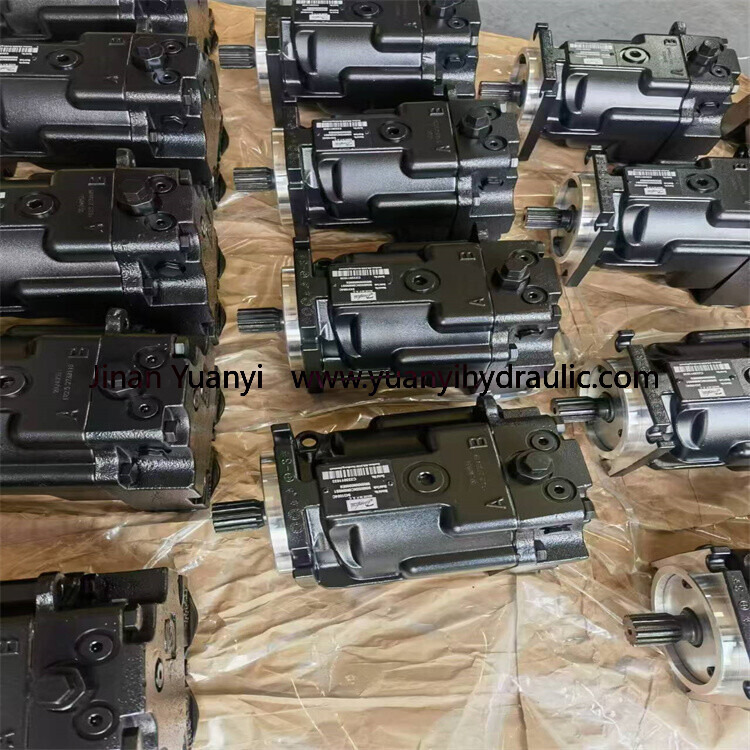

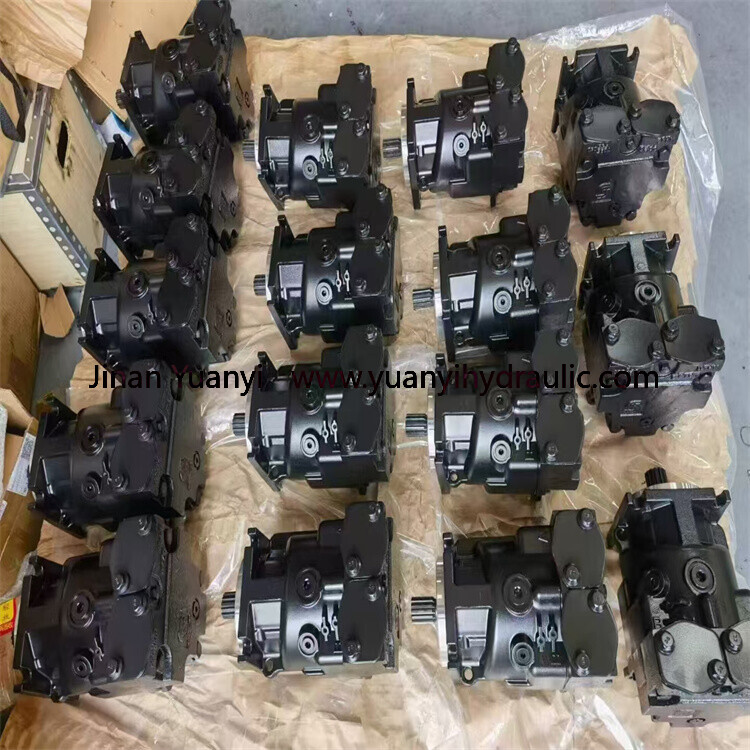

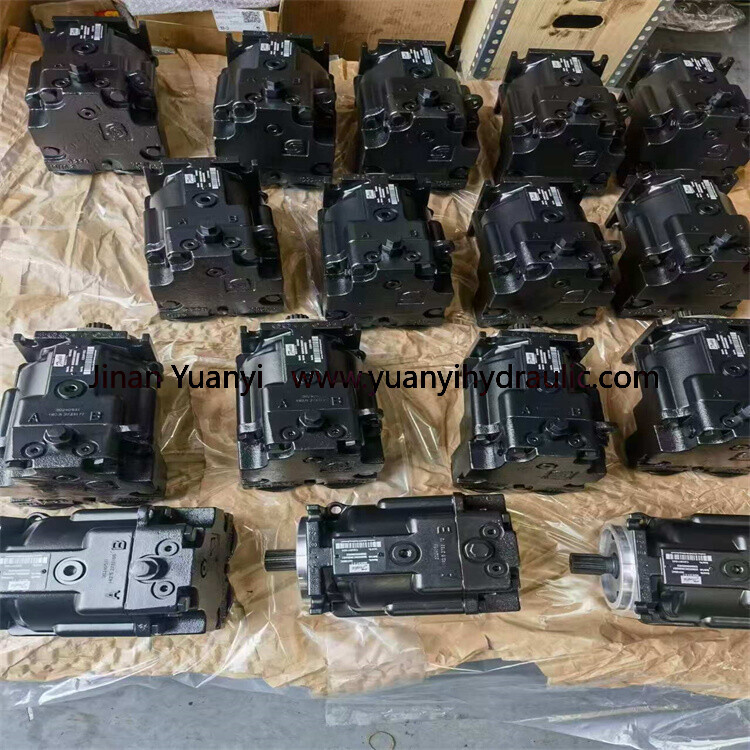

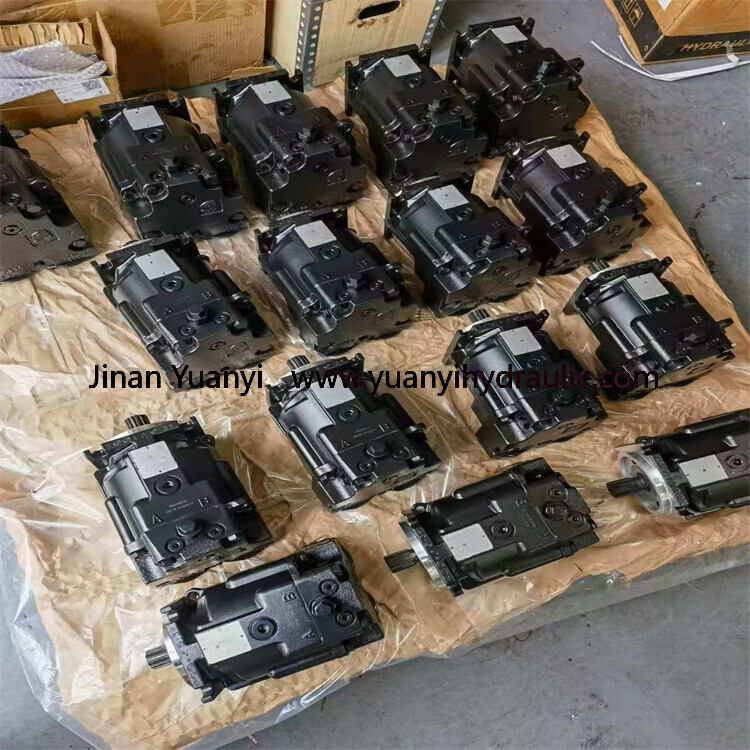

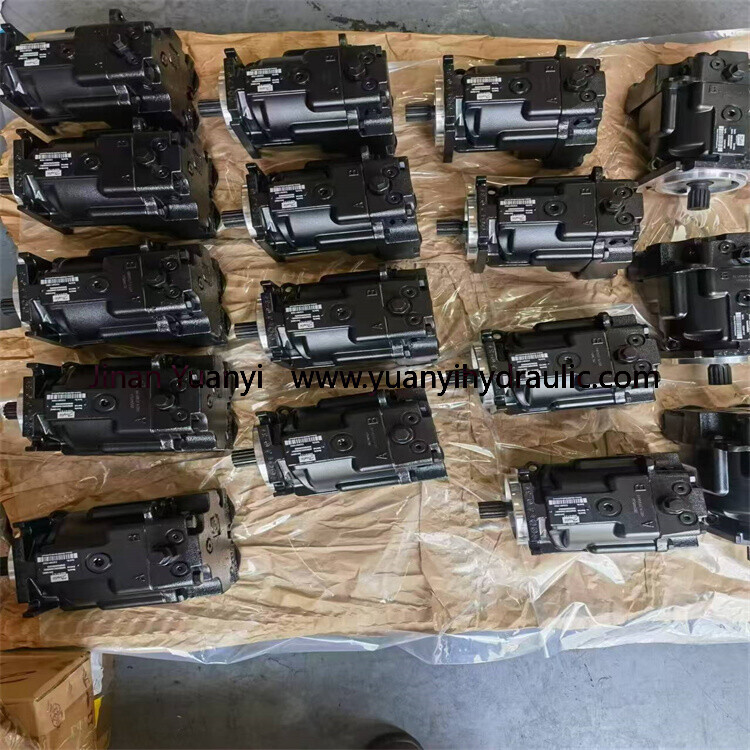

Name: 90 Series Motor,Sauer Danfoss 90M100 90M55 90M130 90M75 Hydraulic Motor
SKU: 0



90 Series Motor,Sauer Danfoss 90M100 90M55 90M130 90M75 Hydraulic Motor

Product Description

90 Series Motor,Sauer Danfoss 90M100 90M55 90M130 90M75 Hydraulic Motor

Series: Series 90 Axial Piston Motors

Brand:Danfoss

Place of Origin: Jinan, China

◇ Series 90 – advanced technology today

◇ Seven sizes of variable displacement pumps

◇ Five sizes of fixed displacement motors

◇ One variable displacement motor

◇ SAE and cartridge mount configurations

◇ Efficient axial piston design

◇ Proven reliability and performance

◇ Compact, lightweight

◇ Worldwide sales and service

Q: How to guarantee the same?

A: Before sending, I will take pictures. After confirmation, I send.

Q: When to ship?

A: Once getting payment then arrange.

Q: Import customs fee?

A: It depends on import country. I can make lower valve so that you can pay lower customs fee even no need to pay.

Dimension	Frame Size
Dimension	030	042	055	075	100	130
Displacement	maximum	cm3 in3	30 1.83	42 2.56	55 3.35	75 4.57	100 6.10	130 7.93
Displacement	minimum (MV)	cm3 in3	- -	- -	19 1.16	26 1.59	- -	- -
Rated Speed *	at max. disp. at min. disp. (MV)	min-1 (rpm) min-1 (rpm)	4200 -	4200 -	3900 4600	3600 4250	3300 -	3100 -
Maximum Speed *	at max. disp. at min. disp. (MV)	min-1 (rpm) min-1 (rpm)	4600 -	4600 -	4250 5100	3950 4700	3650 -	3400 -
Max. Attainable Speed*	at max. disp.	min-1 (rpm)	5000	5000	4700	4300	4000	3700
Theoretical Torque	at max. disp.	Nm/bar lbf•in/1000 psi	0,48 290	0,67 410	0,88 530	1,19 730	1,59 970	2,07 1260
Theoretical Torque	at min. disp. (MV)	Nm/bar lbf•in/1000 psi	- -	- -	0,88 530	1,19 730	- -	- -
Max. rated flow at max. disp.	Q max.	l / min gal / min	138 36	193 51	234 62	296 78	365 96	442 117
Max. corner power at max. disp.	p corner max.	kW hp	110 149	155 208	187 251	237 318	292 392	354 475
Mass moment of inertia of the int. rotating parts	J	kg m2 lb • ft2	0,0023 0.0546	0,0039 0.0926	0,0060 0.1424	0,0096 0.2280	0,0150 0.3560
