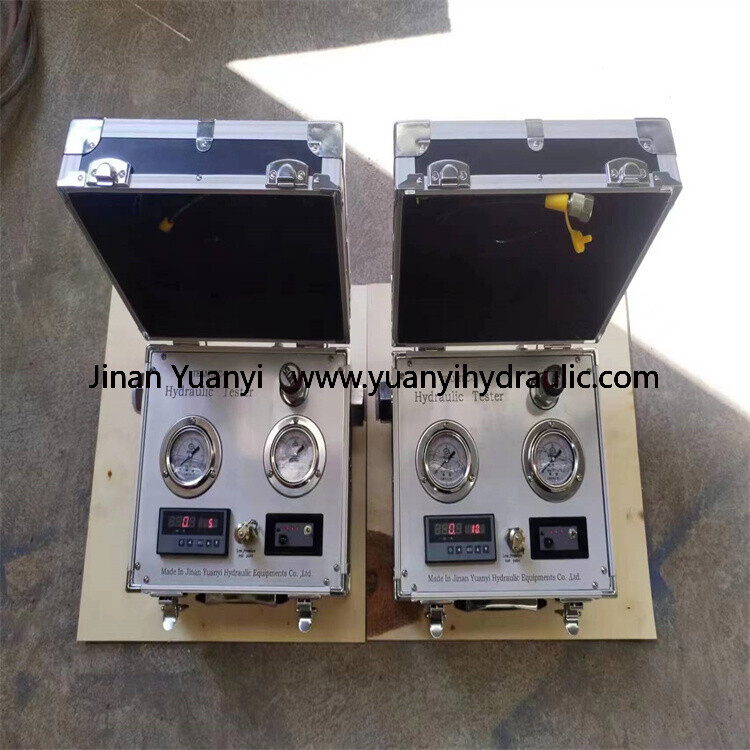

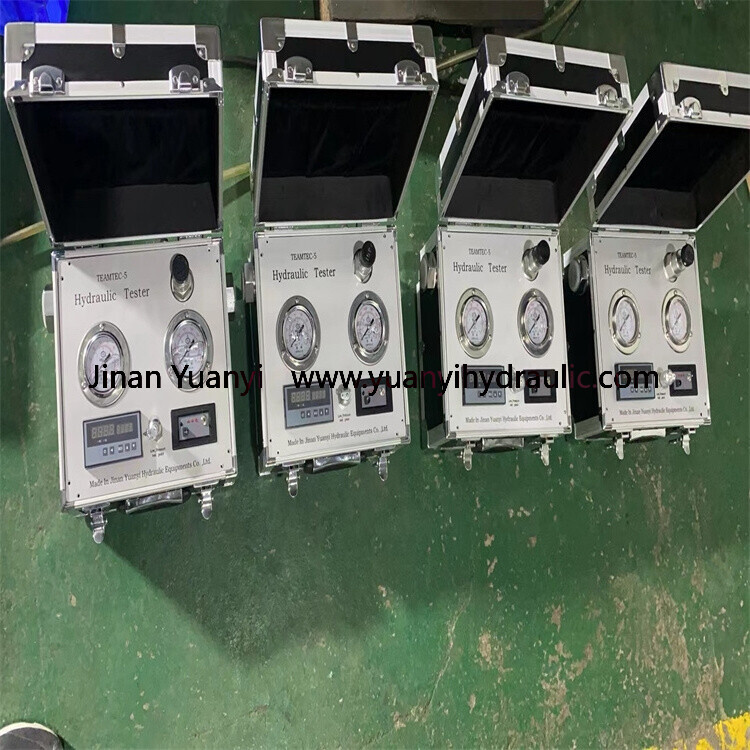

Portable Hydraulic Pump Flow and Pressure Checking Equipment, Digital Hydraulic Pump Flow Repairing Tester

  1) portable hydraulic tester high precision - full scale ± 1%.

    2) Portable hydraulic tester Turbine flow sensor - fast response, anti-pollution, low pressure loss.

    3) portable hydraulic tester platinum resistance temperature sensor - temperature fast, accurate, good stability.

    4) portable hydraulic tester flow and temperature display - using 4 LED digital tube display, free from low temperature limit, instantaneous flow 0.000-9999, breakpoint data to maintain 10 years.

    5) portable hydraulic tester pressure indicator - seismic pressure gauge, stable and overload capacity.

    6) portable hydraulic tester safety design - instrument reverse, can not afford pressure, power supply instructions.

    7) hydraulic tester easy to operate - can be measured at a point at the same time flow, pressure, temperature. Change the flow and temperature through the contact switch. Pressure valve adjustment intensity is light, loading smooth, fast and accurate. To ensure measurement accuracy, keep the temperature change within ± 3 degrees. Low pressure table through the pressure line can be measured system control pressure.

    8) Portable hydraulic tester wide range of applications - compact, light weight, can be pump test, the system on-line testing for a variety of mobile or fixed hydraulic system, components, rapid fault diagnosis

Portable Hydraulic Repairing Motor and Pump Tester,Hydraulic Pump Testing Equipments For Paver

Comprehensive Hydraulic System Testing Equipment,Hydraulic Motor and Pump Test Stand

Comprehensive Hydraulic Pump and Cylinder Test Stand For Repairing

Hydraulic test bench (hydraulic integrated test bed, hydraulic test bench, hydraulic pump test bench, hydraulic valve test

 bench, hydraulic motor test bench, hydraulic cylinder test bed, hydraulic multi-valve test bench, hydraulic hammer test

bench) Analog control, can also be designed according to customer requirements. Used in hydraulic components

manufacturing enterprises and hydraulic components maintenance testing units. You can try a variety of components

 (valves, pumps, double triple engineering machinery pumps, open closed pumps, proportional control pumps

Product Specifications

1. Hydraulic valve integrated test bed

The test bench can be measured hydraulic directional valve, pressure valve and flow control valve three types of

hydraulic control valve dynamic and static performance, equipped with CAT computer-aided test system. Test

scope, test items
