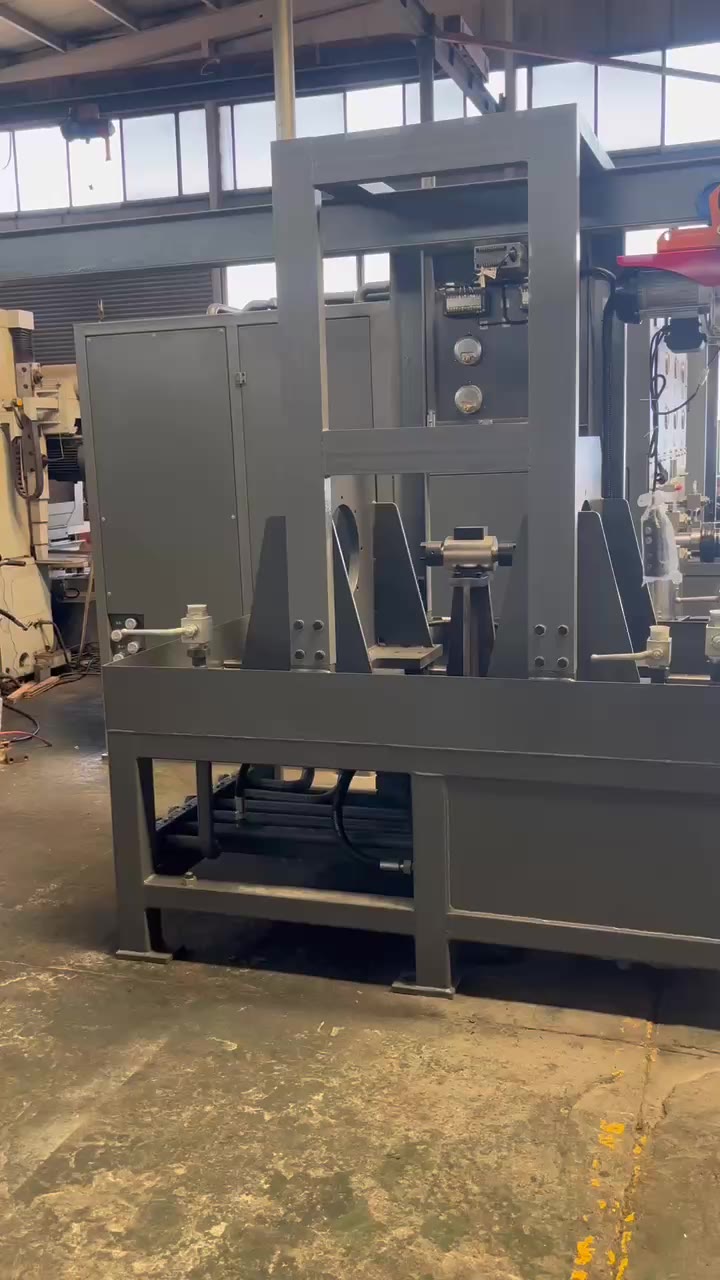

160KW 200KW 250KW Power Hydraulic Pump and Motor Test Bench,Digital Hydraulic  Test Stand

Hydraulic test bench maintenance

Hydraulic test bench maintenance can design and manufacture according to the need, into a comprehensive function of the test rig: comprehensive test-bed hydraulic components.Or design and manufacture into a single function test bench: hydraulic pump test rig, hydraulic motor test rig, hydraulic valve test rig, oil cylinder test stand.Also can design and manufacture according to industry special needs, such as drivers hydraulic pump test-bed maintenance, hydraulic hammer test rig, etc.Users can choose according to need a variety of configurations, such as proportional control system, digital display system, variable frequency speed regulation system and computer measurement and control system, etc.

Hydraulic maintenance test bed for hydraulic pump, motor, valve repair enterprise product factory efficacy and equipment for the production of a hydraulic system fault.Products for the company to develop design and production, can according to customer needs in any combination.

he hydraulic pump/motor comprehensive test bed absorbs the advanced experience of European and American countries, and combines the actual demand of domestic hydraulic pump and motor test to develop a powerful, advanced and efficient test bed, the equipment has the characteristics of simple operation, stable performance, high degree of automation, strong expansibility and so on.Scope of application: hydraulic axial piston pump, piston motor; Hydraulic gear pump; Hydraulic vane pump. Technical parameters: Main motor power: 110KW (customized according to user requirements); Test pressure: 0-315bar range stepless adjustable; Main motor speed: 0-3000 r/min stepless adjustable; Test flow: 10-360 L/min range can be accurately measured; The number of pumps and motors to be tested: single or double; Oil filling pressure: 0-50bar adjustable; Oil filling flow: 0-60 L/min adjustable; Test oil temperature: -20 ~ 1200C, test oil temperature is adjustable; Oil filtration accuracy: < 20μm, equivalent to ISO4406 class 16/13 or NAS7.

Widely Application:

Piston pumps are widely used in high-pressure, high-flow, high-power hydraulic systems and where flow adjustment is required, such as construction machinery, mining machinery, marine machinery, transportation handling machinery, and construction machinery.
