Product Description

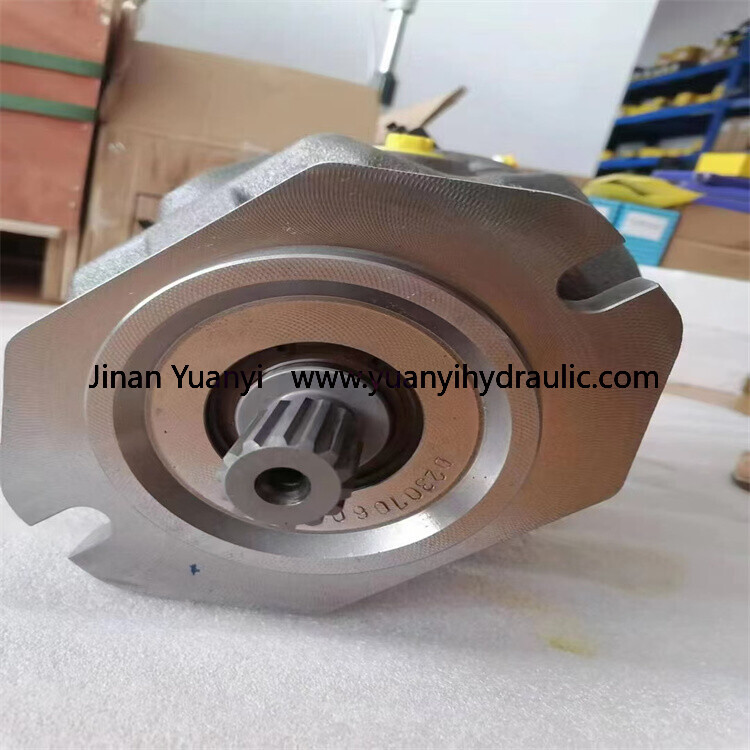

Rexroth A10VO100 A10VSO100DFR Variable Hydraulic Pump, A10VO100 Piston Pump

Rexroth A10VO oil pump features:

— Axial piston variable displacement pump with swash plate structure for hydraulic open circuit

— The flow rate is proportional to the driving speed and displacement, and can be adjusted by adjusting the swash plate

inclination

— ISO standard mounting flange

— Flange connection conforms to SAE metric system

— There are two casing drain holes

— Excellent suction performance

— Allows continuous operating pressure up to 280 bar

— Low noise

— long service life

— The drive shaft can withstand axial and radial loads

— High power / weight ratio

— Wide range of multiple control forms

— Short control response time

— Adopt through-shaft structure, can be used in multi-loop system

Detailed reference of model selection:

Example model: A10VSO18DFR1 / 31R-PPA12N00

A10VS → Swash plate variable pump, this series is used for industrial drive, nominal pressure 28MPa, maximum pressure 35MPa;

O → Operating mode, this series is used for open loop system;

18 → Displacement specifications This model is 18m3 (other common specifications such as 10, 28, 45, 71, 100, 140 and other

displacements)

DFR1 → control mechanism, (DG means two-position control direct drive; DR (G) meter; remote control for pressure control; DFR

(1)--pressure / flow control; With 1 finger, there is no small hole in the X oil circuit; DFLR-- pressure / flow / power control;

FHD--flow control, with pressure control related to pilot pressure;FE1 -- flow electronic control; DFE1--pressure / flow

electronic control; ED-- electro-hydraulic pressure control);

31 → Product series

R → direction of rotation (R clockwise, L counterclockwise)

P → Seal (P refers to NBR with FKM shaft seal (butadiene rubber, conforming to DIN ISO 1629), V refers to FKM (foam rubber,

conforming to DIN ISO 1629))

P → shaft end (P refers to straight shaft with key DIN 6885, S refers to spline shaft SAE, R refers to spline shaft SAE (higher

through-shaft drive torque));

A → mounting flange hole (A means ISO 2 hole, B means ISO 4 hole);

12 → Work port connection, {pressure port B, suction port S} in the opposite direction, SAE port metric fixing screws;

N00 → through shaft, (N00 without through shaft drive; with through shaft drive with axial pump, gear pump back to radial piston

pump KB2, K51, KB3, K01, etc.)

Conventional model:

A2FO250/60R-VPB05 9424894

A2FO10/61R-PBB06 9610682

A2FO12/61R-PAB06 9420472 ,A2FO12/61R-PBB06 9610683

A2FO16/61R-PAB06 9411113 ,A2FO16/61R-PBB06 9411121

A2FO23/61R-PAB05 9427223 ,A2FO23/61R-PBB05 9610684

A2FO28/61R-PAB05 9425164 ,A2FO28/61R-PBB05 9610685

A2FO32/61R-PAB05 9410193 ,A2FO32/61R-PBB05 9410198

A2FO45/61R-PZB05 9411585

A2FO56/61R-PAB05 9425190 ,A2FO56/61R-PBB05 9610686

A2FO63/61R-PBB05 9408552

A2FO80/61R-PAB05 9424687 , A2FO80/61R -PBB05 9610687

A2FO90/61R-PAB05 9408467 ,A2FO90/61R-PBB05 9408472

A2FO107/61R-PAB05 9423259 ,A2FO107/61R-PBB05 9438282

A2FO125/61R-PAB05 9409641 ,A2FO125/61R-PBB05 9409642 ,A2FO160/61R-PAB05 9422192

A2FO160/61R-PBB05 9610688 ,A2FO180/61R-PAB05 9409371 ,A2FO180/61R-PBB05 9409358

A2FO200/63R-PAB05 2011993

German Rexroth piston pump A4VSO 40 displacement:

A4VSO40DR / 10R-PPB13N00

A4VSO40LRG / 10R-PPB12N00

German Rexroth piston pump A4VSO 71 displacement:

A4VSO71DR / 10R-PPB13NOO, A4VSO71DR / 22R-PPB13N00, A4VSO71DR / 30R-PPB13NOO, A4VSO71LRG / 10R-PPB12N00

German Rexroth piston pump A4VSO 125 displacement:

A4VSO125DR / 30R-PPB13NOO, E-A4VSO125DR / 30R-PPB13N00

German Rexroth piston pump A4VSO 180 displacement:

A4VSO180DFR / 22R-PPB13N00, A4VSO180DR / 30R-PPB13N00, A4VSO180EO2 / 30R-PPB13N00, A4VSO180LR2 / 30R

E-A4VSO180DR / 30R-PPB13NOO

A4VSO250A, 4VSO355, A4VSO500

E-A4VSO355DR / 30R-PPB13NOO

German Rexroth piston pump A10VSO 10 displacement:

A10VSO10DR / 52R-PPA14N00

German Rexroth piston pump A10VSO 18 displacement:

A10VSO18DR / 31R-PPA12N00, A10VSO18DR / 31R-PPA12K01, A10VSO18DFR1 / 31R-PPA12N00, A10VSO18DFR1 / 31R-PPA12K01

A10VSO18DFR / 31R-PPA12N00A, 10VSO18DFLR / 31R-PPA12N00A, 10VSO18DG / 31R-PPA12N00, A10VSO18DRG / 31R-PPA12N00

A10VSO18DFE1 / 31R-PPA12N00A, 10VSO18FHD / 31R-PPA12N00, A10VSO18ED / 31R-PPA12N00

German Rexroth piston pump A10VSO 28 displacement:

A10VSO28DR / 31R-PPA12N00, A10VSO28DR / 31R-PPA12K01, A10VSO28DFR1 / 31R-PPA12N00A, 10VSO28DFR1 / 31R-PPA12K01

A10VSO28DFR / 31R-PPA12N00, A10VSO28DFLR / 31R-PPA12N00, A10VSO28DG / 31R-PPA12N00A, 10VSO28DRG / 31R-PPA12N00

A10VSO28DFE1 / 31R-PPA12N00, A10VSO28FHD / 31R-PPA12N00, A10VSO28ED / 31R-PPA12N00

German Rexroth piston pump A10VSO 45 displacement:

A10VSO45DR / 31R-PPA12N00, A10VSO45DR / 31R-PPA12K01, A10VSO45DFR1 / 31R-PPA12N00, A10VSO45DFR1 / 31R-PPA12K02

A10VSO45DFR / 31R-PPA12N00, A10VSO45DFR / 31R-PPA12K01, A10VSO45DFR / 31R-PPA12K26A, 10VSO45DFLR / 31R-PPA12N00

A10VSO45DG / 31R-PPA12N00, A10VSO45DRG / 31R-PPA12N00, A10VSO45DFE1 / 31R-PPA12N00, A10VSO45FHD / 31R-PPA12N00

A10VSO45ED / 31R-PPA12N00

German Rexroth piston pump A10VSO 71 displacement:

A10VSO71DR / 31R-PPA12N00, A10VSO71DR / 31R-PPA12K01, A10VSO71DFR1 / 31R-PPA12N00, A10VSO71DFR1 / 31R-PPA12K02

A10VSO71DFR / 31R-PPA12N00, A10VSO71DFR / 31R-PPA12K27, A10VSO71DFLR / 31R-PPA12N00, A10VSO71DG / 31R-PPA12N00

A10VSO71DRG / 31R-PPA12N00, A10VSO71DFE1 / 31R-PPA12N00, 10VSO71FHD / 31R-PPA12N00, A10VSO71ED / 31R-PPA12N00

German Rexroth piston pump A10VSO 100 displacement:

A10VSO100DR / 31R-PPA12N00A, 10VSO100DR / 31R-PPA12K01A, 10VSO100DFR1 / 31R-PPA12N00, A10VSO100DFR1 / 31R-PPA12K01

A10VSO100DFR / 31R-PPA12N00, A10VSO100DFLR / 31R-PPA12N00, A10VSO100DG / 31R-PPA12N00, A10VSO100DRG / 31R-PPA12N00

A10VSO100DFE1 / 31R-PPA12N00, A10VSO100DFE1 / 31R-PPA12K02A, 10VSO100FHD / 31R-PPA12N00

German Rexroth piston pump A10VSO 140 displacement:

A10VSO140DR / 31R-PPB12N00, A10VSO140DR / 31R-PPB12K01, A10VSO140DFR1 / 31R-PPB12N00, A10VSO140DFR1 / 31R-PPB12K01

A10VSO140DFR / 31R-PPB12N00, A10VSO140DFLR / 31R-PPB12N00, A10VSO140DG / 31R-PPB12N00, A10VSO140DRG / 31R-PPB12N00

A10VSO140DFE1 / 31R-PPB12N00, A10VSO140DFE1 / 31R-PPB12N002A, 10VSO140FHD / 31R-PPB12N00, A10VSO140ED / 31R-PPB12N00


Payment term:


1. T/T: 30% deposit by T/T, 70% balance by T/T before shipment


2. L/C at sight


Trade term: EXW or FOB Ningbo/Shanghai


Packing details:


1Yuanyi Brand, Neutral or Customer’s requires label


2Neutral carton or same as the Customer’s requires, export standard carton


3All cartons should be packed into the pallets more carefully.


4All of the productions are inspected carefully one by one by QC before delivery.


Delivery time:


We have huge quantity of inventory for complete pumps, kits and some pare pats, so the leading time is within 3days if have inventory. If haven’t, within 5days if the quantity is less than 300pcs.


It depends on the quantity ordered.


Min. Order:


*If the model is in common or the production are in our stock warehouse, No MOQ for stocking production.


* Larger quantity, price will be more favorable.
