Product Description

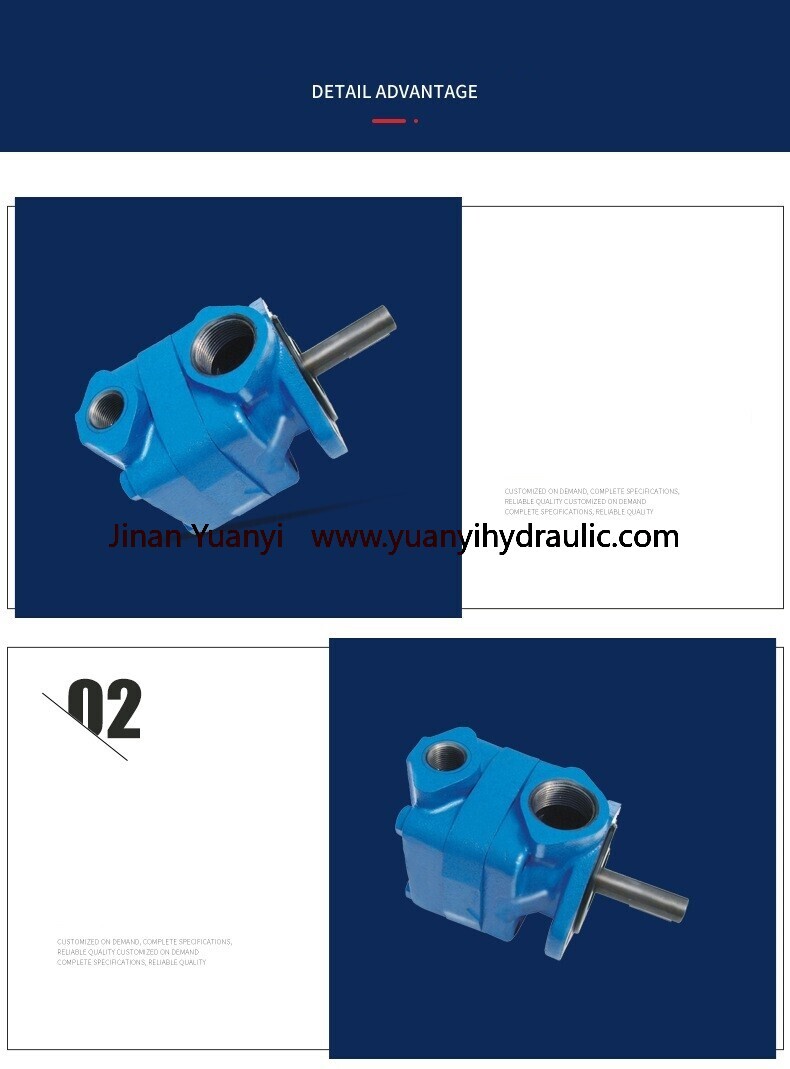

Vickers VQ Vane Pump,20VQ 25VQ 35VQ 45VQ Hydraulic Pump

Vickers VQ Vane Pump The oil flow rate in all pumps is


Formed in the movement, the movement mainly includes the stator, rotor,


Ten blades and unique side and support plates. bimetalflexible


Side plates are located on each side of the rotor, with their bronze sides facing the rotor.


Its steel surface faces the support plate. Two cavities in each support plate


Maintain high-pressure oil to act on the flexible side plates to achieve flexible side plates


Hydraulic balance and ensure optimal clearance with the rotor.





Performance:


Due to maximum power and size, high efficiency, maintainability and economy


combination of features, Vickers’ “high output” pumps are used throughout industry


is unique.





Durability:


Vickers high speed and high pressure pumps give greater durability. it


Being able to do hard work is already found in the latest giant earthmoving equipment.


Bei Shang confirmed.

Single Pump  VQ pumpDelivery Us gpm
@ 1200 r/min
7 bar (100 psi)		Displacement
cm3/r (in3/r)		Max.
r/min		Max.
bar (psi)		Typical del.
L/min
(US gpm)
@ max. speed
& pressure		Typical input kW(hp)
@ max. speed & pressure		Weight                 kg (lb)
20VQ518,0 (1.10)2700210 (3000)42,3 (11)17,9 (24)11,8 (26)
827,4 (1.67)2700210 (3000)65,4 (17)26,1 (35)
1136,4 (2.22)2700210 (3000)88,5 (23)35,4 (47.5)
1239,5 (2.41)2700160 (2300)98,1 (25.5)28,4 (38)
1445,9 (2.80)2700140 (2000)115,4 (30)29,1 (39)
