Product Description

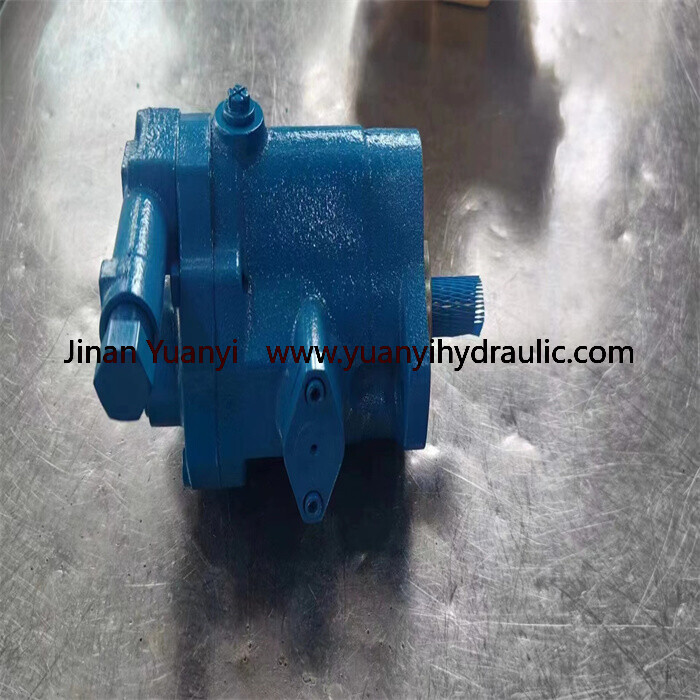

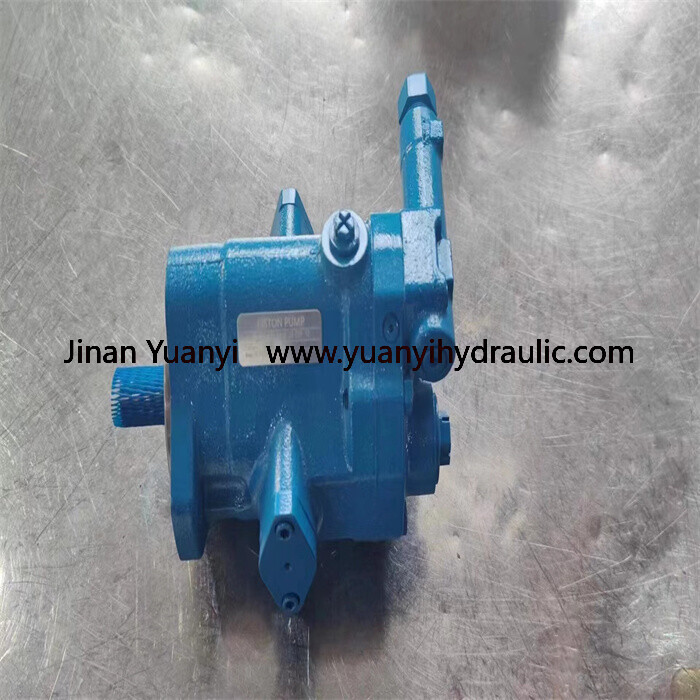

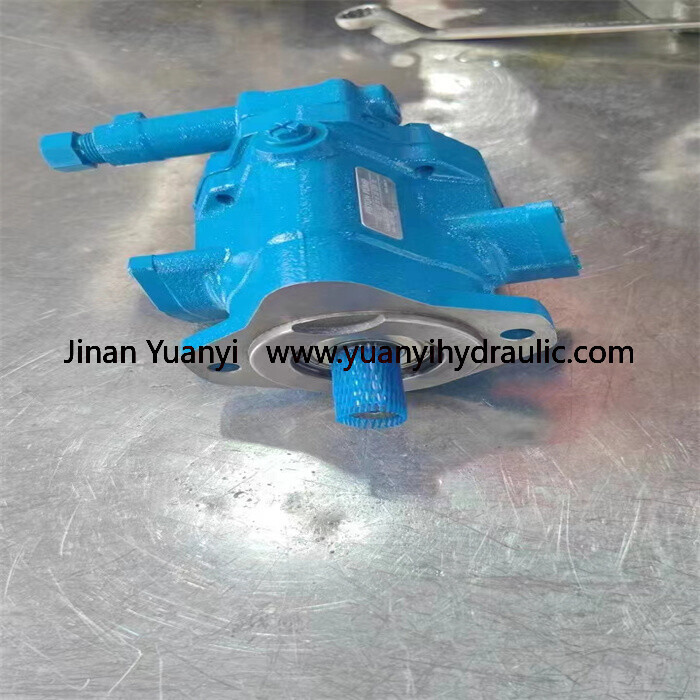

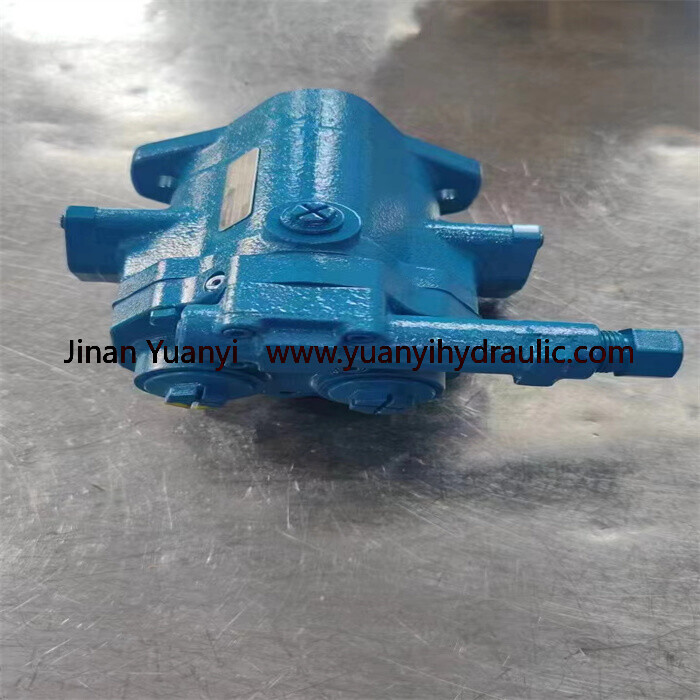

Vickers PVQ Series Variable Piston Pump,PVQ10,PVQ13,PVQ16,PVQ20,PVQ25,PVQ32 Hydraulic Pump

PVQ10,PVQ13,PVQ16,PVQ20,PVQ25,PVQ32,PVQ40,PVQ45,PVQ63 PUMP


Variable low noise series for industrial use


Displacement: 10.5-45.1cm3/r


Speed: 180 r/min


Maximum pressure: 186-210bar

vickers pvq series variable piston pump is a straight-axis variable pump with 9 specifications, which relies on pressure to control variables. A variety of control options are available, providing maximum working flexibility. Or flow compensator PVQ piston pump operates with very low noise and can meet today’s demanding industrial conditions. The noise level of each pump is close to or lower than that of the motor driving the pump. The noise is reduced by a patented timing configuration that also results in very small pressure “pulsations” in the output flow. This allows the noise in systems using PVQ plunger pumps to be reduced as well.

Model SeriesMaximum Geometric
Displacement
cm3/r (in3/r)		Rated Speed
r/min		Maximum Pressure
bar (psi)
PVQ1010,5 (0.643)1800210 (3000)
PVQ1313,8 (0.843)1800140 (2000)
PVQ1616,0 (0.976)1800210 (3000)
PVQ2021,1 (1.290)1800210 (3000)
PVQ2525,2 (1.540)1800210 (3000)
PVQ3232,9 (2.010)1800140 (2000)
PVQ4041,0 (2.500)1800210 (3000)
PVQ4545,1 (2.750)1800186 (2700)
PVQ6363,0 (3.844)1800210 (3000)
