Product Description


Rexroth A11VLO130,A11VLO145,A11VLO190,A11VLO260 Variable Hydraulic Piston Pump

Characteristic

The A11VLO series pump is a variable displacement axial piston pump with a swashplate design designed for hydrostatic drive in open circuit hydraulic systems.

Designed specifically for mobile applications and excels at delivering reliable hydraulic power.

Operating under self-priming conditions or with the optional built-in charge pump ensures efficient tank pressurization.

A11VLO offers a wide range of control options to easily meet different application needs.

 Its power control options are externally adjustable, allowing fine-tuning even during operation.

Adopts through-shaft drive, seamlessly integrating gear pump and axial piston pump, providing 100% through-shaft drive.

The output flow rate of the A11VLO piston pump varies infinitely between maximum and minimum values, directly related to drive speed.

A11VLO Hydraulic Piston Pump

SizeA11VLO Pump130145190260
DisplacementVg maxcm3130145193260

Vg mincm30000
Speednmaxrpm2500250025002300
maximum at Vg max
maximum at Vg £ Vg max

nmax1rpm2500250025002300
Flowqv maxl/min325363483598
at nmax and Vg max







Power atPmaxkW190211281281
qv max and Δp = 350 bar
Torque atTmaxNm72480810751448
Vg max and Δp = 350 bar







Rotary stiffnessZ shaftNm/rad302495302495346190686465

P shaftNm/rad312403312403383292653835

S shaftNm/rad236861236861259773352009

T shaftNm/rad––301928567115
Moment of inertiaJTWkgm20.03370.0360.05770.0895
for rotary group
Angulararad/s210500900068004800
acceleration, max.
Filling capacityVl2.92.93.84.6
Mass (approx.)mkg7273104138

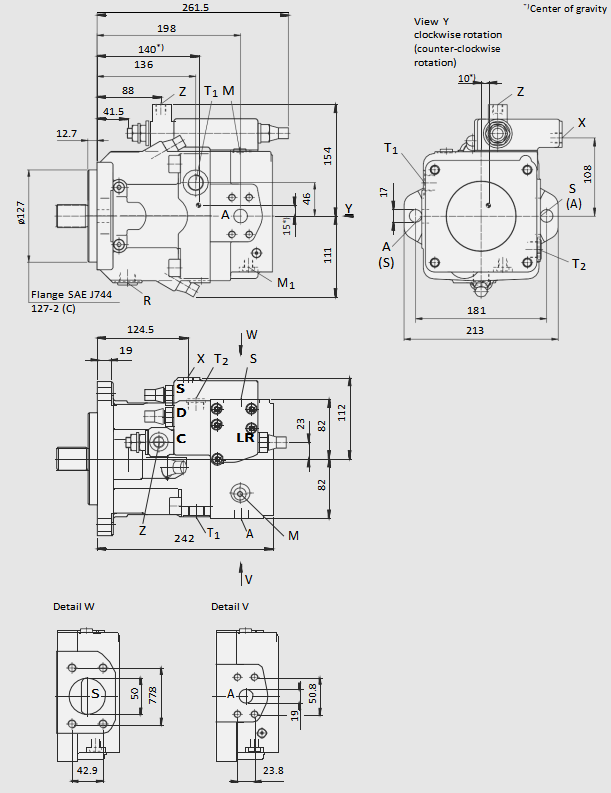

A11VO95LRDS - 副本.jpg



a11vo95泵 - 副本.jpg
