Product Description

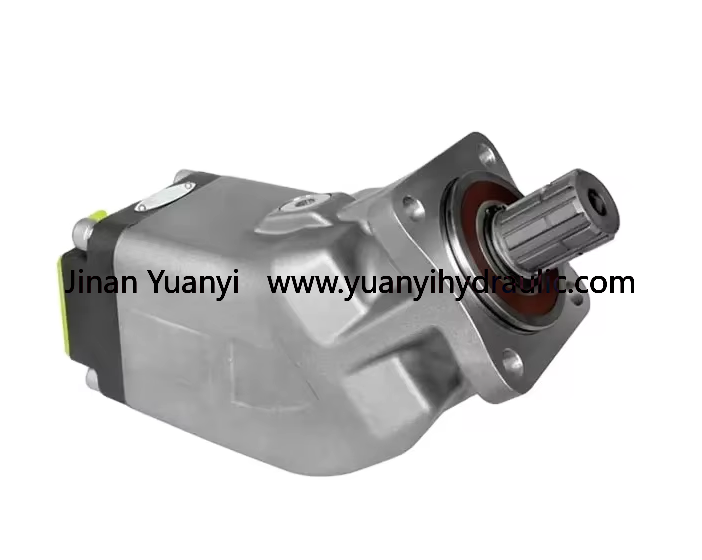

A17FO045 A17FO063 A17FO080 A17FO107 Piston Pump,A17FO Series Hydraulic Bent Axial Pump

A17FO is a fixed pump with an axial tapered piston rotary group in bent-axis design for hydrostatic drives in open circuits. The pump has been especially designed for use in commercial vehicles, e.g. street tippers, dump trucks, HGV loading cranes, tankers,municiple vehicles. The flow is proportional to the drive speed and the displacement.

Model
Displacement(ml/rev)
Rated Pressure(Bar)
Max Pressure(Bar)
Max Speed(rpm)
Weight(kg)
A17FO023
23
280
350
5000
10
A17FO032
32
280
350
4500
12
A17FO045
45
280
350
4000
14
A17FO063
63
280
350
3500
18
A17FO080
80
280
350
3200
22
A17FO107
107
280
350
2800
26
